Supermicro 7126T-S6

Starting At $2759 $1759

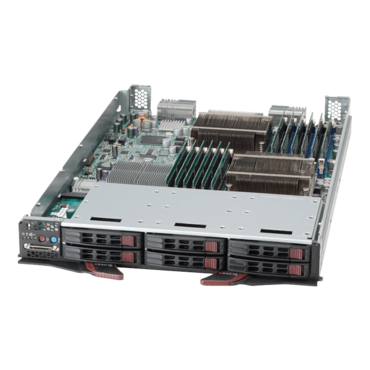

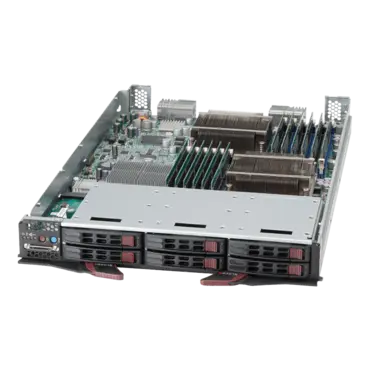

The SBI-7126T-S6 SuperBlade® offers enhanced system computing density leveraged from years of rackmount server design experience. Applying Supermicro's application-optimized engineering philosophy, each SuperBlade® module delivers true server functionality including two Xeon 5500 series processors, and supports six 2.5" SAS/SATA hard drives.

Based on Supermicro SBI-7126T-S6 processor blade
Up to 2 Intel® Xeon® 5500 series socket 1366 dual or quad-core processors w/ up to 6.4 GT/s QPI
Up to 96GB DDR3-1333 ECC registered memory
Integrated Matrox G200eW graphics
Up to 6 SAS/SATA hot-swap 2.5" hard drives
RAID Levels 0, 1, 10 capabilities
Dual GbLAN, Serial/USB/Video & KVM Connector, optional AOC-IBH-XDD InfiniBand Dual ports 4x DDR 20Gbps Mezzanine HCA, and more...

Special Offers

<span>$1000 Off</span> Supermicro SuperBlade® 7126T-S6

$1000 Off Supermicro SuperBlade® 7126T-S6 $1000 Off a Supermicro SuperBlade® 7126T-S6! Price shown reflects savings. (Added to the shopping cart automatically.) Promotion Expires: 1/31/2021 or while supplies last.

Ready to Assemble! We have all the components of this configurator in stock and ready to assemble right away. You can expect shipment within 5-6 business days after order approval. Promotion Expires: 1/31/2021 or while supplies last.

ONE CONFIGURATOR - ENDLESS POSSIBILITIES

CUSTOMER CARE

Warranty

zoom

AVA Basic (2-Year Labor / 1-Year Parts)

AVA Bronze (3-Year Labor / 2-Year Parts) (+$40)

AVA Silver (Lifetime Labor / 3-Year Parts) (+$150)

AVA Gold (Lifetime Labor / 3-Year Parts / 1-Year Return Shipping OR Advanced Part Replacement) (+$260)

AVA Platinum (Lifetime Labor / 4-Year Parts / 2-Year Return Shipping OR Advanced Part Replacement) (+$380)

AVA Titanium (Lifetime Labor / 5-Year Parts / 3-Year Return Shipping OR Advanced Part Replacement) (+$580)

Previous Internal Components Next Accessories

Show Current Configuration

Proudly Built and Supported in the U.S.A.

Product SKUs
SBI-7126T-S6	Processor Blade SBI-7126T-S6 (Black)
Motherboard
Super B8DT6
Processor/Cache
CPU	Dual 1366-pin LGA Sockets Supports up to two Intel® 64-bit Xeon® processor(s) of the same type below: Intel® Xeon® Processor X5600/E5600/L5600 Series (Westmere) 40W - 95W Intel® Xeon® Processor X5500/E5500/L5500 Series (Nehalem-EP) 38W - 95W
QPI	up to 6.4 GT/s
System Memory
Memory Capacity	12x 240-pin DIMM slots Supports up to 192 GB 1333 / 1066 / 800MHz DDR3 ECC Registered memory Supports up to 48 GB 1333 / 1066 / 800MHz DDR3 ECC Unbuffered memory Memory Mirroring supported
Memory Type	1333 / 1066 / 800MHz ECC Registered / ECC Unbuffered DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes	1GB, 2GB, 4GB , 8GB , 16GB
Memory Voltage	1.5 V and 1.35 V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory) Supports Intel® x4 and x8 Single Device Data Correction (SDDC)
On-Board Devices
Chipset	Intel® 5500 (Tylersburg) chipset ICH10R + IOH-24D
InfiniBand Support	4x QDR / DDR (40/20Gb/s) InfiniBand mezzanine HCA (Optional)
SAS	Broadcom SAS2 2008 RAID 0, 1, 10 support Optional: AOC-SAS2-RAID5-KEY for RAID 5 support
IPMI	Support for Intelligent Platform Management Interface (IPMI) v.2.0 via Chassis Management Module (CMM)
Network Controllers	Intel® 82576 Dual-Port Gigabit Ethernet Intel® I/OAT 3 support for fast, scaleable, and reliable networking VMDq support for better performance of virtualization
Super I/O	Winbond 83527HF chip
Clock Generator	CK505 chip
System BIOS
BIOS Type	32Mb SPI Flash EEPROM with AMI® BIOS
BIOS Features	Plug and Play (PnP) PCI 2.2 ACPI up to 3.0 USB Keyboard support
Dimensions
Height	11.32" (288 mm)
Width	1.67" (42.4 mm)
Depth	18.9" (480mm)
Weight	8.6 lbs (3.9 kg)
Available Colors	Black
Front Panel
Buttons	Power On/Off button KVM button
LEDs	Power LED UID / KVM LED Network Activity LED Fault LED
Connector	SUV (Serial/USB/Video) & KVM Connector
Drive Bays
Hot-swap	6x 2.5" SAS/SATA Hot-swap drive bays
Input / Output
KVM	1 Front Connector for Supermicro KVM Card
Operating Environment / Compliance
Environmental Spec.	Operating Temperature: 10°to 35°C (50°to 95°F) Non-operating Temperature: -40°to 70°C (-40°to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5 to 95% (non-condensing)
Electromagnetic Compatibility (EMC)
United States / Canada	FCC- Emissions (US) Verification
Europe	EN55022 - Emissions EN55024 - Immunity EN61000-3-2 - Harmonics EN61000-3-3 - Voltage Flicker CE - EMC Directive 89/336/EEC
Safety Compliance
United States / Canada	UL60950-1 - CSA/CUL 60950-1
Europe	EN60950-1, CE - Low Voltage Directive 73/23/EEE
Germany	TUV
