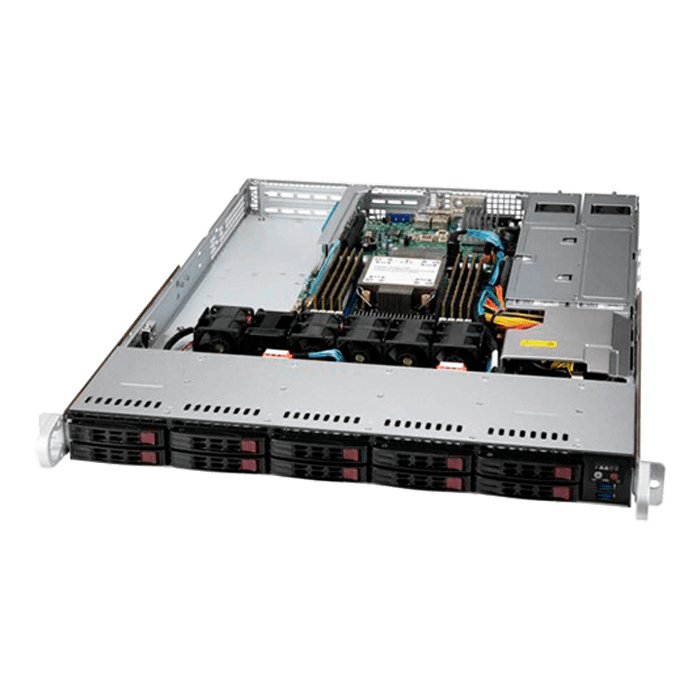

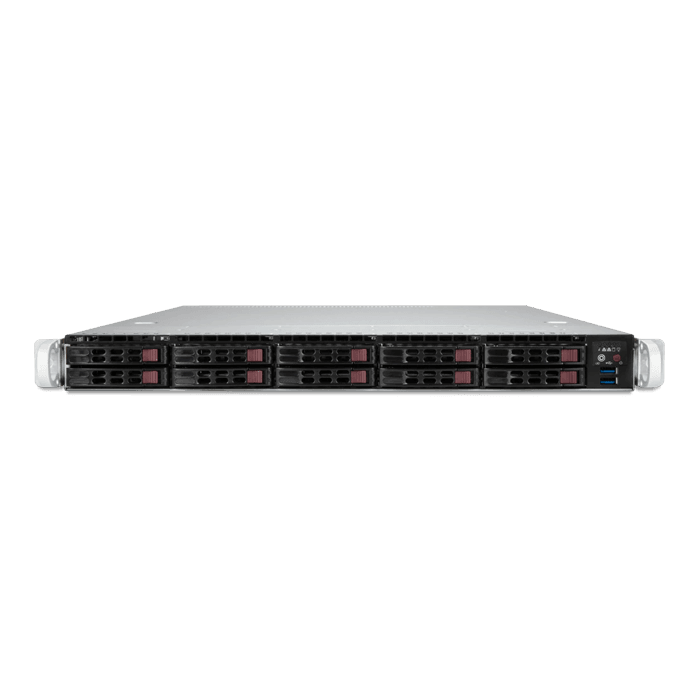

Description: Supermicro SuperServer 110P-WTR, 3rd Generation Intel® Xeon® Scalable Processors, SATA/SAS, 1U Rackmount Server Computer
(configuration # 14037837) QTY: 1 Unit Price:$XXXX Total Price:$XXXX
or as low as $XXX/month
Share your Configuration
Email successfully sent
Let us Help You
Need Expert Advice?
Our technical support staff is here to help in any way that they can! please fill out the form below and a friendly technician will contact you.
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2600 BMC
Input / Output
10 SATA (6Gbps) port(s)
1 RJ45 Dedicated IPMI LAN port
2 RJ45 10GBase-T LAN ports
5 USB 3.2 Gen 1 port(s) (2 front; 2 rear; 1 Type A)
4 USB 2 port(s) (2 headers; 2 rear)
1 VGA port(s)
2 COM Port(s) (1 header; 1 rear)
2 SuperDOM (Disk on Module) port with built-in power
AMI 32MB SPI Flash EEPROM
Intel® Node Manager
KVM with dedicated LAN
ACPI/APM Power Management
PC Health Monitoring
7+1 Phase-switching voltage regulator
Monitors for CPU Cores, Chipset Voltages, Memory
Fans with tachometer monitoring
Pulse Width Modulated (PWM) fan connectors
Status monitor for speed control
Monitoring for CPU and chassis environment
Thermal Control for fan connectors
Dimensions and Weight
8" (H) x 24" (W) x 32" (D)
Net Weight: 15.5 lbs (7.03 kg)
Gross Weight: 27 lbs (12.25 kg)
LAN 1 Activity
LAN 2 Activity
Slot 1: PCI-E 4.0 x16 FHFL
Slot 2: PCI-E 4.0 x16 FHFL
Slot 3: PCI-E 4.0 x16 LP
Drive Bays / Storage
10x 2.5" SATA drive bays (4x 2.5" NVMe hybrid)
1x PCI-E 3.0 x 4 and SATA
M-key, 2280, 22110
1 AOC cooling Fan(s) (optional)
5 counter-rotation PWM 40x40x56mm Fan(s)
1U 750W redundant power width 54.5mm
Dimension (W x H x L)
54.5 x 40 x 320 mm
10°C ~ 35°C (50°F ~ 95°F)
-40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity:
8% to 90% (non-condensing)
Non-operating Relative Humidity:
5% to 95% (non-condensing)
