Description: Supermicro SuperServer E301-9D-8CN8TP, Intel® Xeon® D-2146NT, SATA, Compact Server Computer
(configuration # 13856146) QTY: 1 Unit Price:$XXXX Total Price:$XXXX
or as low as $XXX/month
Share your Configuration
Email successfully sent
Let us Help You
Need Expert Advice?
Our technical support staff is here to help in any way that they can! please fill out the form below and a friendly technician will contact you.
Email a Quote
Email successfully sent
or as low as $XXX/month

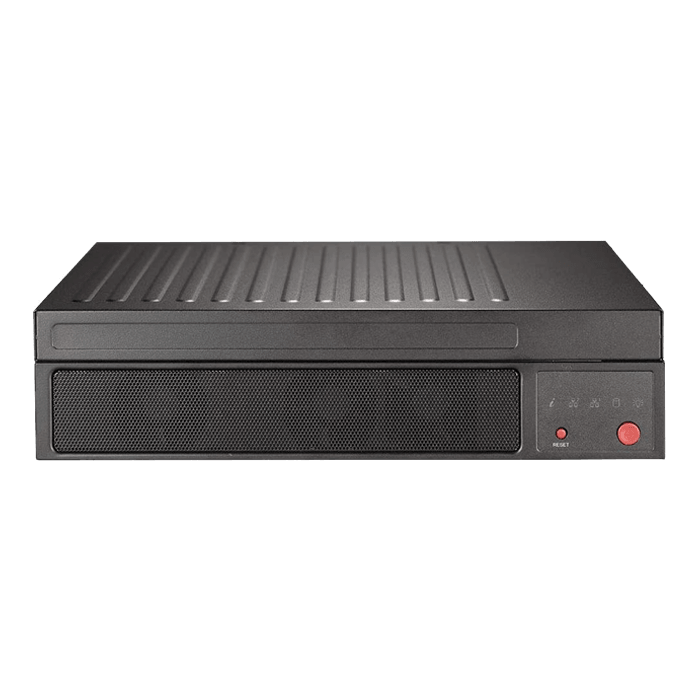

SuperServer E301-9D-8CN8TP (Black)
Intel® Xeon® processor D-2146NT,
CPU TDP support 80W
Cores / Cache
8 Cores, 16 Threads
Up to 512GB DDR4 ECC LRDIMM
Up to 256GB DDR4 ECC/non-ECC RDIMM
4 DIMM slots
2666/2400/2133MHz ECC DDR4 ECC LRDIMM and ECC/Non-ECC RDIMM
Operating speed up to 2400MHz
RDIMM: 4GB, 8GB, 16GB, 32GB, 64GB
LRDIMM: 16GB, 32GB, 64GB, 128GB
Corrects single-bit errors
Detects double-bit errors
(using ECC memory)
System on Chip
SATA3 (6Gbps) ports via SoC controller
Quad 1GbE with Intel I350-AM4
Dual 10GBase-T with Intel X557
Dual 10G SFP+ via SoC
Support for Intelligent Platform
Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Aspeed AST2500 BMC
Input / Output
SoC controller for 4 SATA3 (6Gbps) ports, (or 2 NVMe U.2 / 8 SATA3 through two Port Eight Intel PCH SATA 3.0 Ports or Two MINI-SAS HD ports)
2x 10G SFP+ ports
2x 10GBase-T LAN ports
4x 1GbE LAN ports
1 Dedicated IPMI LAN port
2 USB 3.0 ports (rear)
1 VGA port
1 TPM 2.0 header
10" (254mm) / 15" (381mm) - pkg.
2.6" (66mm) / 10.87" (276mm) - pkg.
8.9" (226mm) / 5.59" (142mm) - pkg.
Gross Weight: 7.5 lbs (3.4 kg)
Net Weight: 3.45 lbs (1.56 kg)
Power On/Off button
Power LED (Hard drive activity LED)
1 PCI-E 3.0 x8 slot
4x 7mm SSD
3x 40x28mm 4-PIN PWM Fan
DC Power Adapter
128Mb SPI Flash with AMI BIOS
USB Keyboard support
Hardware BIOS Virus protection
RTC (Real Time Clock) Wakeup
Intel® Node Manager
KVM with dedicated LAN
ACPI Power Management
+12V DC Power Input
Control of power-on for recovery from AC power loss
CPU thermal trip support for processor protection
M.2 NGFF connector, Node Manager Support, SDDC, System level control, UID, WOL
Fans with tachometer status monitoring
Status monitor for speed control
Low noise fan speed control
Pulse Width Modulated (PWM) fan connectors
Operating Environment / Compliance
0°C to 35°C (32°F to 95°F)
-40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity:
8% to 90% (non-condensing)
Non-operating Relative Humidity:
5% to 95% (non-condensing)
