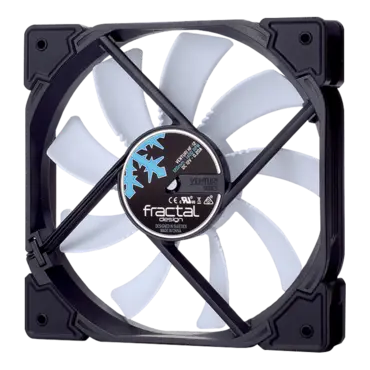

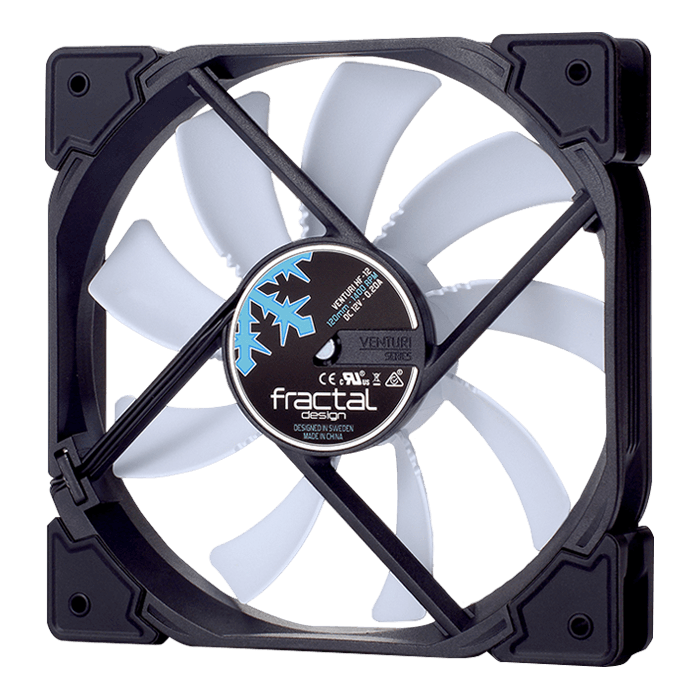

- Featuring true FDB-bearings, providing silent operation coupled with a long lifespan
- Equipped with a counter-balanced magnet that reduces the axial tension on the bearing
- Features integrated vibration-dampening corners, made from solid high-quality synthetic rubber
- Dense, sturdy construction, made from high-grade glass fiber reinforced thermoplastic polymer
- Fan geometry is optimized for a ground-breaking airflow, perfect for low-restriction usage scenarios such as computer case ventilation and low-density heatsinks or radiators.
- Aerodynamically shaped thin stator struts reduce noise and unwanted turbulence
- Strategically placed notches on the blades further reduce and diffuse any humming noise produced when the blades pass the stator struts
- The tripwire technology introduces a micro-turbulent layer that combats elements that negatively affect performance, resulting in quieter operation
- Featuring a powerful motor to maintain a reliable speed and a low-speed adapter for reducing the speed without the use of a fan controller
- Available in 120mm and 140mm fan sizes
- Available in two color combinations, Black blades, black corners, dark grey ("Gunmetal") frame and White blades, black corners, black frame
Fan | HF-12 |
Size [mm] | 120*120*25mm |
Colors available | Black blades, black corners, dark grey ("Gunmetal") frame White blades, black corners, black frame |
Screw hole pattern | 105*105mm |
Connector | 3-pin fan header |
Bearing | FDB |
Number of blades | 9 |
Rotational speed [RPM] | 1400 |
Acoustical noise [dB (A)] | 25.3 |
Maximum air flow [CFM] | 83.4 |
Maximum air flow [m 3/h] | 141.7 |
Maximum pressure [mm H 2 O] | 1.22 |
Actual input power [W] | 1.3 |
Maximum rated input current [A] | 0.2 |
Nominal input voltage [V] | 12V |
Minimum startup voltage [V] | 4V |
Low speed adapter speed | 1100 RPM |
Low speed adapter Static pressure | 0.89 mm H2O |
Low speed adapter Air flow | 65.8 CFM 111.8 m3/h |
Low speed adapter Noise level | 19.0 dB (A) |
MTBF [hours] | 150,000 |
Unit weight [g] | 169 |
Package weight [g] | 215 |
Cable length [mm] | 500 |
Cable type | Braided all-black ribbon wire |
Packaging dimensions [mm] (Including hanging tab) | 180*122*30 |
Packaging dimensions [mm] (Excluding hanging tab) | 147*122*30 |
