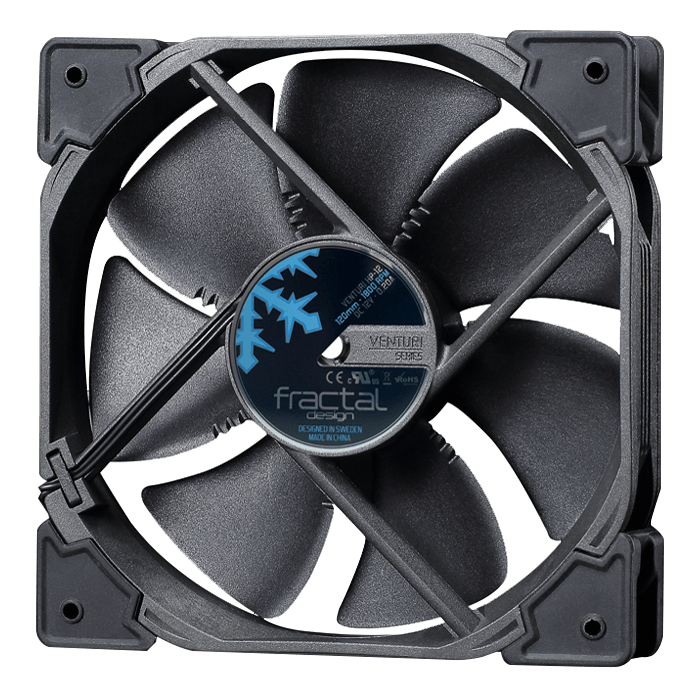

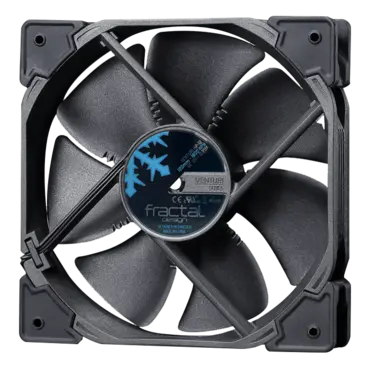

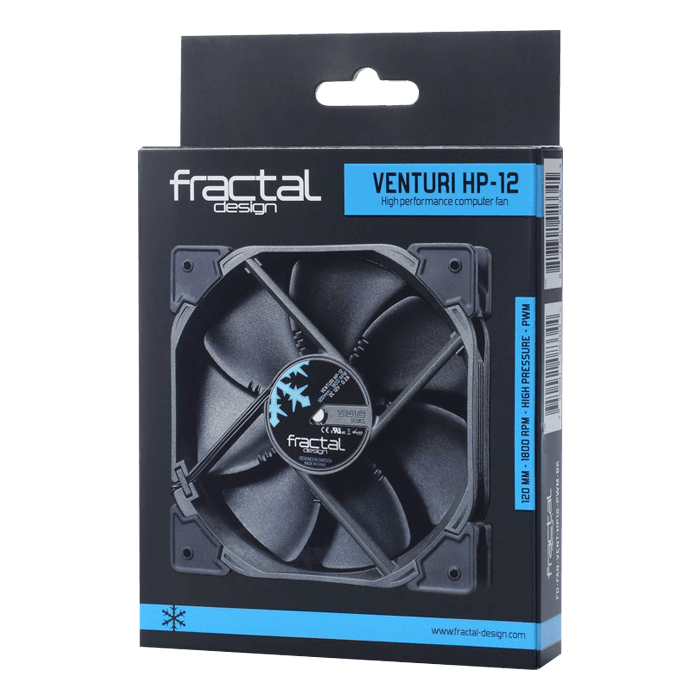

Venturi HP-12 PWM Black 120mm, 1800 RPM, 61.4 CFM, 31.7 dBA, Cooling Fan

SKU: 9538766

Manufacturer: Fractal Design

MPN: FD-FAN-VENT-HP12-PWM-BK

Availability: Available


Price: $20.03
or as low as $1/month
Quantity:
Fractal Design Venturi HF-12 black 120mm PWM 1400 RPM Cooling Fan
Fractal Design Venturi HF-12 black 120mm PWM 1400 RPM Cooling Fan
Fan  HP-12 PWM
Size [mm]  120*120*25mm
Colors available  Black blades, black corners, dark grey ("Gunmetal") frame  White blades, black corners, black frame
Screw hole pattern  105*105mm
Connector  4-pin fan header
Bearing  FDB
Number of blades  7
Rotational speed [RPM]  1800
Acoustical noise [dB (A)]  31.7
Maximum air flow [CFM]  61.4
Maximum air flow [m 3 /h]  104.3
Maximum pressure [mm H 2 O]  2.3
Actual input power [W]  1.0
Maximum rated input current [A]  0.2
Nominal input voltage [V]  12V
Minimum startup voltage [V] 6V
Low (0-20%) PWM speed  400 RPM
Low PWM Static pressure  0.45 mm H2O
Low PWM Air flow  15.4 CFM  26.2 m3/h
Low PWM Noise level  < 10 dB (A)
MTBF [hours]  150,000
Unit weight [g]  179
Package weight [g]  225
Cable length [mm]  500
Cable type  Braided all-black ribbon wire
Packaging dimensions [mm] ( Including hanging tab)  180*122*30
Packaging dimensions [mm] (Excluding hanging tab )  147*122*30
