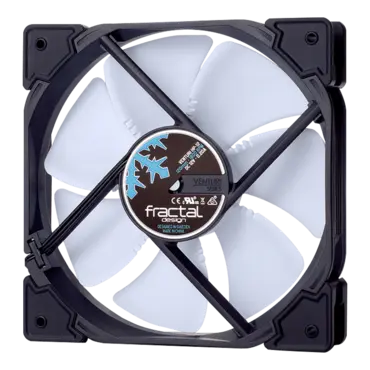

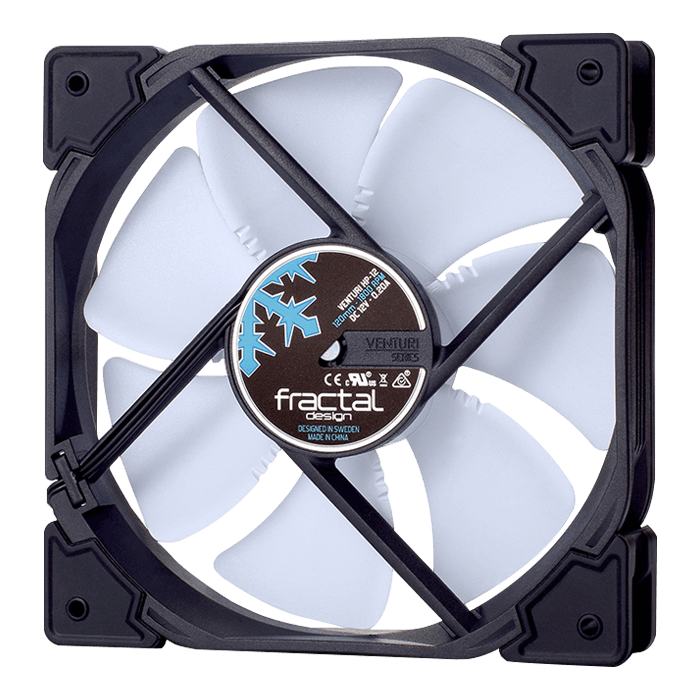

Venturi HP-12 PWM Black/White 120mm, 1800 RPM, 61.4 CFM, 31.7 dBA, Cooling Fan
Quantity:
- SKU: 12784609
- Manufacturer: Fractal Design
- MPN: FD-FAN-VENT-HP12-PWM-WT
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$20.03
- Featuring true FDB-bearings, providing silent operation coupled with a long lifespan
- Equipped with a counter-balanced magnet that reduces the axial tension on the bearing
- Features integrated vibration-dampening corners, made from solid high-quality synthetic rubber
- Dense, sturdy construction, made from high grade glass fiber reinforced thermoplastic polymer
- Fan geometry is optimized for high pressure, delivering high performance results in high restriction usage scenarios, such as in use with large dense heatsinks or water cooling radiators.
- Featuring PWM control with a very wide speed range, starting at only 400RPM (400 +/- 100 RPM), ideal for CPU heatsinks or radiators, where the motherboard can control the fan speed based on the CPU temperature.
- Aerodynamically shaped thin stator struts reduce noise and unwanted turbulence.
- Strategically placed notches on the blades further reduce and diffuse any humming noise produced when the blades pass the stator struts
- The trip wire technology introduces a micro-turbulent layer that combats elements that negatively affect performance, resulting in quieter operation
- Comes with a PWM Y-cable, for connecting additional fans to a single PWM header on your motherboard or PWM fan controller
- Available in 120mm and 140mm fan sizes
- Available in two color combinations, Black blades, black corners, dark grey ("Gunmetal") frame and White blades, black corners, black frame
| Fan | HP-12 PWM |
| Size [mm] | 120*120*25mm |
| Colors available | Black blades, black corners, dark grey ("Gunmetal") frame White blades, black corners, black frame |
| Screw hole pattern | 105*105mm |
| Connector | 4-pin fan header |
| Bearing | FDB |
| Number of blades | 7 |
| Rotational speed [RPM] | 1800 |
| Acoustical noise [dB (A)] | 31.7 |
| Maximum air flow [CFM] | 61.4 |
| Maximum air flow [m3/h] | 104.3 |
| Maximum pressure [mm H2O] | 2.3 |
| Actual input power [W] | 1.0 |
| Maximum rated input current [A] | 0.2 |
| Nominal input voltage [V] | 12V |
| Minimum startup voltage [V] | 6V |
| Low (0-20%) PWM speed | 400 RPM |
| Low PWM Static pressure | 0.45 mm H2O |
| Low PWM Air flow | 15.4 CFM 26.2 m3/h |
| Low PWM Noise level | < 10 dB (A) |
| MTBF [hours] | 150,000 |
| Unit weight [g] | 179 |
| Package weight [g] | 225 |
| Cable length [mm] | 500 |
| Cable type | Braided all-black ribbon wire |
| Packaging dimensions [mm] ( Including hanging tab) | 180*122*30 |
| Packaging dimensions [mm] (Excluding hanging tab ) | 147*122*30 |
