Venturi HP-14 PWM Black 140mm, 1500 RPM, 78.1 CFM, 30.1 dBA, Cooling Fan

SKU: 9538722

Manufacturer: Fractal Design

MPN: FD-FAN-VENT-HP14-PWM-BK

Availability: Available


Price: $22.34
or as low as $1/month
Quantity:

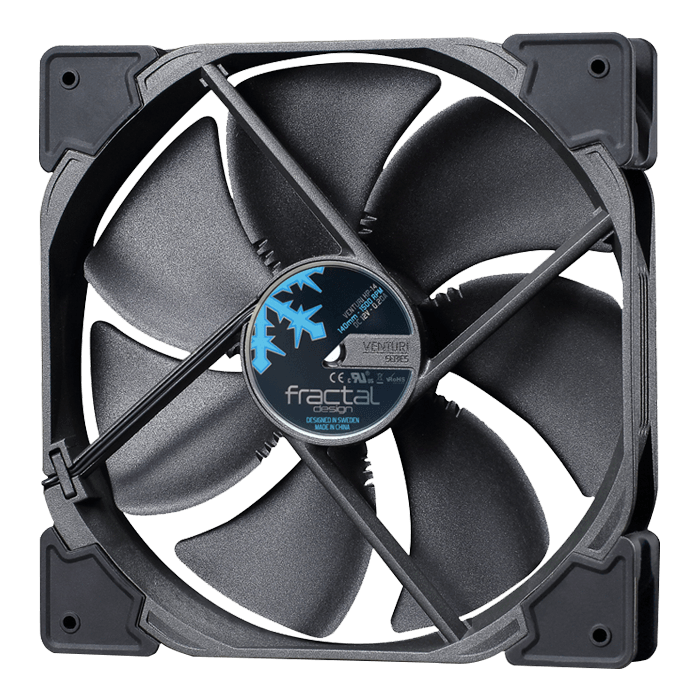

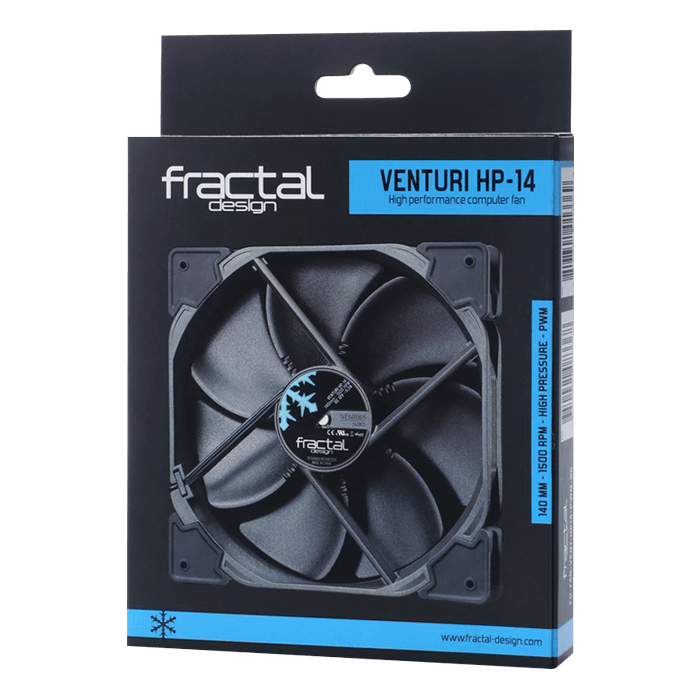

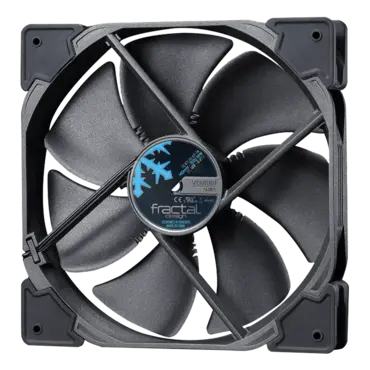

Fractal Design Venturi HP-14 PWM black 140mm Cooling Fan
Fractal Design Venturi HP-14 PWM black 140mm Cooling Fan
Fan HP-14 PWM
Size [mm] 140*140*25mm
Colors available Black blades, black corners, dark grey ("Gunmetal") frame  White blades, black corners, black frame
Screw hole pattern 125*125mm 105*105mm
Connector 4-pin fan header
Bearing FDB
Number of blades 7
Rotational speed [RPM] 1500
Acoustical noise [dB (A)]  30.1
Maximum air flow [CFM]  78.1
Maximum air flow [m 3 /h]  132.7
Maximum pressure [mm H 2 O]  1.94
Actual input power [W]  1.4
Maximum rated input current [A]  0.2
Nominal input voltage [V] 12V
Minimum startup voltage [V] 7V
Low (0-20%) PWM speed 400 RPM
Low PWM Static pressure  0.54 mm H2O
Low PWM Air flow  24.0 CFM  40.8 m3/h
Low PWM Noise level < 10 dB (A)
Low speed adapter speed -
Low speed adapter Static pressure -
Low speed adapter Air flow -
Low speed adapter Noise level -
MTBF [hours] 150,000
Unit weight [g] 210
Package weight [g] 270
Cable length [mm] 500
Cable type Braided all-black ribbon wire
Packaging dimensions [mm] ( Including hanging tab) 200*142*30
Packaging dimensions [mm] (Excluding hanging tab ) 167*142*30
