XR1 1080p 60FPS, 4K Pass Through, USB 3.0/HDMI Capture Device

SKU: 13743743

Manufacturer: EVGA

MPN: 141-U1-CB10-LR

Availability: Available


Price: $139.12
or as low as $4/month
Quantity:

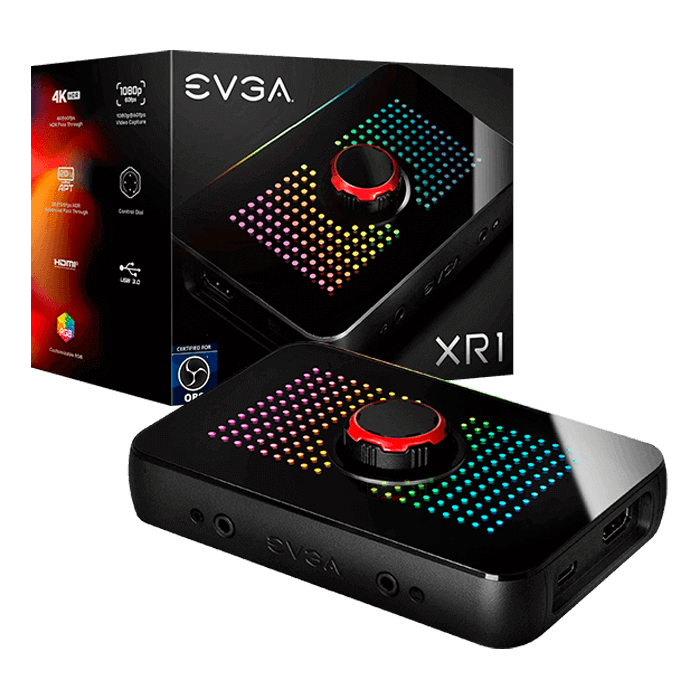

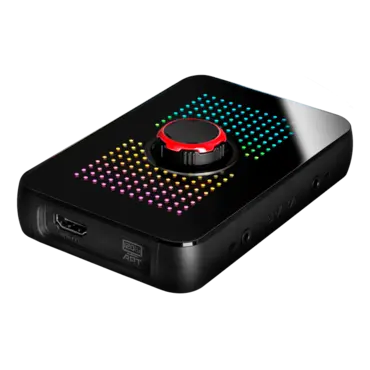

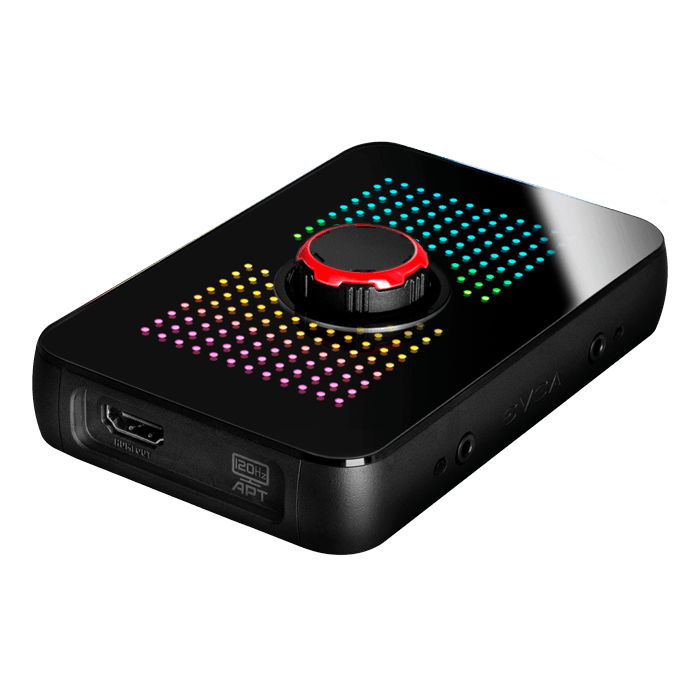

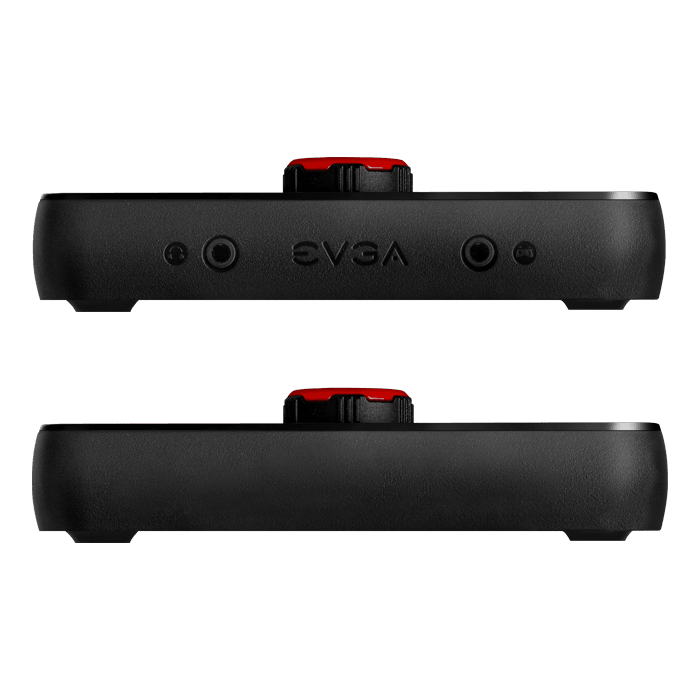

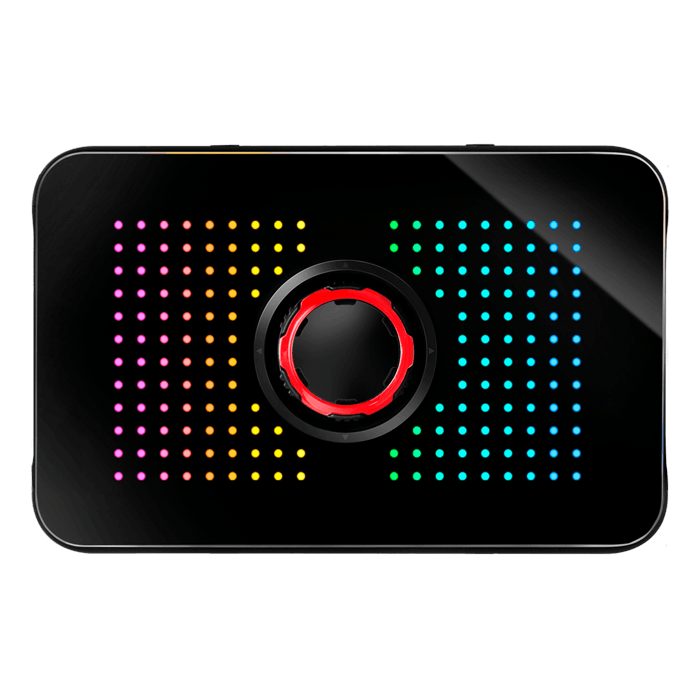

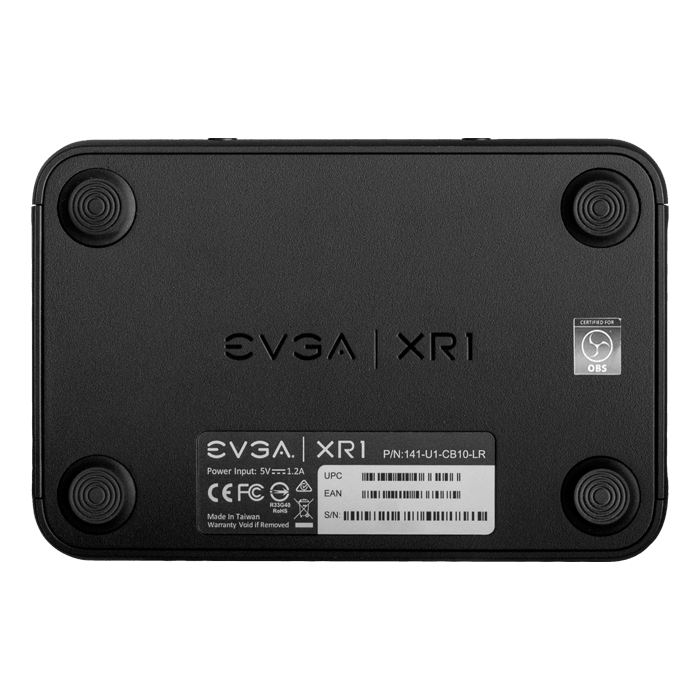

EVGA XR1 Capture Device

  • 4K@60fps Pass Through
  • 1080p@60fps Video Capture
  • 2k@120fps HDR Advanced Pass Through
  • Built in Audio Mixer via Control Dial
  • Certified for OBS™
Mfr Part Number 141-U1-CB10-LR

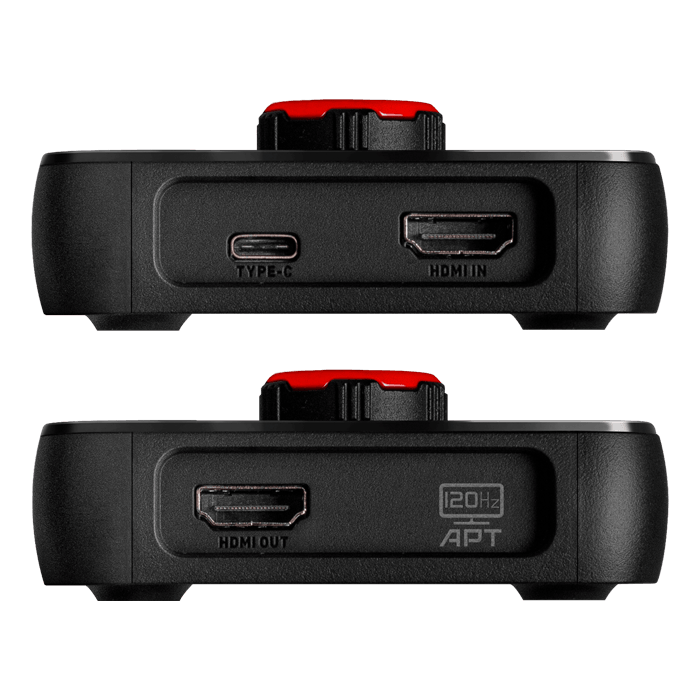

Interface USB 3.0 Type-C
Video Input Interface HDMI 2.0 (up to 4k@60fps)
Audio Input Interface HDMI
Video Bypass HDMI (up to 4k@60fps)
Video Resolution Input 480p / 576p / 720p / 1080p / 1440p / 2160p@60fps
Video Resolution Pass Through 480p / 576p / 720p / 1080p / 2160p@60fps
Video Resolution Advanced Pass Through 720p / 1080p / 1440p@120fps
Encode Resolution Up to 1080p @ 60fps
Encode Format RAW
Features
  • 1080p@60fps Video Capture
  • 1440p@120fps HDR Advanced Pass Through
  • 4K@60fps Pass Through
  • Built in Audio Mixer via Control Dial
  • Certified for OBS
Dimensions
  • With Control Dial:
    - Width: 130mm
    - Length: 86.4mm
    - Height: 32.95mm
  • Without Control Dial:
    - Width: 130mm
    - Length: 86.4mm
    - Height: 24.15mm
Weight 159g
Warranty Limited 2 Year
