ZenScreen Ink MB14AHD, Touch, 14" IPS, 1920 x 1080 (FHD), 5 ms, 60Hz, Portable Monitor

  • SKU: 15070494
  • Manufacturer: ASUS
  • MPN: MB14AHD
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
ZenScreen Ink MB14AHD, Touch, 14" IPS, 1920 x 1080 (FHD), 5 ms, 60Hz, Portable Monitor

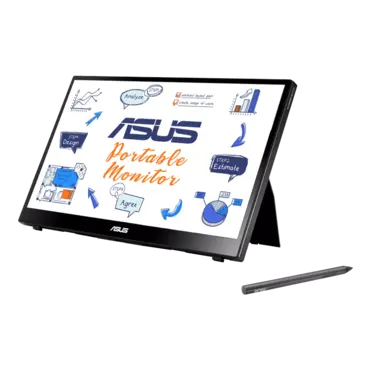

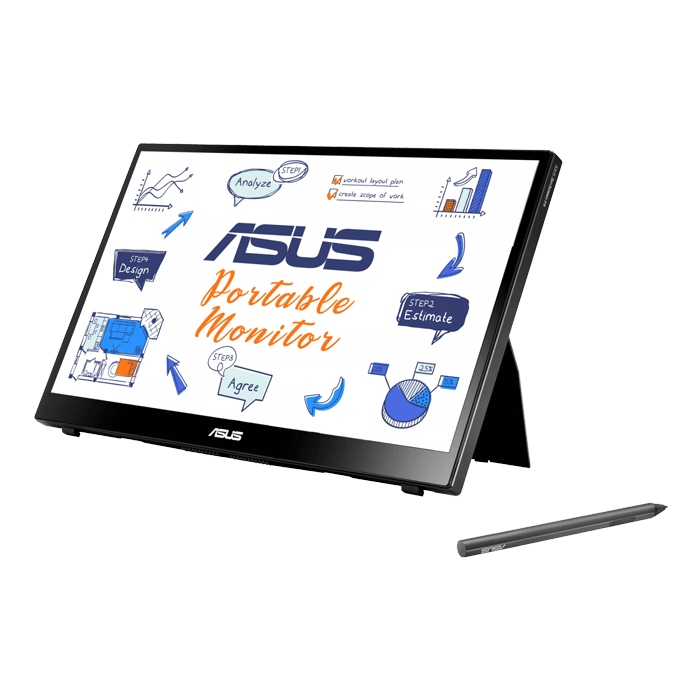

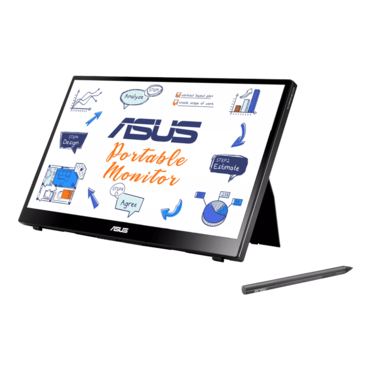

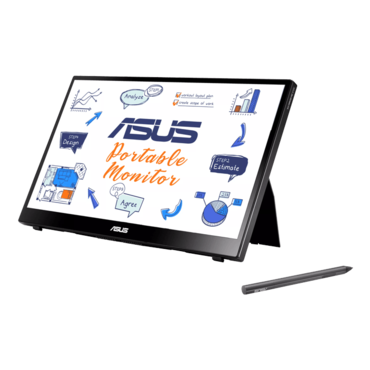

ASUS ZenScreen Ink MB14AHD is a 14-inch IPS FHD portable monitor with 10-point touch functionality and ASUS Pen (SA201H)* that allows users to write, draw anytime and anywhere. The included ASUS Pen features MPP 2.0 and 4096 pressure level for precise and lag-free writing and drawing experiences. It even features an integrated stepless kickstand, enabling ZenScreen Ink to be used in almost any position.

  • 14-inch FHD (1920 x 1080) IPS portable monitor with 10-point touch and active stylus support
  • MPP 2.0 stylus with 4096-level pressure sensitivity and low latency for precise and exceptional writing experiences

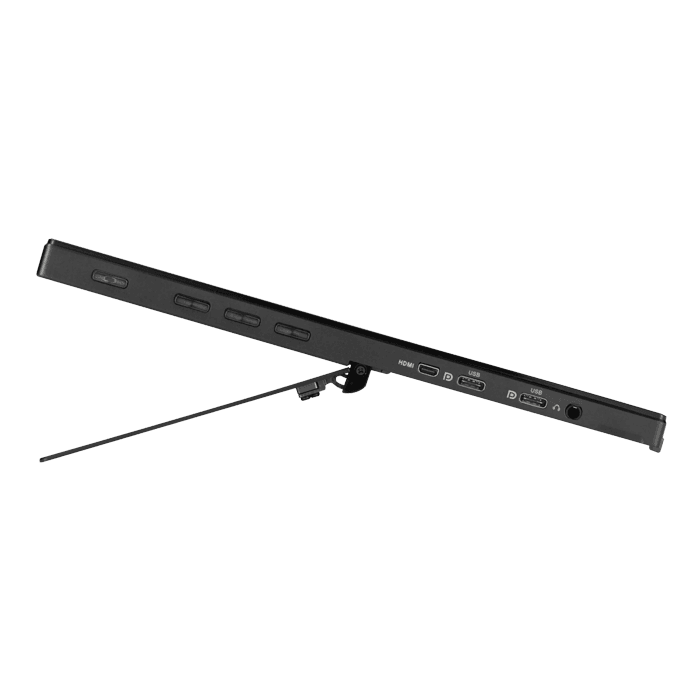

  • Rich connectivity with two USB-C® (DP Alt mode) and micro HDMI®

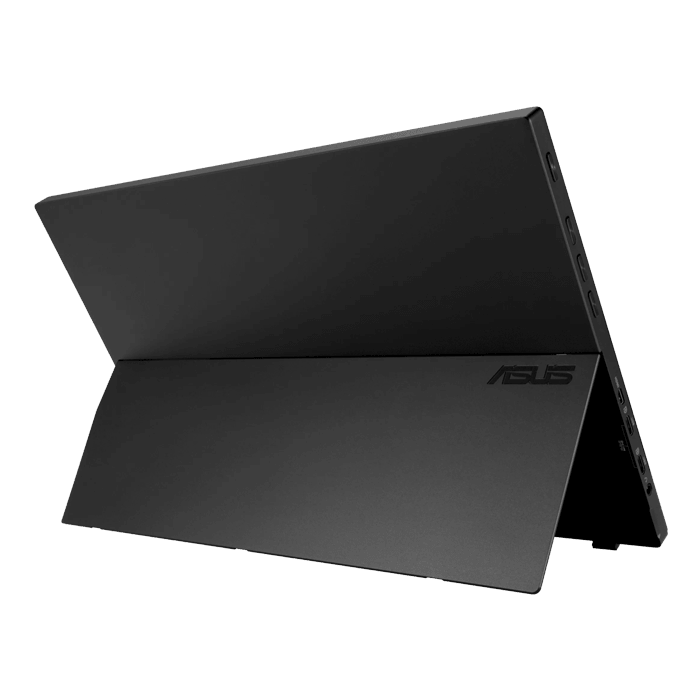

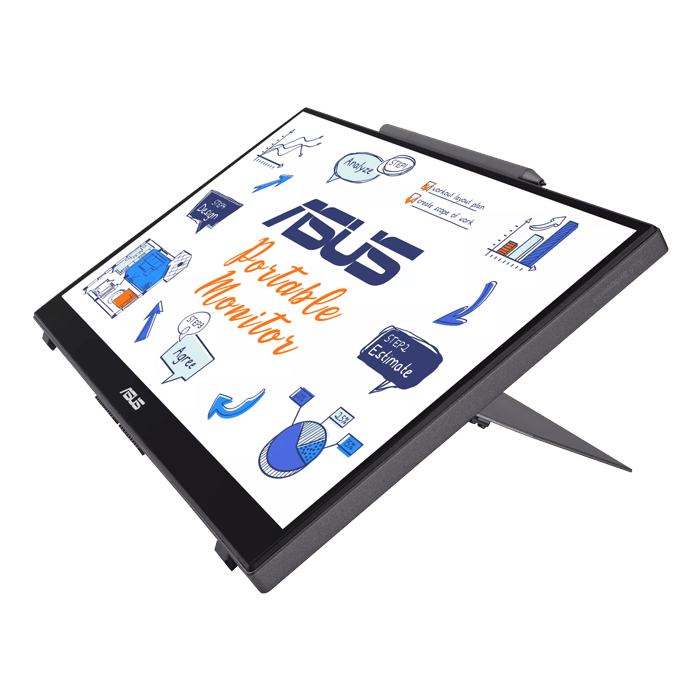

  • Integrated stepless kickstand offers up to 150° of hinge movement in both landscape and portrait orientation to suit different scenarios
  • Built-in ¼”-threaded socket for compatibility with a standard tripod
Model ZenScreen Ink MB14AHD
Display Panel Size (inch) : 14
Aspect Ratio : 16:9
Display Viewing Area (H x V) : 309.37 x 174.02 mm
Display Surface : Glare
Backlight Type : LED
Panel Type : IPS
Viewing Angle (CR≧10, H/V) : 170°/ 170°
Pixel Pitch : 0.161mm
Resolution : 1920x1080
Brightness (Typ.) : 220cd/m2
Contrast Ratio (Typ.) : 800:1
Display Colors : 262K
Response Time : 5ms(GTG)
Refresh Rate (Max) : 60Hz
Touch : PCT + MPP2.0 Active Pen
Protection Glass : Yes
Flicker-free : Yes
Video Feature Trace Free Technology : Yes
SPLENDID Technology : Yes
Color Temp. Selection : Yes(4 modes)
GamePlus : Yes
QuickFit : Yes
HDCP : Yes, 1.4
DisplayWidget : Yes
Low Blue Light : Yes
Audio Feature Speaker : No
I/O Ports USB-C x 2 (DP Alt Mode)
Micro HDMI x 1
Earphone Jack : Yes
Signal Frequency Digital Signal Frequency : HDMI:24Khz~83KHz
USB-C: 83KHz
Power Consumption Power Consumption : <10W
Power Saving Mode : <0.5W
Power Off Mode : <0.3W
Voltage : 100-240V, 50/60Hz
Mechanical Design Height Adjustment : No
1/4" Tripod Socket : Yes
Dimensions (Esti.) Phys. Dimension without Stand (W x H x D) : 324.2 x 201.2 x 12.5 mm
Box Dimension (W x H x D) : 454 X 310 x 78 mm
Weight (Esti.) Net Weight without Stand : 0.87 kg
Gross Weight : 2.64 kg
Accessories (varies by region) ASUS Pen (MPP2.0)
Micro HDMI to HDMI cable
Power adapter
Quick start guide
USB Type-C to A adapter
USB-C cable
Warranty Card
ZenScreen sleeve
Certificate TÜV Flicker-free
TÜV Low Blue Light
Note * Battery goes with inbox stylus pen, please remember to remove isolation sheet in the stylus pen in the first use
* Please be noted that the battery size/format for the stylus pen is AAAA
* The warranty period of stylus pen is 12 months
