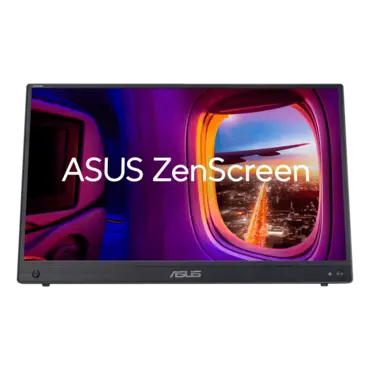

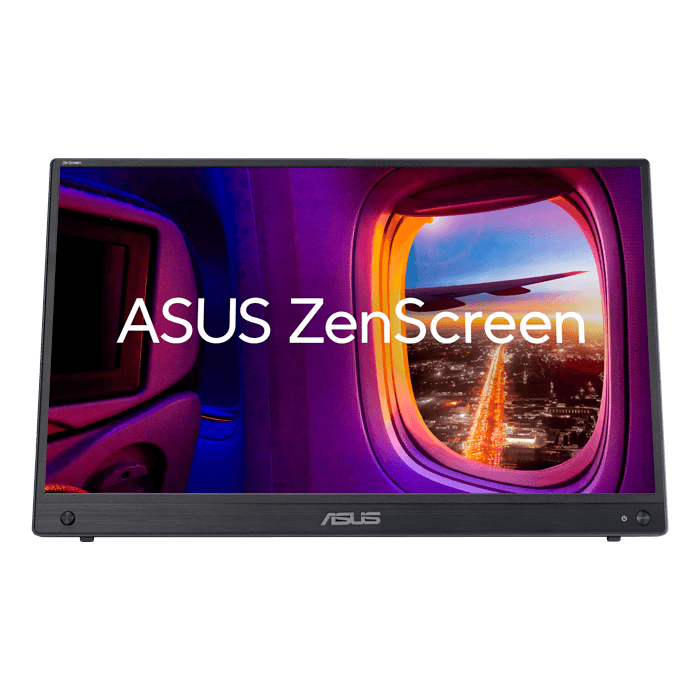

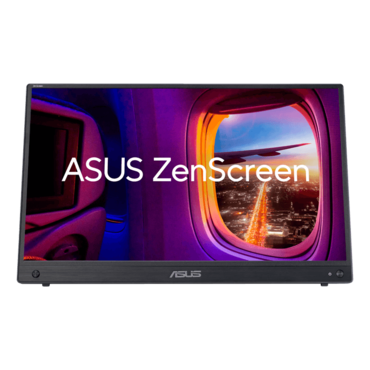

ZenScreen MB16AHG, 15.6" IPS, 1920 x 1080 (FHD), 3 ms, 144Hz, FreeSync™ Premium Portable Monitor
ASUS ZenScreen MB16AHG (90LM08U0-B011B0) is a 15.6-inch IPS FHD portable monitor with fast 144Hz refresh rate and Adaptive-Sync(FreeSync™) technology to eliminate screen tearing and choppy frame rates for the smoother-than-ever experience. A fold-out adjustable stand enables a multitude of tilt angles to ensure comfortable viewing. Dual USB-C™ and mini-HDMI connectivity enables displaying content from a wide-range of devices, so you can enjoy an expansive view for the best work and entertainment experiences, wherever you go.
- 15.6-inch FHD (1920 x 1080) IPS portable monitor with 144Hz refresh rate designed for smooth motion pictures
- Two USB-C® (DP Alt mode) and mini HDMI® ports provide versatile connectivity with laptops and game consoles
- FreeSync Premium technology delivers a seamless, tear-free visual experience by enabling VRR (variable refresh rate)

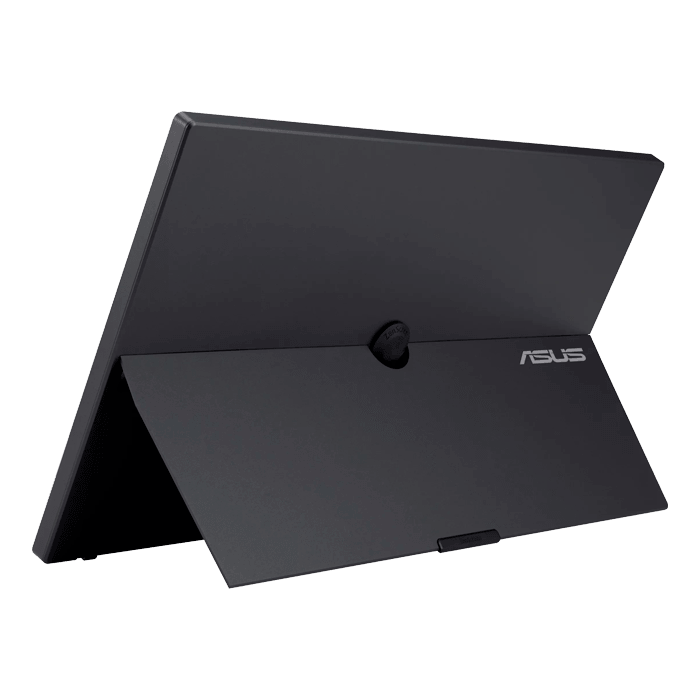

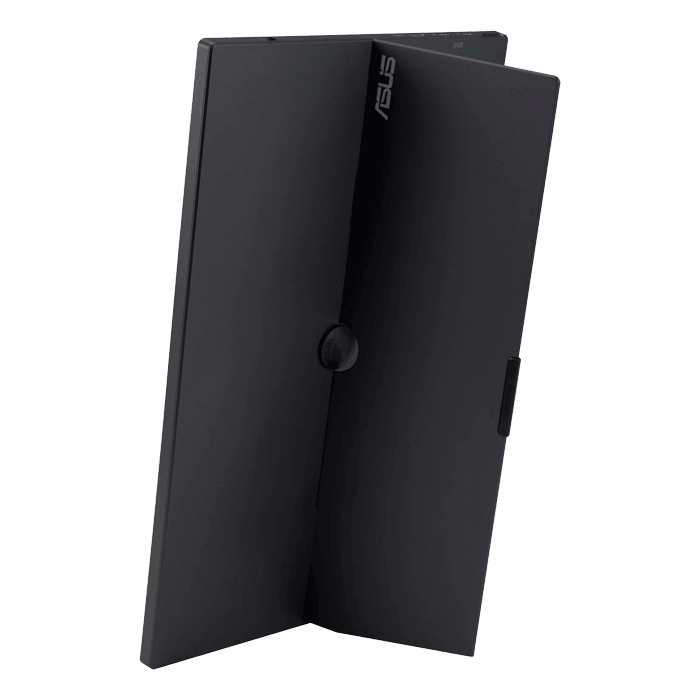

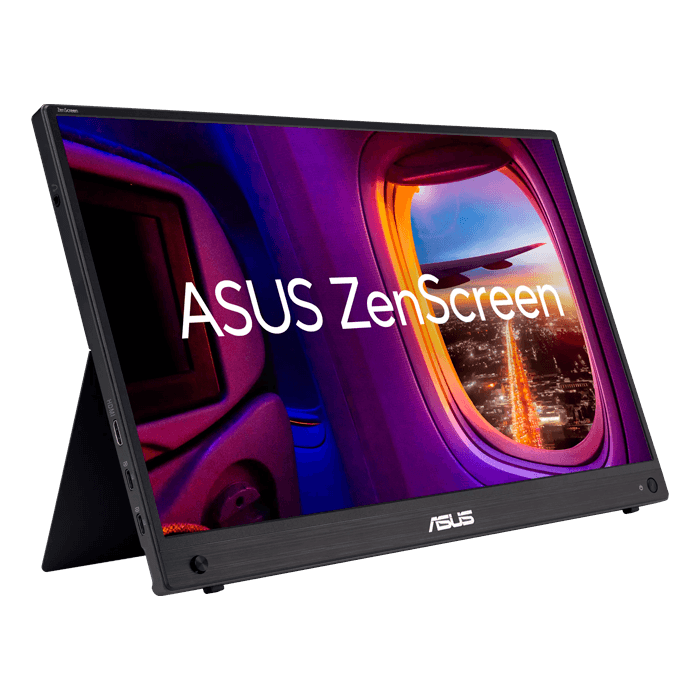

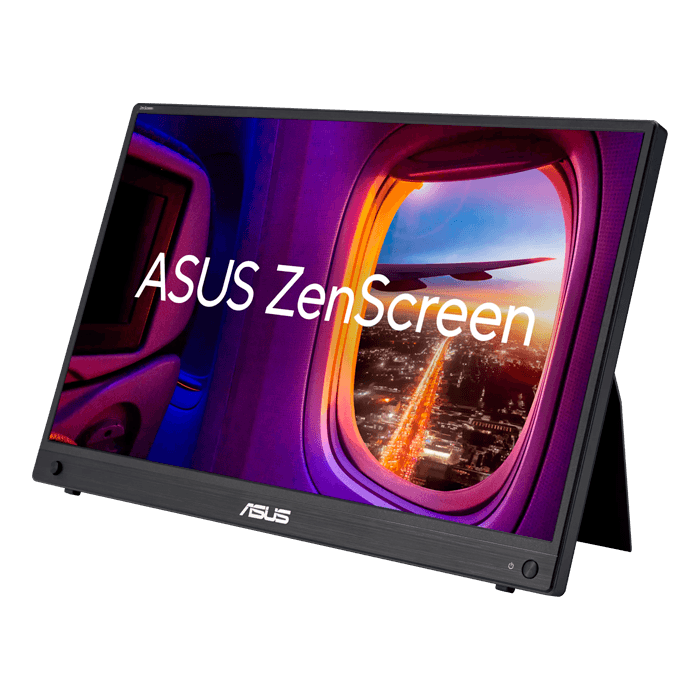

- Fold-out kickstand supports multiple viewing positions in both landscape and portrait orientation
- Built-in ¼”-threaded socket for compatibility with a standard tripod
Model | ASUS ZenScreen MB16AHG |
Display |
Panel Size (inch) : 15.6 Aspect Ratio : 16:9 Display Viewing Area (H x V) : 344.16 x 193.59 mm Display Surface : Non-Glare Backlight Type : LED Panel Type : IPS Viewing Angle (CR≧10, H/V) : 178°/ 178° Pixel Pitch : 0.179mm Resolution : 1920x1080 Color Space (sRGB) : 100% Brightness (Typ.) : 300cd/m2 Contrast Ratio (Typ.) : 1200:1 Display Colors : 16.7M Response Time : 3ms(GTG) Refresh Rate (Max) : 144Hz Flicker-free : Yes |
Video Feature |
Trace Free Technology : Yes SPLENDID Technology : Yes Color Temp. Selection : Yes(4 modes) GamePlus : Yes QuickFit : Yes (Photo/Alighment Grid) HDCP : Yes, 1.4 VRR Technology : Yes (Adaptive-Sync) DisplayWidget : Yes, DisplayWidget Lite Low Blue Light : Yes |
I/O Ports |

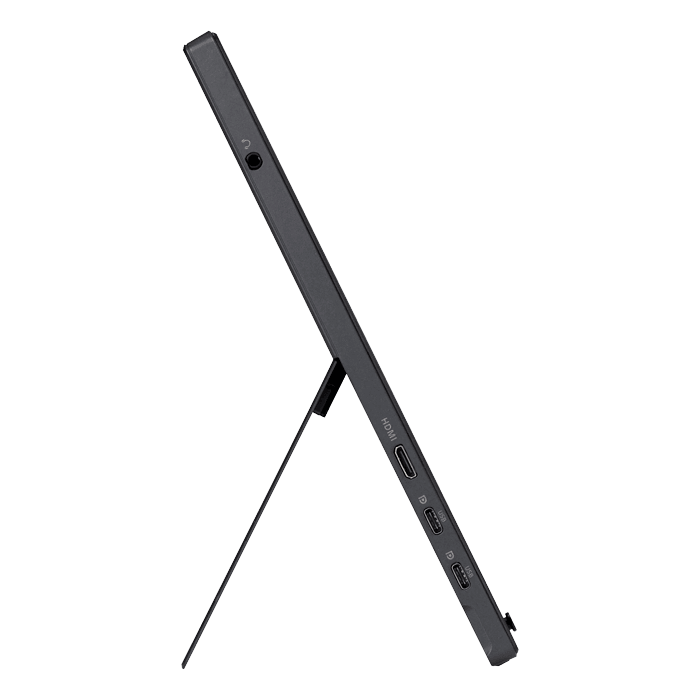

USB-C x 2 (DP Alt Mode) Mini HDMI x 1 Earphone Jack : Yes |
Signal Frequency |
Digital Signal Frequency : HDMI: 30-180 KHz(H) / 60-144Hz (V) USB-C: 180 KHz(H) / 60-144Hz (V) |
Power Consumption |
Power Consumption : ≦17W* Power Saving Mode : <0.5W Power Off Mode : <0.3W Voltage : 100-240V, 50/60Hz |
Mechanical Design |
Tilt : Yes (+15° ~ +35°) Height Adjustment : No 1/4" Tripod Socket : Yes |
Dimensions (Esti.) |
Phys. Dimension without Stand (W x H x D) : 359.85 x 226.75 x 11.95 mm Box Dimension (W x H x D) : 485 x 305 x 76 mm |
Weight (Esti.) |
Net Weight without Stand : 0.92 Kg Gross Weight : 2.78 Kg |
Accessories (vary by regions) |
Mini HDMI to HDMI cable Power adapter Quick start guide USB Type-C to A adapter USB-C cable USB-C to A cable Warranty Card ZenScreen sleeve |
Operation Temperature / Humidity |
Operation temperature : 0~40°C Operation humidity : 20-90% RH |
Certificate |
TÜV Flicker-free TÜV Low Blue Light AMD FreeSync Premium |
