AVADirect + Pixotope
Workstation Solutions
We have partnered with Pixotope to build Rack-Mountable
Workstation solutions specializing in integrating and maximizing
productivity with Pixotope’s virtual production software.
Fully integrated Content Creation Solutions from Pixotope and AVADirect
Designed with Content Creation in Mind
Reliability and productivity are of the utmost importance for content creators.
PC downtime and huge rendering times cut into the profitability of a project when time is money.
AVADirect customers are served by a dedicated team of experts in system configuration, architecture,
assembly, and benchmarking - committed to provide the best service and craftsmanship.
All computer systems manufactured by AVADirect are backed up by a best-in-the-industry warranty,
personalized customer service, and free, lifetime* technical support.
-
![]()
Technical Support -
![]()
Warranties -
![]()
components -
![]()
Systems
Pixotope
By Creatives For Creatives
Utilizing Epic Games’ Unreal engine to product photorealistic rendering in real-time Pixotope requires some hefty computer hardware to work at its true potential. The combination of Unreal Engine and Pixotope enables designers to rapidly create virtual sets, virtual environments, and augmented content, with terrain and foliage, with particle systems (rain, smoke, fire, hair, cloth, explosions, etc.), and with simulated camera and lens properties (lens distortion, depth of field, chromatic aberration).
Turn-Key Rack Mountable
Workstation Solutions
Meet the Workstation PC
Each workstation has been engineered specifically for Pixotope productions. After assembly and installation of Pixotope, AVADirect runs each workstation through a rigorous series of tests, verifying that the hardware and software hold true to industry standards. With industry-leading support and flexible warranty packages, AVADirect will ensure your focus remains on getting the job done efficiently.
These systems feature the same base components powered by NVIDIA Geforce’s powerful RTX™ 3080/3090, but offer a selection of 6 capture cards, allowing you to pick a system perfect for your use case.
-
![]()
Mountable -
![]()
Platform -
![]()
Warranties -
![]()
Solutions
NVIDIA Ray Tracing Technologies
Powered by the groundbreaking NVIDIA RTXâ„¢ 3080/3090
NVIDIA RTX platform includes ray tracing technology that brings real-time, cinematic-quality rendering to content creators and game developers. We are now seeing GPUs that have enough compute capability to do interesting ray tracing workloads in real-time. Each system has been outfitted with an NVIDIA GeForce RTX 3080/3090, the most powerful GPU on the consumer market featuring breakthrough technologies, featuring 10/24 GB of next-gen, ultra-fast GDDR6X memory.

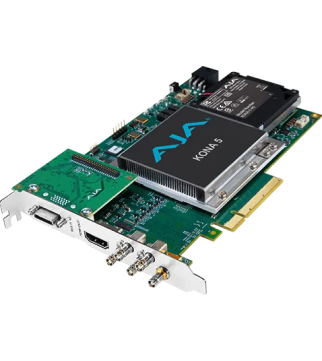

Kona 5
- Supports 8K/4K/UltraHD ingest and output at frame rates up to 50/60 fps
- Supports 4:4:4 and 4:2:2 workflows
- 4x bidirectional 12G-SDI spigots
- 12-bit color support (application dependent)
- 8K or multi-channel 4K support for OEM applications with AJA SDK
- HDMI 2.0 output (4K/UltraHD HFR 4:2:2 10-bit)
- HDR: HDR10 support - HDR Infoframe metadata, in accordance with HDMI
- 2.0a/CTA-861.3, HLG (Hybrid Log-Gamma) support
- 8-ch AES/EBU, 8-ch embedded HDMI, and 16-ch embedded SDI digital audio I/O
- Reference Input on the card (Analog black burst or Tri-level)

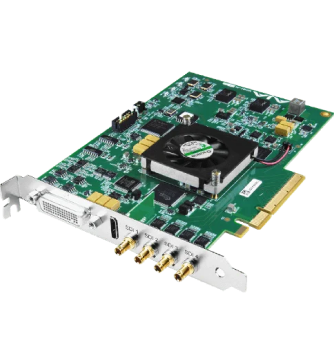

Kona 4
- Supports 4K and UltraHD ingest and output at frame rates up to 50/60p
- Real-time up, down, cross-conversion with pristine 10-bit quality
- 3G-SDI and 1.5G-SDI formats supported
- HDMI 1.4b (UltraHD 50/60p 8-bit 4:2:0)
- HDR10 Support - HDR Infoframe metadata, in accordance with
- HDMI 2.0a/CTA-861.3 and HLG (Hybrid Log-Gamma) support
- Supports 444 and 422 workflows
- 8-lane PCIe 2.0
- 8-ch AES/EBU, 8-ch embedded HDMI, and 16-ch embedded SDI digital audio I/O

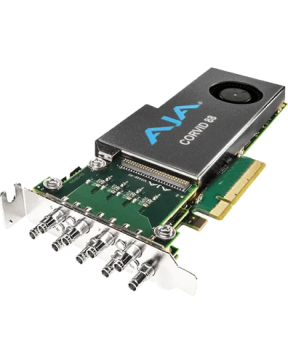

Corvid 88
- Up to eight independent channels* 3G-SDI I/O
- HD/SD video formats
- 3G-SDI input/output for High Frame Rate (HFR) support
- 8 or 10-bit YCbCr and 12-bit RGB frame buffer formats
- 4x independent Mixer/Keyer widgets.
- 8x independent 16-ch 48 kHz SDI embedded audio
- 8-lane PCIe 2.0

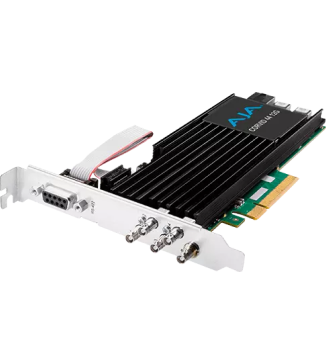

Corvid 44 12G
- 4K, UltraHD, 2K, HD and SD with HFR support
- 10-bit downstream keyer in hardware, supporting up to 4K resolution
- 16-channel embedded SDI audio per 12G-SDI port
- 4x bidirectional 12G-SDI ports and 1x Reference In
- 8-lane PCIe 3.0 design

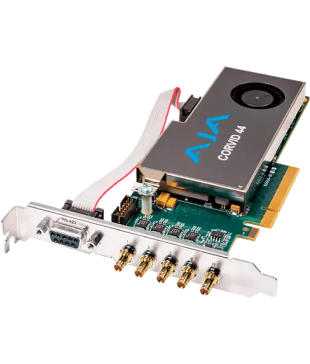

Corvid 44
- Up to four independent* channels 3G, HD, SD-SDI I/O
- All SD/HD/2K x 1080/4K video formats
- 3G input/output for High Frame Rate (HFR) support
- 8/10-bit YCbCr and 12- bit RGB frame buffer formats
- 2 independent Mixer/Keyer widgets.
- 4 independent 16-channel 48 kHz SDI embedded audio I/O engines
- 8-lane PCIe 2.0

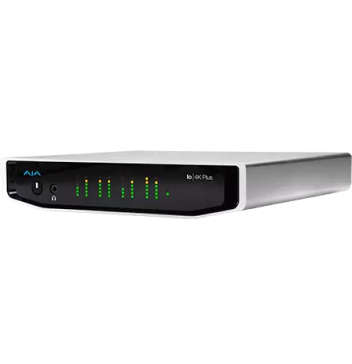

Io 4K Plus
- Portable 4K/UltraHD and HD/SD capture and playback across Thunderbolt 3
- 12G/6G/3G/1.5G-SDI and HDMI 2.0 I/O for 4K, UltraHD, 2K, HD and SD with HFR support up to 60p at 4:2:2
- Real time 4K/UltraHD to 2K/HD down-conversion
- 8-10- and 12-bit 4:2:2 and 4:4:4 over 12G-SDI or HDMI 2.0 workflow support
- 16-channel embedded audio on SDI; 8-channel embedded audio on HDMI; 4-channel analog audio in and out via XLR breakout
Choose Your Turn-Key, Pre-Configured, Rack-Mountable Workstation
- IstarUSA D Storm D-400L-7 4U Chassis
- 26" Sliding Rail Kit
- ASUS Pro WS X570-ACE Motherboard
- Up to AMD Ryzenâ„¢ 9 5950X 16-Core Processor (3.4 - 4.9GHz Boost Clock)
- UP to EVGA GeForce® RTX™ 3090 (XC3 GAMING) Graphics Card
- UP to Kingston 128GB HyperX FURY DDR4 3200MHz Memory
- Redundant 900w Gold-Rated Power Supply
- NOCTUA NH-U9S CPU Cooler
- Thermal Grizzly Kryonaut Thermal Compound
- UP to 2x Samsung 1TB 980 PRO PCIe 4.0 M.2 NVMe SSD
- UP to 4x Samsung 4TB 860 PRO 2.5-Inch SATA SSD
- AJA® Kona 4, AJA® Kona 5, AJA® Corvid 44, AJA® Corvid 44 12G, AJA® Corvid 88, AJA® Io 4k plus
- Windows 10 Pro 64-bit
- AVA Gold (Lifetime Labor / 3-Year Parts / 1-Year Return Shipping OR Advanced Part Replacement)
- IstarUSA D Storm D-400L-7 4U Chassis
- 26" Sliding Rail Kit
- ASUS WS X299 PRO/SE Motherboard
- Up to Intel Coreâ„¢ i9-10980XE Extreme 18-Core Processor (3.0 - 4.6GHz Boost Clock)
- UP to EVGA GeForce® RTX™ 3090 (XC3 GAMING) Graphics Card
- UP to Kingston 128GB HyperX FURY DDR4 3200MHz Memory
- Redundant 900w Gold-Rated Power Supply
- DYNATRON R17 CPU Cooler
- Thermal Grizzly Kryonaut Thermal Compound
- UP to 2x Samsung 2TB 970 EVO Plus M.2 NVMe SSD
- UP to 4x Samsung 4TB 860 PRO 2.5-Inch SATA SSD
- AJA® Kona 4, AJA® Kona 5, AJA® Corvid 44, AJA® Corvid 44 12G, AJA® Corvid 88, AJA® Io 4k plus
- Windows 10 Pro 64-bit
- AVA Gold (Lifetime Labor / 3-Year Parts / 1-Year Return Shipping OR Advanced Part Replacement)
Don’t see what you’re looking for?
Check out our other Workstation Solutions or Contact our Sales Team Directly to Create your Custom Workstation
