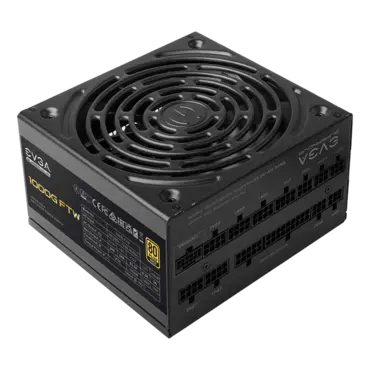

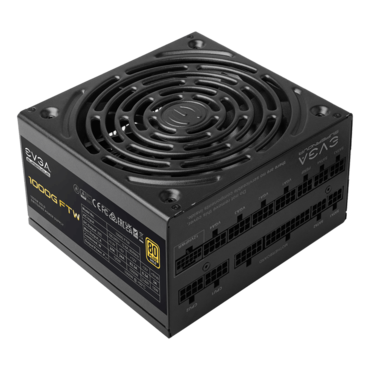

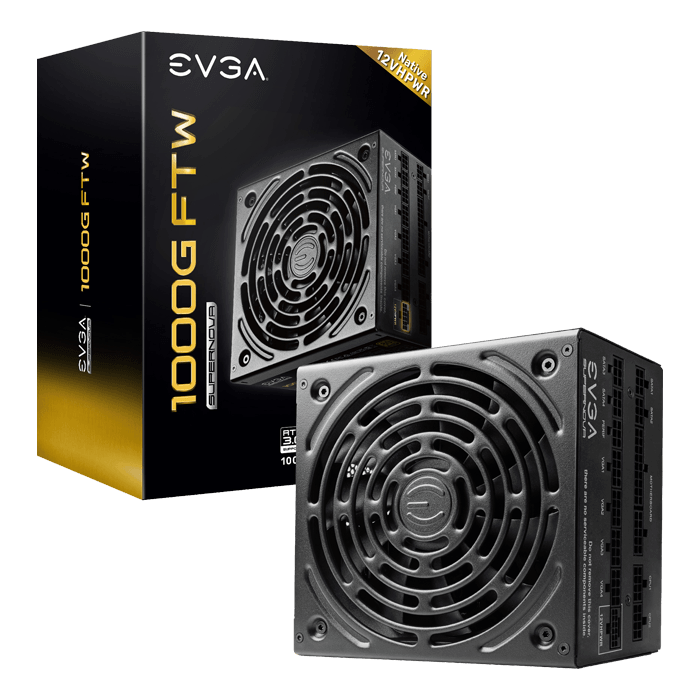

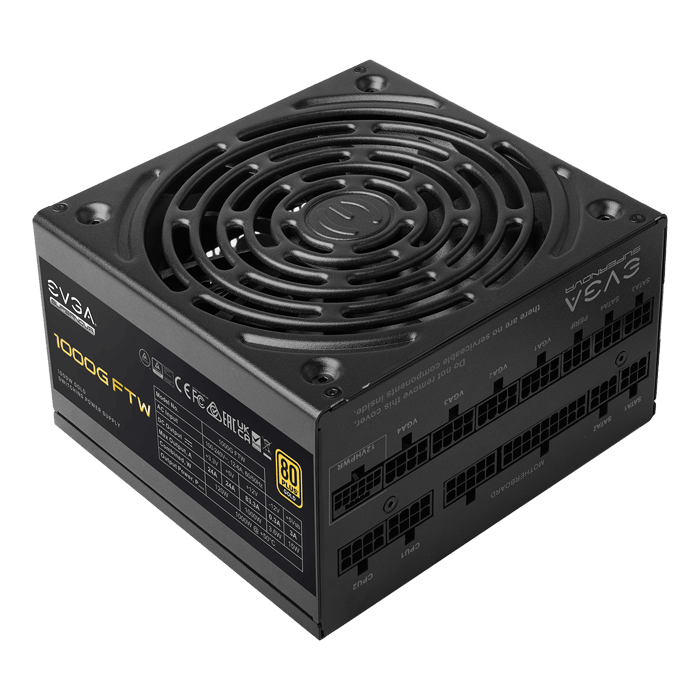

1000G FTW, 80 PLUS Gold 1000W, ECO Mode, Fully Modular, ATX Power Supply
- SKU: 16416388
- Manufacturer: EVGA
- MPN: 535-5G-1000-K1
- Availability: TEMPORARILY OUT OF STOCK
Introducing the EVGA SuperNOVA 1000G FTW - The next-gen power supply designed to meet the needs of today's most powerful PCs. Featuring a half-bridge LLC resonant controller, DC-DC converter, APFC, and 100% Japanese Capacitors, this power supply is extremely stable with low ripple and noise, and 80 Plus Gold-rated for efficiency. The SuperNOVA 1000G FTW is ATX 3.0 compliant and PCIe Gen 5.0-ready, including a native 12VHPWR cable capable of delivering up to 600W output, while supporting up to 235% Total Power Excursion and 300% GPU Power Excursion for PCIe 5.0 graphics cards. An ultra-quiet FDB fan runs completely silent at medium-low loads and temperatures, thanks to EVGA ECO Mode. With a full-suite of protections, and 12VHPWR Smart Thermal Protection, the EVGA SuperNOVA 1000G FTW gives you the peace of mind to push your system to the limits.
- ATX 3.0 Compliant & PCIe 5.0 Ready
- Supports up to 235% Total Power Excursion
- Supports up to 300% GPU Power Excursion
- Smart Thermal Protection will shut down PC if the 12VHPWR connector gets too hot
- 100% Japanese Capacitors ensure long-term reliability
- 80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads
- Half-bridge LLC Resonant Controller and DC-DC design leads to extremely tight voltage regulation and very low ripple & noise
- Fully Modular to reduce clutter and improve airflow
- Fluid Dynamic Bearing Fan for ultra-quiet operation and increased lifespan.

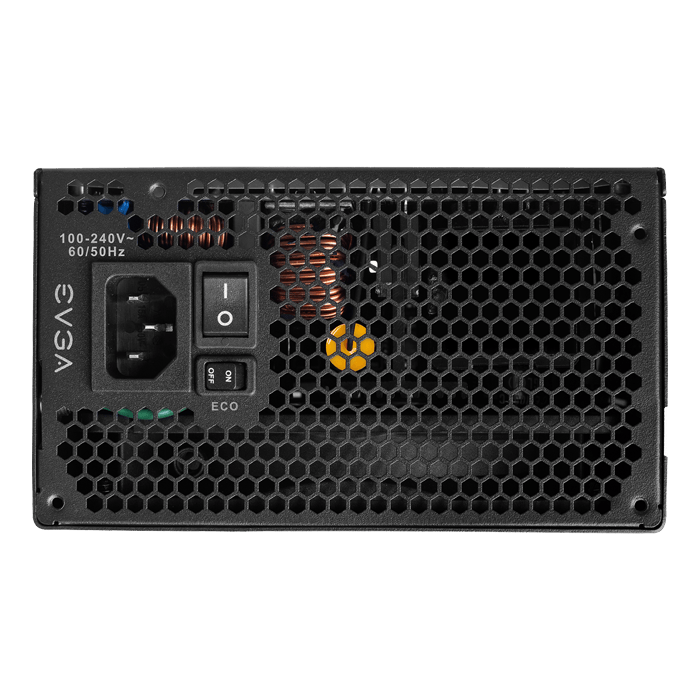

- EVGA ECO Intelligent Thermal Control System eliminates fan noise at low to medium loads
- Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
- Peace of Mind EVGA warranty and support for 3 Years
| CABLE LENGTH | |||||
| ATX Cable | 1x 600mm | ||||
| EPS Cable | 2x 700mm | ||||
| PCIe Cable | 2x 700mm, 2x 700mm, 850mm | ||||
| 12VHPWR Cable | 1x 700mm | ||||
| SATA Cable | 4x 550mm, 670mm, 790mm | ||||
| Four-Pin Peripheral Cable | 1x 450mm, 570mm, 690mm, 810mm | ||||
| AC Power | 1x 1500mm | ||||
| Modular Cable Type | Full | ||||

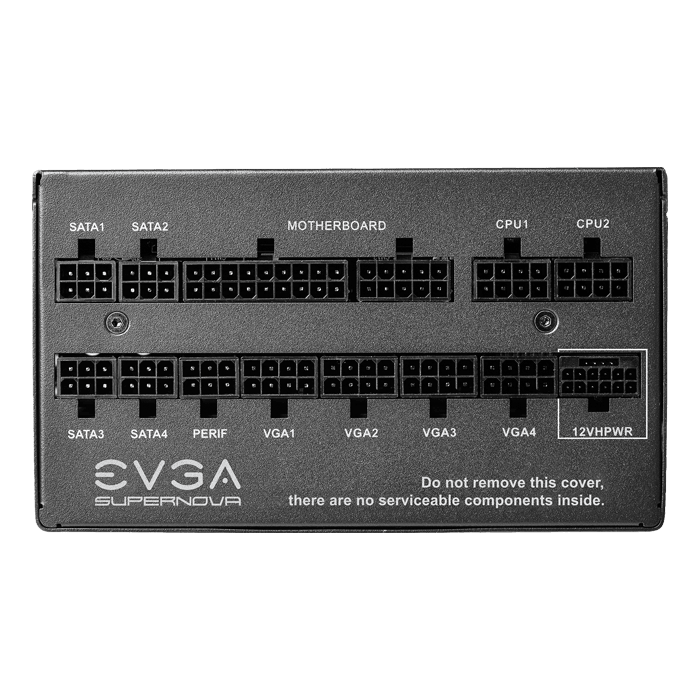

| CONNECTOR QUANTITY | |||||
| 24 Pin ATX | 1x 24pin | ||||
| EPS (CPU) | 2x 8pin (4+4) | ||||
| PCIe | 6x 8pin (6+2) | ||||
| PCIe 12VHPWR | 1x 16pin (12+4) | ||||
| SATA | 12x | ||||
| Four-Pin Peripheral | 4x | ||||
| INPUT | |||||
| Input Voltage | 100-240V~ | ||||
| AC Input | 12-6A | ||||
| Input Frequency Range | 60/50Hz | ||||
| Efficiency | 90% (115VAC) / 92% (220VAC~240VAC) or Higher Typical | ||||
| OUTPUT | |||||

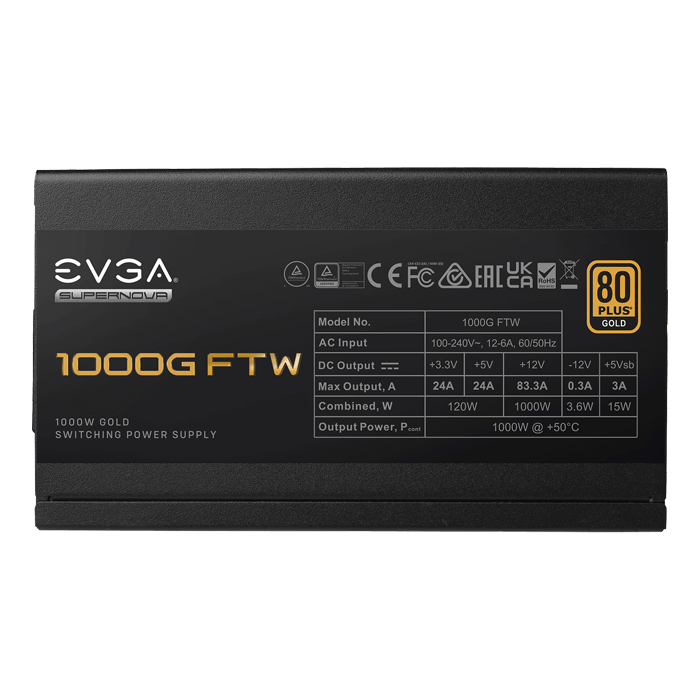

| Rail | +3.3V | +5V | +12V | -12V | +5Vsb |
| Max output | 24A | 24A | 83.3A | 0.3A | 3A |
| 120W | 1000W | 3.6W | 15W | ||
| Total | 1000W | ||||
| ADDITIONAL DETAILS | |||||
| Operating Temperature | 0 to 50° C | ||||
| Japanese Capacitors | 100% | ||||
| ECO Mode | Yes | ||||
| MTBF | 100,000 Hours | ||||
| Gross Weight | 8 lbs | ||||
| Size | 86mm (H) x 150mm (W) x 150mm (L) | ||||
| Approvals | TUV, CB, CE, FCC, RCM, cTUVus, BSMI, WEEE, UKCA, RoHS Compliance with ErP Lot 3 2014 Requirement |
||||
| Fan Size / Bearing | 135mm Fluid Dynamic Bearing | ||||
| UPC | 843368077150 | ||||
| EAN | 4250812447609 | ||||
