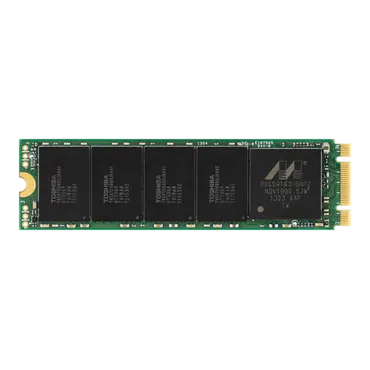

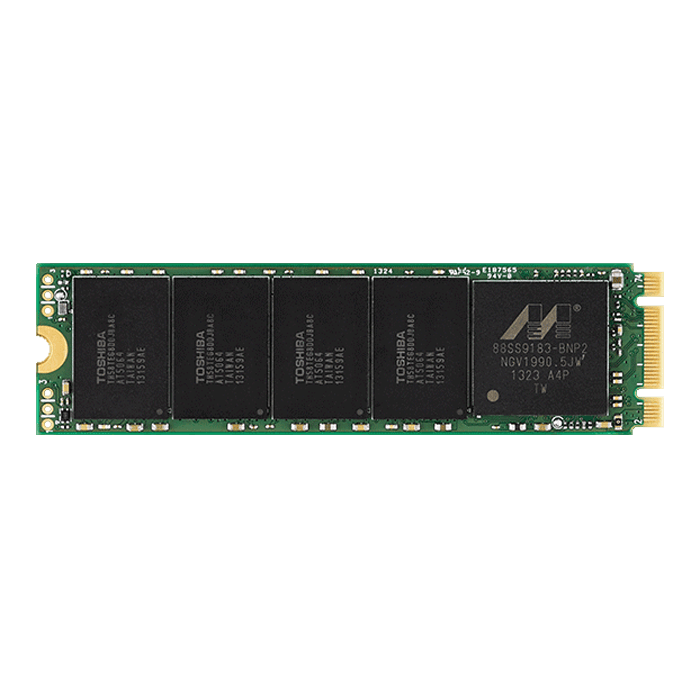

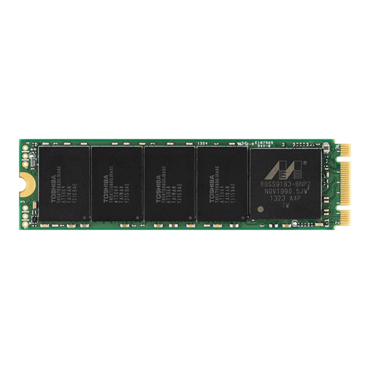

128GB M6e, 770 / 335 MB/s, MLC NAND, SATA 6Gb/s, M.2 2280 SSD
Quantity:
- SKU: 8616703
- Manufacturer: PLEXTOR
- MPN: PX-G128M6E
- Availability: LOW STOCK
Starting At
$30.00
128GB M6e, 770 / 335 MB/s, MLC NAND, SATA 6Gb/s, M.2 2280 SSD
Plextor’s PX-G128M6E 128GB M6e M.2 2280 PCIe Gen2 x2 is an ultra-fast SSD, which uses the latest generation of components and a native PCIe interface for extremely high performance. It is suitable for ultra-thin notebooks and motherboards supporting 2280 sized (80.0mm × 22.0mm) PCIe M.2 SSDs. Gamers and high-power users will appreciate the responsiveness and ultra-fast loading times that the powerful M6e M.2 delivers.
Maximum Performance
- Latest generation Marvell 88SS9183 flash controller with multiple cores for efficient performance during intense gaming
- 770MB/sec read and 625MB/sec write max speeds in sequential mode for easy editing of large files and fast loading of large levels*
- 105K IOPS read and 100K IOPS write random max speeds for fast real-world performance and smooth multi-tasking*
- PCI Express 2.0 x2 interface and native PCIe controller chip eliminates the SATA interface bottleneck
Plextor Quality and Reliability
- Specially selected high-quality components combined with firmware developed in-house by Plextor’s expert engineers
- Extensively tested during development for reliability and compatibility with a market-leading MTBF of 2.4 million hours.
- 100% burn-in and simulated usage testing of each individual drive to ensure maximum stability before it reaches the end user
Plextor Quality and Reliability
- M.2 2280-D5-B-M form factor SSD with dimensions of 80.0mm × 22.0mm × 3.8mm for PCI express (PCIe) M.2 slots
- Driver-free AHCI (Advanced Host Controller Interface) compatibility eliminates the need for additional drivers
- Supports booting on legacy BIOS’s and quick UEFI boot, providing flexibility and compatibility with a wide range of systems
Full Five-year Warranty
- Backed by a full five-year Plextor warranty and international techncal support
| Performance | |||||||
| Model | PX-G128M6e | ||||||
| Capacity | 128GB | ||||||
| DRAM Cache | 256MB DDR3 | ||||||
|
Read/Write Speed (Under Windows NTFS) |
|||||||
| Sequential Read Speed** | Up to 770 MB/s* | ||||||
| Sequential Write Speed** | Up to 335 MB/s* | ||||||
|
Random Read Speed (IOPS 4KB)** |
Up to 96,000* | ||||||
|
Random Write Speed (IOPS 4KB)** |
Up to 83,000* | ||||||
|
*Actual performance may vary based on hardware, software and overall system configuration. |
|||||||
|
**Test Platform: Motherboard: ASUS P14-Z87-PRO / CPU: Intel i5-4570 3.4Ghz / BIOS: ver.1504 / AHCI driver: 6.2.9200.16384 / OS: Windows 7 & 8 x64. |
|||||||
| Environment and Reliability | |||||||
| Temperature | 0°C ~ 70°C (Operating) | ||||||
| Shock | 1500G(Max), At 1 msec half-sine | ||||||
| Vibration | 7 ~ 800Hz, 16.3Grms (Non-operation) | ||||||
| MTBF | >2,400,000 hours | ||||||
| Warranty | 5 years Plextor's Warranty Service | ||||||
| Compatibility | |||||||
| Operating System Supported | Windows 7 x86 / x64, Windows 8 x86 / x64, Windows Server 2008, Windows Server 2012, Linux series, Fedora, SUSE, Ubuntu, Red Hat 6.5 | ||||||
| Agency Approval | BSMI, UL, TUV, C-Tick, CE, KCC, VCCI, FCC, ROHS, CB | ||||||
| Command Set Support | TRIM, S.M.A.R.T., NCQ | ||||||
| DATA Encryption | AES 256 | ||||||
| Firmware Upgrade | Supported | ||||||
| Interface | PCIe Gen2 x 2 | ||||||
| Form Factor and Connectors | |||||||
| Form Factor | M.2 2280-D5-B-M | ||||||
| Power Connector |
|
||||||
| Data Connector | M.2 Connector | ||||||
| Dimension and Weight | |||||||
| Dimension (L x W x H) | 80.0mm x 22.0mm x 3.8mm | ||||||
| Weight | 13g (Max) | ||||||
