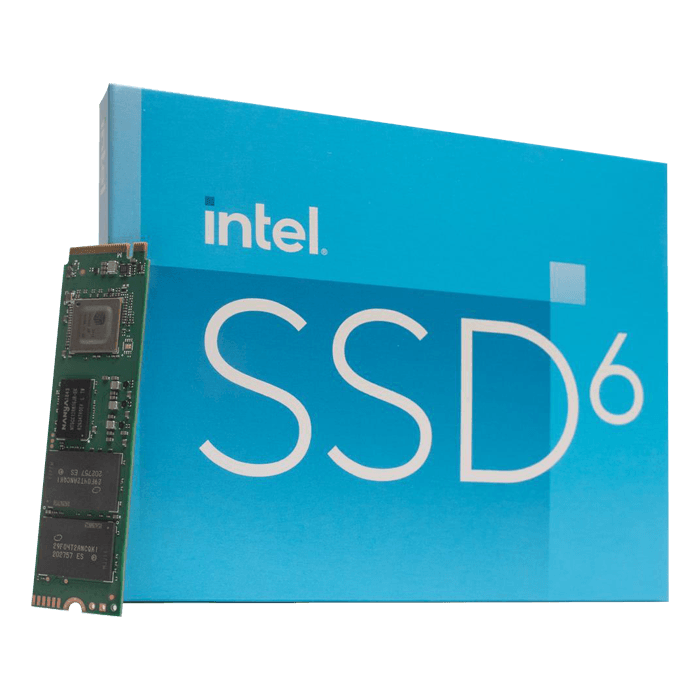

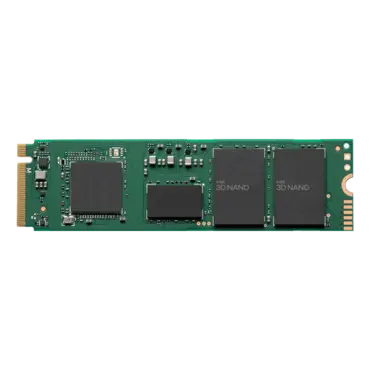

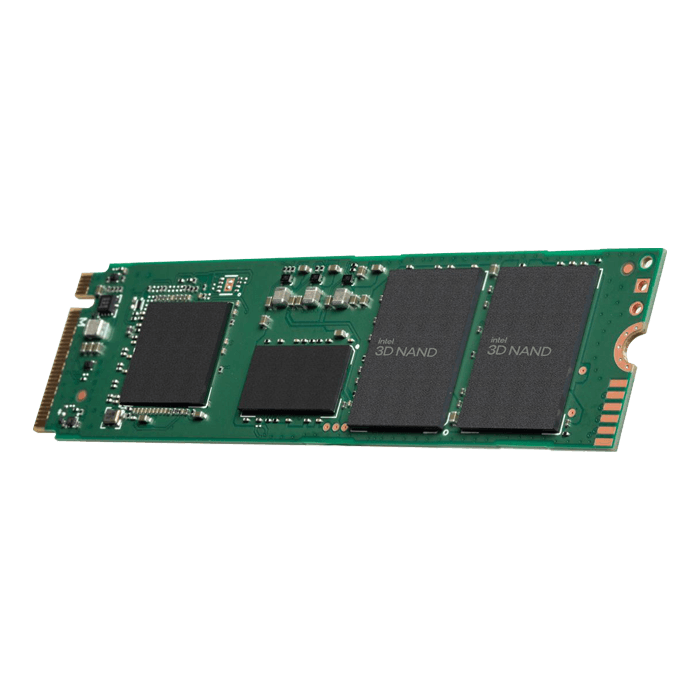

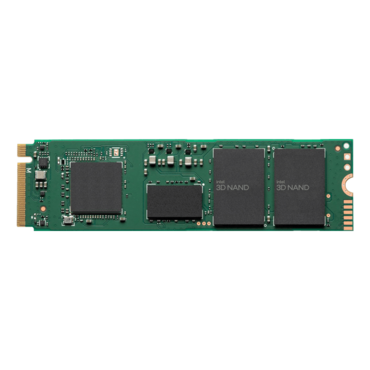

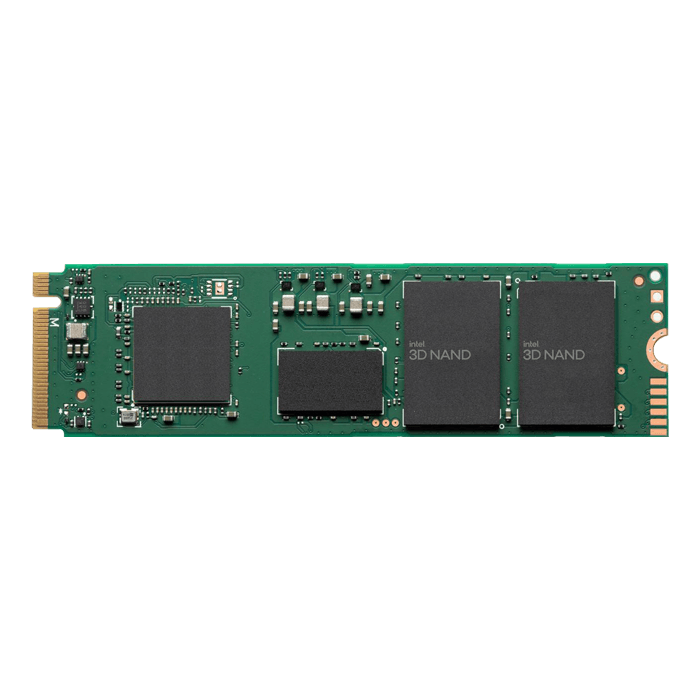

1TB 670p, 3500 / 2500 MB/s, 3D QLC NAND, PCIe NVMe 3.0 x4, M.2 2280 SSD

  • SKU: 13940710
  • Manufacturer: INTEL
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
Product Collection Intel® SSD 6 Series
Code Name Products formerly Keystone Harbor
Capacity 1 TB
Status Launched
Launch Date Q1'21
Lithography Type 3D4 QLC
Use Conditions PC/Client/Tablet
Performance Specifications
Sequential Bandwidth - 100% Read (up to) 3500 MB/s
Sequential Bandwidth - 100% Write (up to) 2500 MB/s
Random Read (8GB Span) (up to) 220000 IOPS
Random Write (8GB Span) (up to) 330000 IOPS
Power - Active 80 mW
Power - Idle 25 mW
Vibration - Operating 2.17 GRMS (5-700 Hz) Max
Vibration - Non-Operating 3.13 GRMS (5-800 Hz) Max
Shock (Operating and Non-Operating) 1,000 G (Max) at 0.5 msec Operating---1,500 G (Max) at 0.5 msec non-operating
Operating Temperature Range 0°C to 70°C
Operating Temperature (Maximum) 70 °C
Operating Temperature (Minimum) 0 °C
Endurance Rating (Lifetime Writes) 370
Mean Time Between Failures (MTBF) 1.6 million hours
Uncorrectable Bit Error Rate (UBER) <1 sector per 10^15 bits read
Warranty Period 5 yrs
Package Specifications
Form Factor M.2 22 x 80mm
Interface PCIe 3.0 x4, NVMe
Advanced Technologies
Enhanced Power Loss Data Protection No
Hardware Encryption AES 256 bit
High Endurance Technology (HET) No
Temperature Monitoring and Logging No
End-to-End Data Protection Yes
Intel® Smart Response Technology Yes
Intel® Rapid Start Technology Yes
Intel® Remote Secure Erase No
