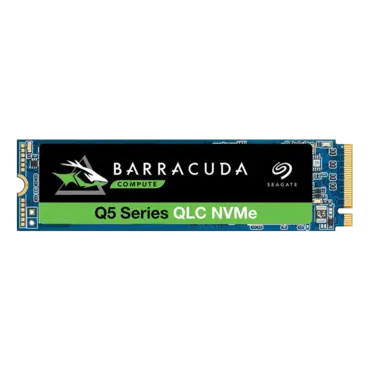

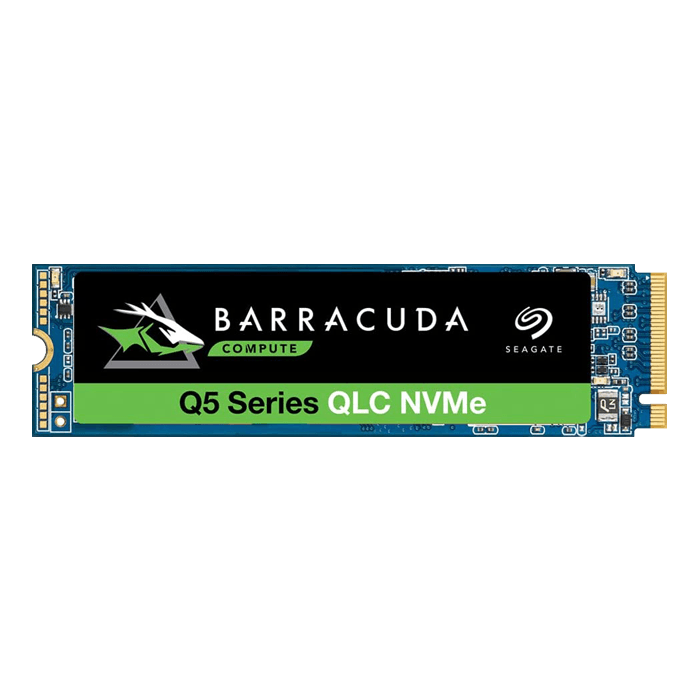

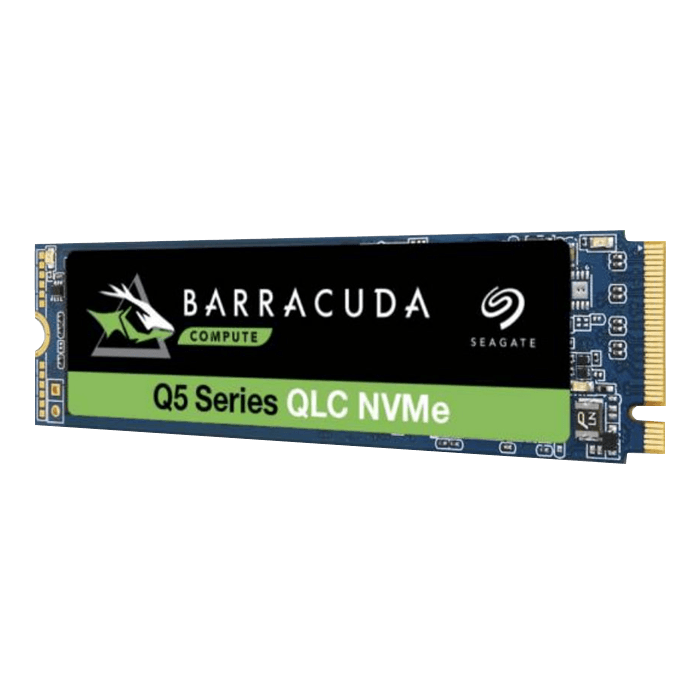

1TB BarraCuda Q5, 2400 / 1700 MB/s, 3D QLC NAND, PCIe NVMe 3.0 x4, M.2 2280 SSD
Upgrade your PC with the Seagate® BarraCuda™ Q5 NVMe SSD and unleash performance speeds up to 50× faster than traditional HDDs. Designed with the latest 3D QLC NAND technology, BarraCuda Q5’s slim M.2 2280 form factor provides optimal compatibility and easy plug-and-play installation.
Specifications | |
Capacity | 1 TB |
Standard Model | ZP1000CV3A001 |
Interface | PCIe Gen3 ×4 NVMe 1.3 |
NAND Flash Memory | 3D QLC |
Form Factor | M.2 2280-S2 |
Performance | |
Sequential Read (Max, MB/s), 128 KB1 | 2 400 |
Sequential Write (Max, MB/s), 128 KB1 | 1 700 |
Endurance/Reliability | |
Total Bytes Written (TB) | 274 |
Mean Time Between Failures (MTBF, hours) | 1 800 000 |
Warranty, Limited (years) | 3 |
Rescue Data Recovery Services (years) | 1 |
Power Management | |
Active Power, Average (W) | 3,1 |
Idle Power PS3, Average (mW) | 27 |
Low Power L1.2 mode (mW) | 1,6 |
Environmental | |
Temperature, Operating Internal (°C) | 0 to 70 |
Temperature, Non-operating (°C) | –40 to 85 |
Shock, Non-operating: 0.5 ms (Gs) | 1 500 |
Special Features | |
TRIM | Yes |
S.M.A.R.T. | Yes |
Halogen-free | Yes |
RoHS compliance | Yes |
Physical | |
Height (mm/in, max) | 2.15 mm/0.084 in |
Width (mm/in, max) | 22.00 mm/0.866 in |
Depth (mm/in, max) | 80.00 mm/3.149 in |
Weight (lb/g) | 7 g/0.015 lb |
