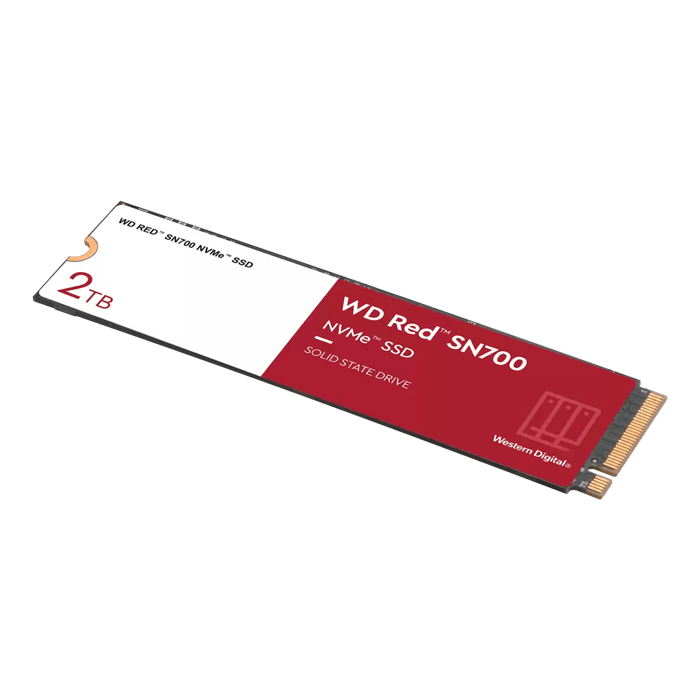

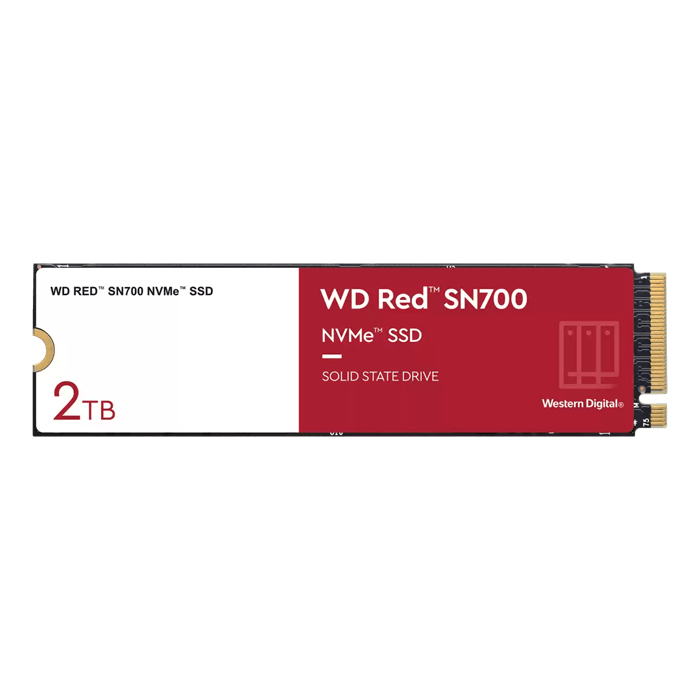

2TB Red SN700, 3400 / 2900 MB/s, 3D NAND, PCIe NVMe 3.0 x4, M.2 2280 SSD
- SKU: 14642097
- Manufacturer: WESTERN DIGITAL
- MPN: WDS200T1R0C
- Availability: TEMPORARILY OUT OF STOCK
NVMe Solid-State Drive for NAS Devices
Tackle extreme workloads in high-intensity NAS environments with the fast-caching WD Red™ SN700 NVMe™ SSD. This powerful drive is engineered to support 24/7 environments and always-on applications with the ultimate in reliability and endurance. Its robust system responsiveness and exceptional I/O performance are perfect for multi-user, multitasking applications, letting you tame your SMB’s toughest projects from virtualization to collaborative editing to intensive database storage with efficient caching—all while helping to lower your TCO. Take your small-to-medium business to the next level with NVMe technology, fast speeds and huge capacities in a drive purpose-built and tested for NAS. That’s the power of WD Red.
- Robust system responsiveness and exceptional I/O performance
- Tackle NAS workloads with exceptional reliability and endurance
- Tame tough projects like virtualization and collaborative editing
- Perfect for multitasking applications with multiple users
- Scale your NAS device with huge capacities up to 4TB
- Purpose-built and tested to be compatible with popular NAS systems
| General Specifications | |
| Formatted Capacity | 2TB |
| Model Number | WDS200T1R0C |
| Form Factor | M.2 2280-S3-M |
| Interface |
PCIe Gen3 8 Gb/s, up to 4 Lanes |
| Length | 80 ± 0.15mm |
| Width | 22 ± 0.15mm |
| Height | 2.38mm |
| Weight | 7.5g ± 1g |
| Performance | |
|
Sequential Read up to (MB/s) (Queues=32, Threads=1) |
3,400 |
|
Sequential Write up to (MB/s) (Queues=32, Threads=1) |
2,900 |
|
Random Read up to 4KB (IOPS) (Queues = 32, Threads = 1) |
480K |
|
Random Write up to 4KB (IOPS) (Queues = 32, Threads = 1) |
540K |
| Endurance (TBW) | 2,500 |
| Power | |
| Peak Power (10μs) | 2.8A |
| PS3 (low power) | 100mW |
| PS4 (Sleep)(low power) | 5mW |
| Reliability | |
| MTTF (hours) | 1,750,000 hours (Telcordia SR-332, GB, 40°C) |
| Environmental | |
| Operating Temperatures |
32ºF to 158ºF (0ºC to 70ºC) |
| Non-Operating Temperatures |
-67ºF to 185ºF (-55ºC to 85ºC) |
| Certifications |
FCC, UL, TUV, KCC, BSMI, VCCI, C-Tick |
| Limited Warranty | 5 years |
