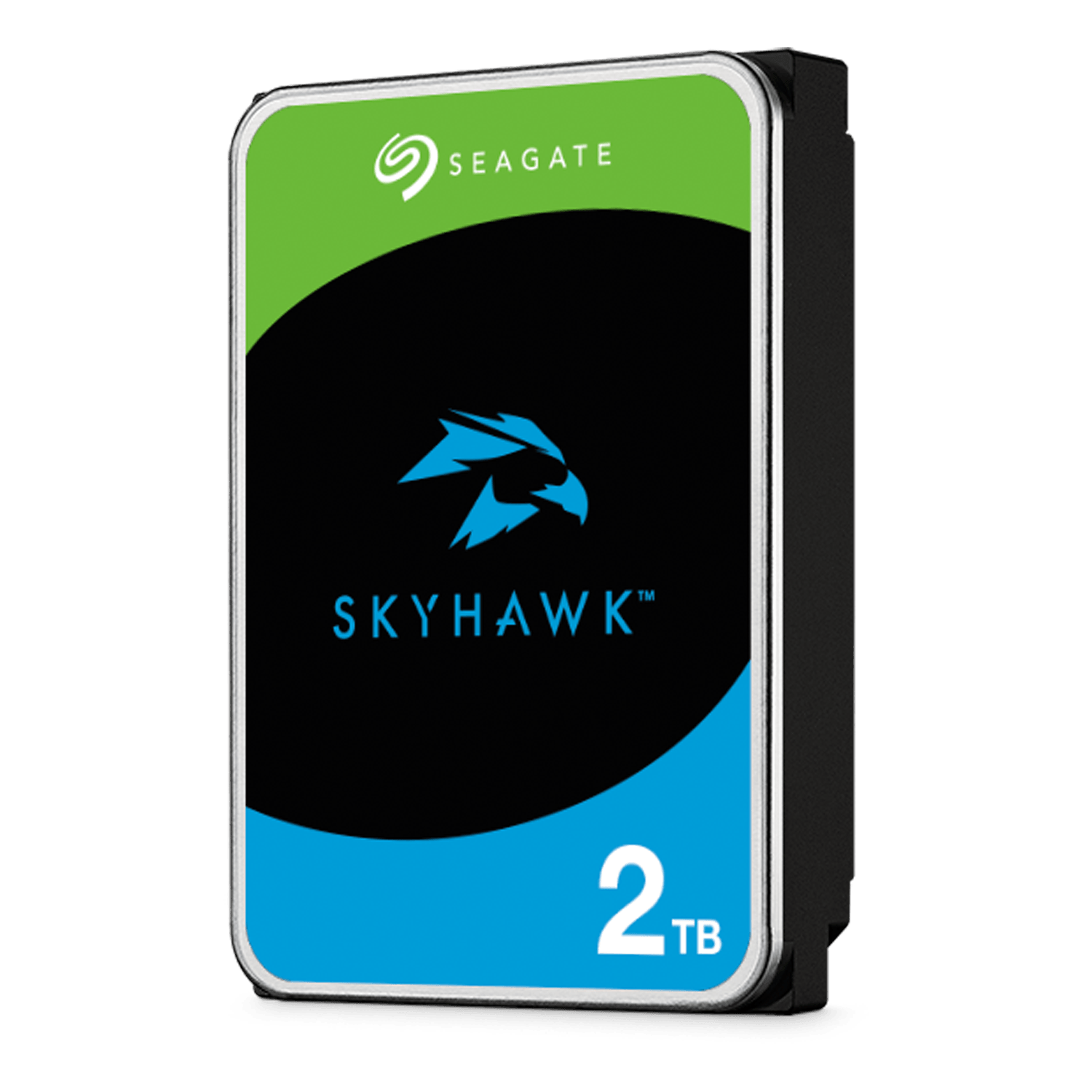

2TB SkyHawk™ ST2000VX017, CMR, 5400 RPM, SATA 6Gb/s, 256MB cache, 3.5" HDD
- SKU: 15697748
- Manufacturer: SEAGATE
- MPN: ST2000VX017
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Price
$75.38
| Specifications | |
| Capacity | 2TB |
| Standard Model Numbers with SRS | ST2000VX017 |
| SkyHawk™ Health Management Included | Yes |
| Interface | SATA 6 Gb/s |
| Recording Technology | CMR |
| Drive Design | Air |
| Features | |
| Drive Bays Supported | Up to 8 |
| Cameras Supported | Up to 64 |
| RV Sensors | - |
| Max Sustained Transfer Rate OD (MB/s) | 180MB/s |
| Cache (MB) | 256MB |
| Reliability/Data Integrity | |
| Tarnish Resistant | Yes |
| Load/Unload Cycles | 600,000 |
| Non-recoverable Read Errors Rate, Max | 1 per 10E14 |
| Power-On Hours per year | 8760 |
| Workload Rate Limit (WRL) | 180 |
| Mean Time Between Failures (MTBF) (hours) | 1000000 hr |
| Warranty, Limited (years) | 3 |
| Rescue Data Recovery Services (years) | 3 |
| Performance | |
| Startup Current, Typical (12V, A) | 1.8 A |
| Average Operating Power (W) | 3.7 W |
| Idling Average (W) | 2.5 W |
| Standby Mode/Sleep Mode, Typical (W) | 0.25 W |
| Voltage Tolerance (5 V) | ±5% |
| Voltage Tolerance (12 V) | ±10% |
| Power Consumption | |
| Idle A (W) Average | 4.4 W |
| Max Operating, Random Read/Write 4K/16Q (W) | 8.6, 5.8 |
| Power Supply Requirements | +12 V and +5 V |
| Environmental | |
| Temperature, Operating (°C) | 0°C |
| Operating (drive reported, max °C) | 65°C |
| Non-operating (ambient, min °C) | -40°C |
| Physical | |
| Height (mm/in, max) | 20.20 mm/0.795 in |
| Width (mm/in, max) | 101.6 mm/4.00 in |
| Depth (mm/in, max) | 146.99 mm/5.787 in |
| Weight (g/lb) | 415 g/0.915 lb |
| Carton Unit Quantity | 25 |
| Cartons per Pallet/Cartons per Layer | 40/8 |
