500GB FireCuda 530 Heatsink, 7000 / 3000 MB/s, 3D TLC NAND, PCIe NVMe 4.0 x4, M.2 2280 SSD

  • SKU: 14630293
  • Manufacturer: SEAGATE
  • MPN: ZP500GM3A023
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
500GB FireCuda 530 Heatsink, 7000 / 3000 MB/s, 3D TLC NAND, PCIe NVMe 4.0 x4, M.2 2280 SSD

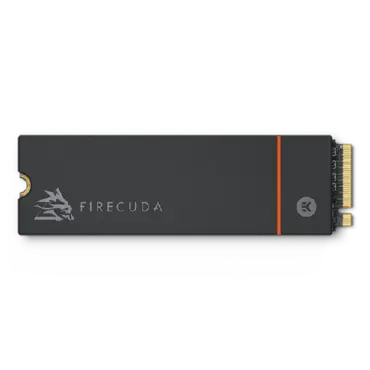

FireCuda 530 Heatsink 500GB

FireCuda 530 with heatsink offers a minimalist design, anodized aluminum body, and finely textured micropore surface to improve heat transfer and lower SSD temps—making it super-efficient at maximum cooling to maintain peak performance for longer periods of time.
FireCuda 530 with heatsink is also compatible with PS5™ systems. Our built-in SSD and heatsink combo meets PS5 specs on performance and dimensions.

  • Blistering transfer speeds of up to 7300MB/s
  • Absolute power to make content creations apps run faster and smoother
  • Lightning-fast video rendering and exporting
  • Responsive performance built for accelerated gaming and sustained abuse—record, download, rewrite, repeat
Specifications 500GB
Standard Model (TCG Pyrite) ZP500GM30023
Interface PCIe Gen4 ×4 NVMe 1.4
NAND Flash Memory 3D TLC
Form Factor M.2 2280 with heatsink 1
Sequential Read (Max, MB/s), 128KB2 7000
Sequential Write (Max, MB/s), 128KB2 3000
Random Read (Max, IOPS), 4KB QD32
400 000
Random Write (Max, IOPS), 4KB QD32
700 000
Total Bytes Written (TB) 640
Mean Time Between Failures (MTBF, hours) 1 800 000
Rescue Data Recovery Services
Warranty, Limited (years) 5
Power Management
Active Power, Average (W) 5,8
Idle Power PS3, Average (mW) 14
Low Power L1.2 mode (mW) <5
Temperature, Operating Internal (°C) 0°C – 70°C
Temperature, Nonoperating (°C) -40°C – 85°C
Shock, Nonoperating: 0.5ms (Gs) 1500
Special Features
S.M.A.R.T. Yes
Halogen Free Yes
RoHS Compliance Yes
Length (mm/in, max) 80.15mm/3.156in
Width (mm/in, max) 24.2mm/0.953in
Height (mm/in, max) 9.84mm/0.388in
Weight (g/lb) 47g/0.104lb
1 Please verify that your system provides enough space for installation. The FireCuda 530 with heatsink exceeds dimensions of a standard M.2 2280 form factor. Heatsink is pre-installed and should not be removed
as it can damage the SSD.
2 Fresh out of box (FOB) performance obtained on newly formatted drive. Performance may vary based on SSD’s firmware version, system hardware, and configuration. Performance based on CrystalDiskMark v.7.0.0 x64 on Windows 10 host with PCIe Gen4 motherboard.
3 Rescue Data Recovery Services not available in all countries.
