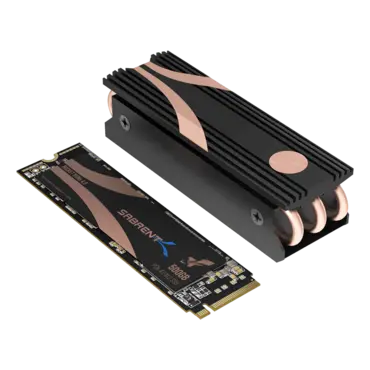

500GB Rocket, w/ Heatsink, 5000 / 2500 MB/s, 3D TLC NAND, PCIe NVMe 4.0 x4, M.2 2280 SSD
Quantity:
- SKU: 13261479
- Manufacturer: SABRENT
- MPN: SB-ROCKET-NVMe4-HTSK-500
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$93.13
500GB Rocket, w/ Heatsink, 5000 / 2500 MB/s, 3D TLC NAND, PCIe NVMe 4.0 x4, M.2 2280 SSD
The Sabrent 500GB Rocket Nvme PCIe 4.0 M.2 2280 Internal SSD Maximum Performance Solid State Drive With Heatsink (SB-ROCKET-NVMe4-HTSK-500) delivers all the advantages of flash disk technology with PCIe Gen4.0 x4 interface.
Based on Toshiba’s BiCS4 96L TLC NAND Flash memory, its performance speeds can reach up to 5000 MB/s (read) and 2500 MB/s (write) when using a PCIe Gen4 motherboard. Using a PCIe Gen3 Motherboard Speeds will reach up to 3400 MB/s (read) and 2500 MB/s (write). Power consumption is much lower than traditional hard drives, making it the best embedded solution for new systems.
- NVMe M.2 PCIe Gen4 x4 Interface.
- PCIe 4.0 Compliant / NVMe 1.3 Compliant.
- Power Management Support for APST / ASPM / L1.2.
- Supports SMART and TRIM commands.
- Supports ONFi 2.3, ONFi 3.0, ONFi 3.2 and ONFi 4.0 interface.
- Advanced Wear Leveling, Bad Block Management, Error Correction Code, and Over-Provision.
- Preinstalled Rocket NVMe Heatsink.
- Upgradeable Firmware.
| Model | |
| Brand | Sabrent |
| Series | ROCKET NVMe 4.0 |
| Device Type | Internal Solid State Drive (SSD) |
| Used For | Consumer |
| Details | |
| Form Factor | M.2 2280 |
| Capacity | 500GB |
| Memory Components | 3D TLC NAND |
| Interface | PCI-Express 4.0 x4 |
| Controller | Phison PS5016-E16 |
| Performance | |
| Max Sequential Read | Up to 5000 MBps |
| Max Sequential Write | Up to 2500 MBps |
| 4KB Random Read | Up to 400,000 IOPS |
| 4KB Random Write | Up to 550,000 IOPS |
| MTBF | 1,700,000 hours |
| HeatSink | Yes |
| Environmental | |
| Operating Temperature | 0°C ~ +70°C |
| Storage Temperature | -40°C ~ +85°C |
| Max Shock Resistance | 1500G |
| Group | |
| Option | With Heatsink |
| Additional Information | |
| Date First Available | December 06, 2019 |
