750 N1, 750W, No Modular, ATX Power Supply
Quantity:
- SKU: 10845973
- Manufacturer: EVGA
- MPN: 100-N1-0750-L1
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$64.99
750 N1, 750W, No Modular, ATX Power Supply
When building on a budget, the EVGA 750W power supply is a great choice at a low cost. Supporting 59A on a single +12V rail provides more options without having to reduce your component requirements. The EVGA 750W offers the connections and protections needed for basic system builds. With a standard 2 year warranty and ultra quiet fan design the EVGA 750W power supply will be a great asset for your next build on a budget.
- Quiet and Intelligent Auto Fan for near-silent operation
- Heavy-duty protections, including OVP (Over Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
CABLE LENGTH
| ATX Cable | 1x 550mm |
| EPS Cable | 1x 600mm |
| PCIE Cable | 1x 550mm, 670mm |
| SATA Cable | 3x 450mm, 570mm, 690mm |
| Four-Pin Peripheral Cable | 1x 450mm, 570mm, 690mm (f) |
| Floppy Adapter | 1x 120mm |
| AC Power | 1x 1200mm (m) |
| Modular Cable Type | No |
CONNECTOR QUANTITY
| 24 Pin ATX | 1x |
| EPS (CPU) | 1x 8pin (4+4) |
| PCIE | 2x 8pin (6+2) |
| SATA | 9x |
| Four-Pin Peripheral | 3x |
| Floppy | 1x |
INPUT
| Input Voltage | 100 - 240 VAC |
| AC Input | 8-4A |
| Input Frequency Range | 50 - 60 Hz |
| Efficiency | 75% Typical |
OUTPUT

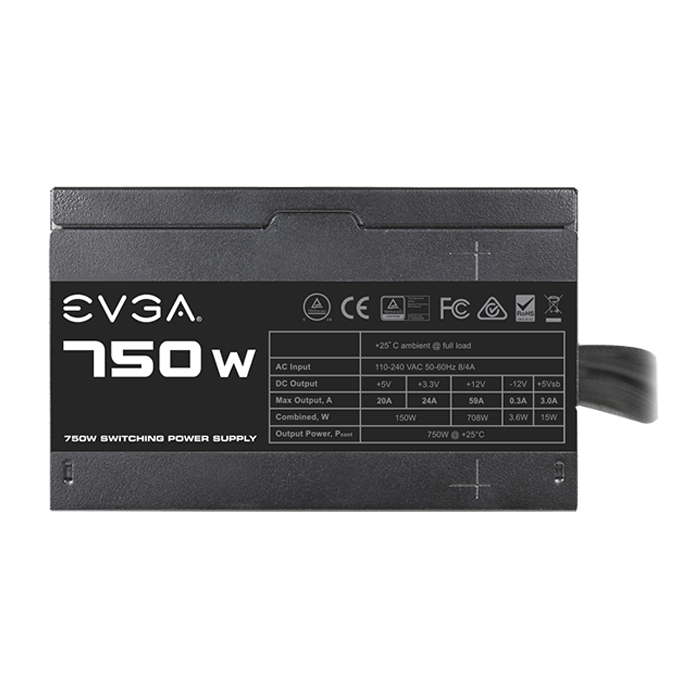

| Rail | +3.3V | +5V | +12V | +5Vsb | -12V |
| Max output | 24A | 20A | 59A | 3A | 0.3A |
| 59A | |||||
| 120W | 708W | 15W | 3.6W | ||
| Total | 750W @ +25C | ||||
ADDITIONAL DETAILS
| Operating Temperature | 0° to 25° C |
| Japanese Capacitors | No |
| ECO Mode | No |
| MTBF | 100,000 Hours |
| Net Weight | 3 lbs |
| Size | 85mm (H) x 150mm (W) x 140mm (L) |
| Approvals | TUV, cUL, CE, FCC, BSMI, CCC, WEEE, RoHS |
| Fan Size / Bearing | 120mm Sleeve Bearing |
