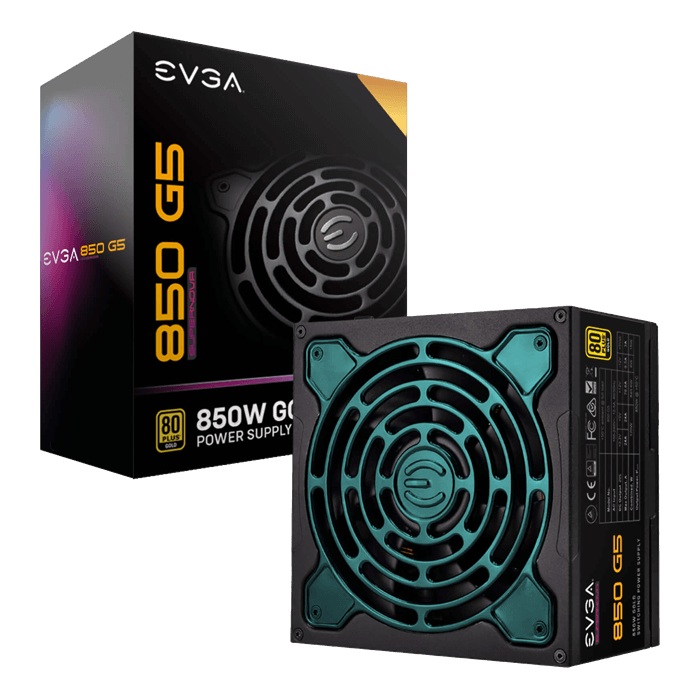

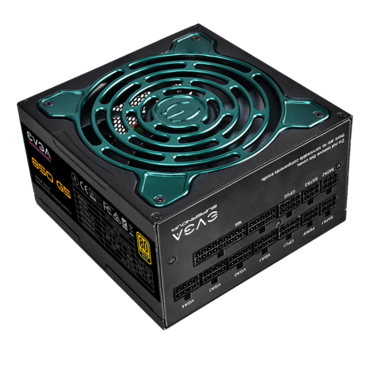

850 G5, 80 PLUS Gold 850W, ECO Mode, Fully Modular, ATX Power Supply

Quantity:
  • SKU: 12968159
  • Manufacturer: EVGA
  • MPN: 220-G5-0850-X1
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$145.67
Quantity:

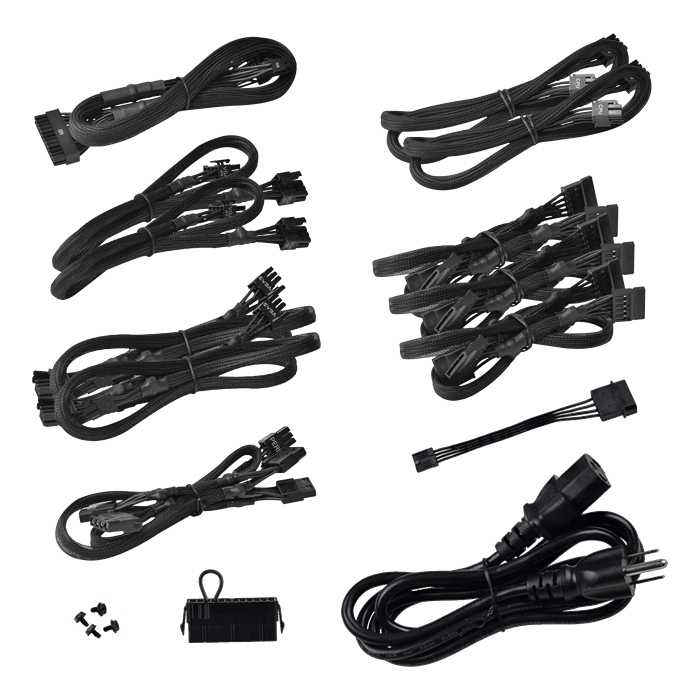

CABLE LENGTH

ATX Cable 1x 600mm (m)
EPS Cable 2x 700mm (m)
PCIe Cable 2x 700mm, 2x 700mm, 850mm (m)
SATA Cable 3x 550mm, 650mm, 750mm (m)
Four-Pin Peripheral Cable 1x 550mm, 650mm, 750mm, 850mm (m)
Floppy Adapter 1x 100mm
AC Power 1x 1500mm (m)
Modular Cable Type Full

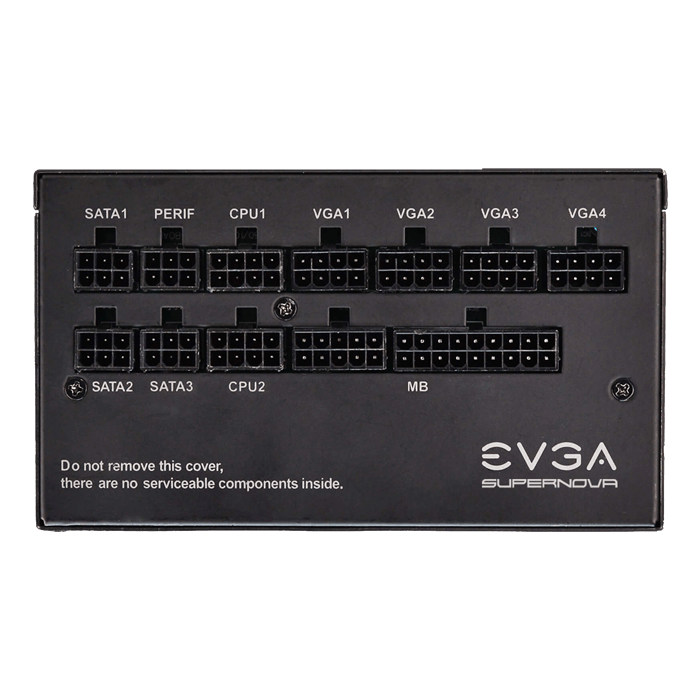

CONNECTOR QUANTITY

24 Pin ATX 1x 24pin (20+4)
EPS (CPU) 2x 8pin (4+4)
PCIe 6x 8pin (6+2)
SATA 9x
Four-Pin Peripheral 4x
Floppy 1x

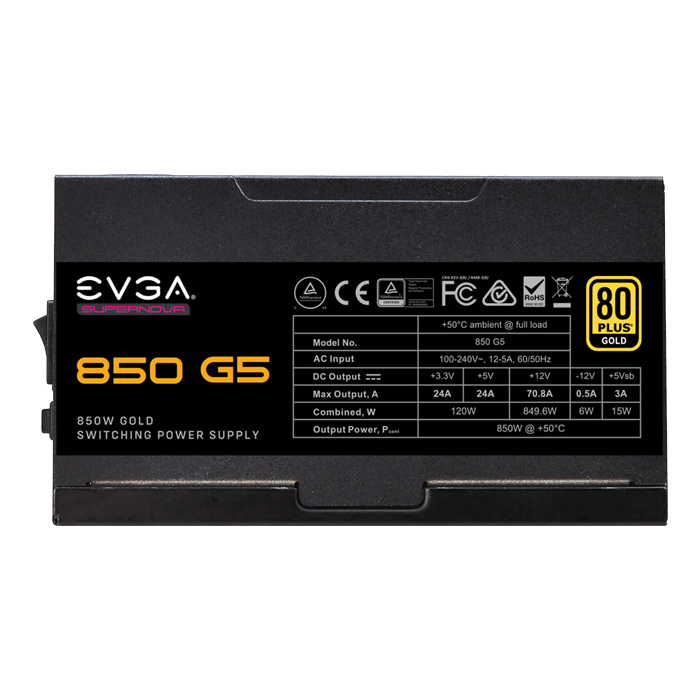

POWER SPECS

AC Input 100 - 240 VAC, 12-5A, 50/60 Hz
Rail +3.3V +5V +12V +5Vsb -12V
Max Output 24A 24A 70.8A 3A 0.5A
849.2W
120W 849.2W 15W 6W
Total 850W @ +50C

ADDITIONAL DETAILS

Operating Temperature 0° to 50° C
Japanese Capacitors 100%
ECO Mode Yes
MTBF 100,000 Hours
Net Weight 7 lbs
Size 86mm (H) x 150mm (W) x 150mm (L)
Approvals TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS
Compliance with ErP Lot 3 2014 Requirement
Fan Size / Bearing 135mm Fluid Dynamic Bearing
