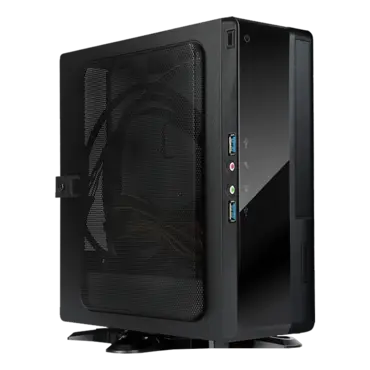

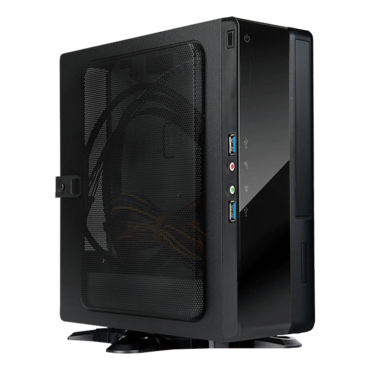

IN WIN BQ656S (BQ656T.AD150TB3). Dual Layer Interior Structure. The BQ Series uses an advanced dual layer interior structure design. The spacious interior supports a DVD Drive, Hard Drive, and 3-in-1 Card Reader.
Model | BQ656S |
MB Form Factor | Mini-ITX |
Case Size |
3.3L S.F.F Slim Chassis (Ultra Small Form Factor) |
Color | Black |
External Drive Bays | Slim ODD x 1 or 2.5” HDD x 1 |
Internal Drive Bays | 2.5" HDD x 1 |
Front Ports |
USB 2.0 x 2 (or USB 3.0 x 2), HD Audio |
Product Dimensions (H x W x D) with Front Panel |
225 x 87 x 281 mm 8.9” x 3.4” x 11.1” Vertical: 246 x 129 x 281 mm (with Foot Stand) Horizontal: 107 x 246 x 281 mm (with Foot Stand) |
Product Dimensions (H x W x D) w/o Front Panel |
225 x 76 x 193 mm (3.3L) 8.9" x 3.0" x 7.6" |
I/O Expansion Slots | N/A |
Power Supply |
.Option 1: 150W Internal PSU (IP-AD150A7-2) .Option 2: DC-DC Inverter Board (IP-V120DD) + 120W External Adaptor |
Thermal Solution | N/A |
Safety | Meets RoHS, CE and FCC Class B Requirements |
Security | Kensington Slot |
Optional |
.3-in-1 Card Reader .2.5” Drive Bay x 1 .Security Screws .External Remote Control .USB 3.0 x 2 or USB 2.0 |
Packing Dimensions (H x W x D) |
273 x 270 x 120 mm (10.7” x 10.6” x 4.7”) 334 x 270 x 120 mm (with Adaptor) |
Shipping Information |
Single Packing: - 20': 3,192, 40': 6,536, 40' H: 7,310 (w/o Adaptor) - 20': 2,450, 40': 5,145, 40' H: 5,957 (with Adaptor) Single Packing + Pallets: - 20': 2,240, 40': 4,928, 40' H: 5,632 (w/o Adaptor) - 20': 2,016, 40': 4,368, 40' H: 5,096 (with Adaptor) |
