DX30, Intel J3355, 2x DDR3L SO-DIMM, 2.5" HDD/SSD, Intel HD Graphics 500, Mini PC Barebone
Quantity:
- SKU: 10974853
- Manufacturer: SHUTTLE
- MPN: DX30
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$265.06
| FORM FACTOR | 1.3L slim form factor |
|---|---|
| PROCESSOR | Intel Apollo Lake J3355 CPU Processor |
| MEMORY | 2 x DDR3L SO-DIMM, supports up to 8GB DDR3L 1866 MHz |
| VIDEO OUTPUT | Intel generation HD Graphic engine |
| AUDIO | Realtek ALC662 2 channel High Definition Audio |
| ETHERNET | Intel i211 Gigabit LAN controller Supports 10/100/1000 Mb/Sec. Support wake ON LAN (WOL) feature 802.11b/g/n WLAN support (1T1R) |
| STORAGE INTERFACE | SATA for HDD/SSD SD card reader |

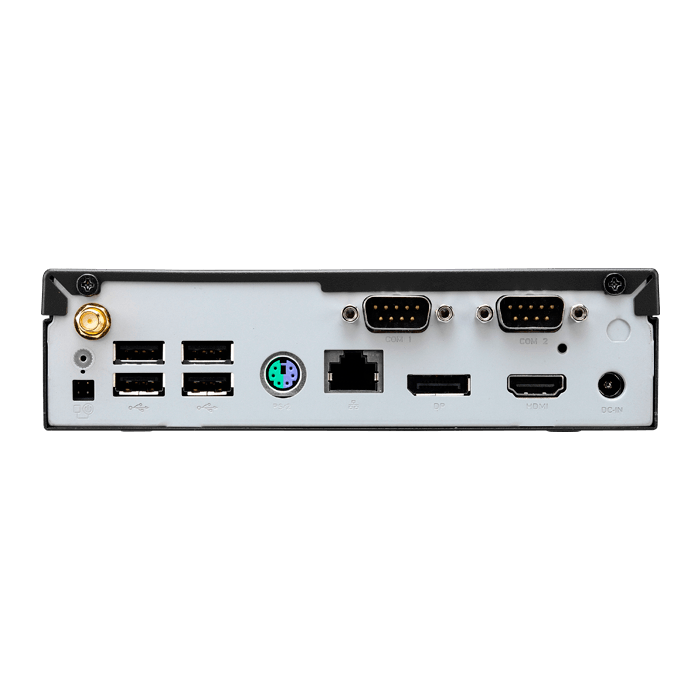

| BACK PANEL | (1) RJ45 Gigabit LAN port (1) HDMI port (1) Display port (4) USB 2.0 ports (1) DC in (1) RS232/RS422/RS485 (1) RS232 (1) External power on/Clear CMOS header (1) PS/2 Port (1) Connectors for WLAN antenna |
| DRIVE BAYS | (1) 2.5" HDD Max.(9.5mm) / SSD bay |
| DIMENSIONS | 190(L) x 165(W) x 43(H) mm |
| POWER | Input:100- 240V AC Output: 19V/2.1A or 12V/3.33A DC 40W 19V Adapter bundled |
| ACCESSORIES | " Optional " PVG01 (VGA output) |
| EXPANSION SLOT | (1) M.2 Type M (2280) (1) M.2 Type A/E (2230) |
| OS SUPPORT | Windows 10 64 bit O.S Ubuntu Linux O.S |
