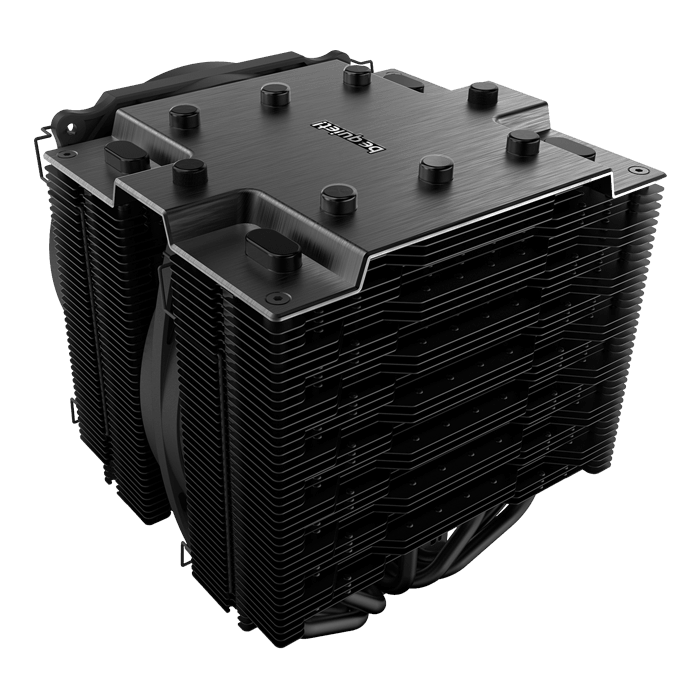

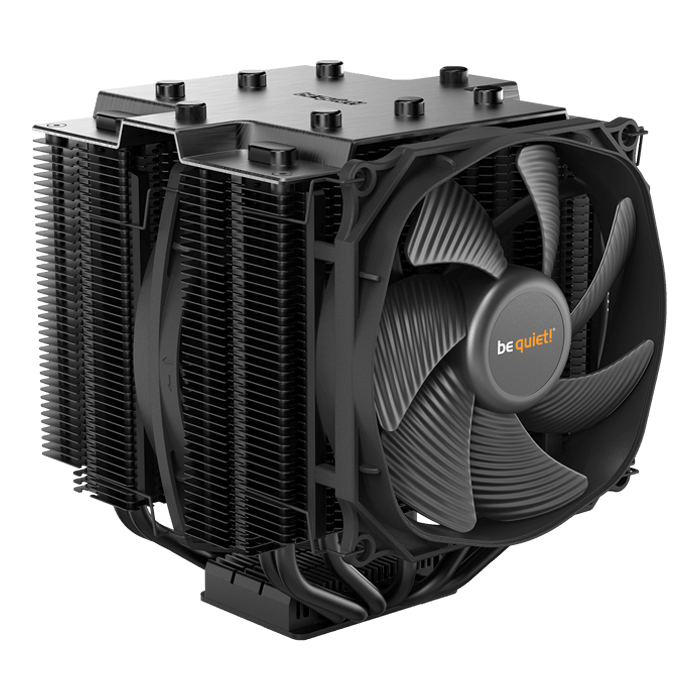

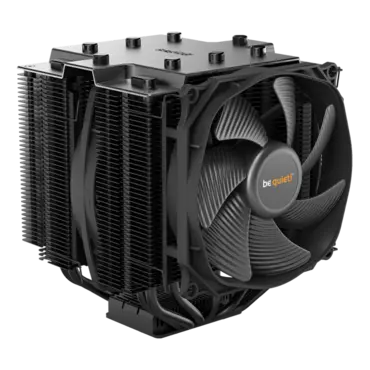

Dark Rock Pro TR4, 163mm Height, 250W TDP, Copper/Aluminum CPU Cooler
Quantity:
- SKU: 12559294
- Manufacturer: be quiet!
- MPN: BK023
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$89.90
Dark Rock Pro TR4, 163mm Height, 250W TDP, Copper/Aluminum CPU Cooler
Dark Rock Pro TR4 offers an immense cooling performance of 250W TDP and virtually inaudible operation. Excellent for high-end systems and demanding workstations.
- Designed for AMD TR4 only
- Two virtually inaudible Silent Wings PWM fans
- Funnel-shaped frame of the front fan for high air pressure
- Achieves only 24.3dB(A) at maximum fan speed
- Seven high-performance copper heat pipes
- Airflow-optimized cooling fins; cutouts enhance the RAM compatibility
- Easily installable black installation kit can be mounted from above
- Brushed aluminum top cover with diamond cut finish
- 3-year manufacturer’s warranty
| General data | |
|---|---|
| Model | Dark Rock Pro TR4 |
| Overall dimensions without mounting material (L x W x H), (mm) | 145.7 x 136 x 162.8 |
| Total weight (kg) | 1,18 |
| TDP (W) | 250 |
| Socket compatibility | AMD: TR4 |
| Fan model, number | 1x Silent Wings 3 120mm PWM, 1x Silent Wings 135mm PWM |
| Decoupled fan mounting | ✓ |
| Overall noise level (dB(A)) @ 50/75/100% (rpm) | 12.8 / 17.9 / 24.3 |
| Heatsink specifications | |
| Dimensions (L x W x H), (mm) | 162.8 x 136 x 120.7 |
| Number of fins | 90 |
| Fin material | Aluminum |
| Base material | Copper |
| CPU contact surface | CNC machined |
| Heatpipe number / Diameter (mm) | 7 / 6 |
| Surface treatment | Aluminum / black ceramic spray painted |
| Fan specifications | |
| Fan dimensions (mm) | 135 x 135 x 22 / 120 x 120 x 25 |
| +SilentWings | ✓ |
| Speed @ 100% PWM /12V (rpm) | 1,200 / 1,500 |
| Bearing technology | Fluid Dynamic Bearing |
| Motor technology | 6-pole fan motor |
| Rated voltage (V) | 12 |
| Input current (A) | 0.08 / 0.08 |
| Input power (W) | 0.96 / 0.96 |
| Connector | 4-pin PWM |
| Cable length (mm) | 220 / 220 |
| Lifespan (h / 25°C) | 300,000 |
| Accessories | |
| Thermal grease (g) | Corning TC-5121C / 2 |
| Mounting set | AMD TR4 |
| Y-Cable | ✓ |
| User manual languages | DE, EN, FR, ES, PL, RU |
| Service | |
| Warranty (Years) | 3 |
| International hotline / free of charge | ✓ / DE, FR |
| Logistics data, RRP | |
| Article number | BK023 |
| EAN code | 4260052186985 |
| Dimensions, package (L x W x H), (mm) | 181 x 205 x 212 |
| Gross weight, package (kg) | 1.58 |
