Define 7 Mini, Tempered Glass, No PSU, microATX, Black, Mini Tower Case

Quantity:
  • SKU: 15108540
  • Manufacturer: Fractal Design
  • MPN: FD-C-DEF7M-02
  • Availability: TEMPORARILY OUT OF STOCK
Starting At
$117.30
Quantity:

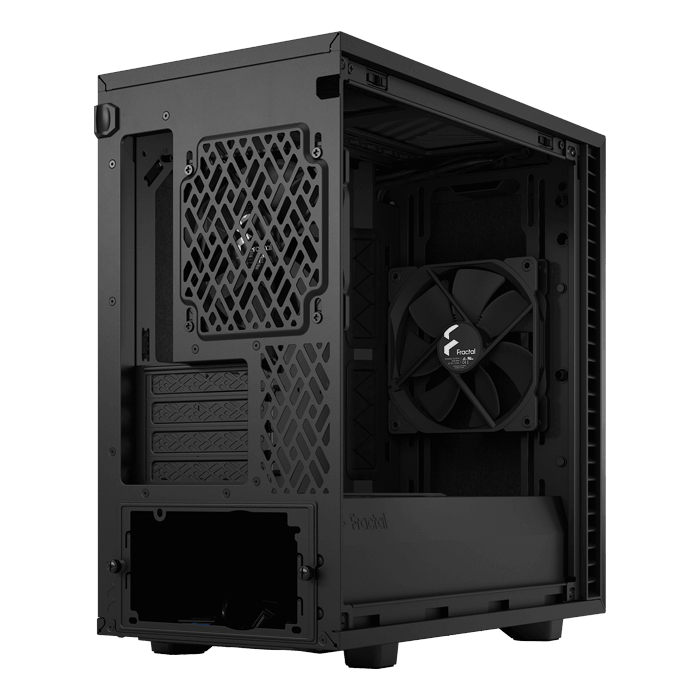

Define 7 Mini, Tempered Glass, No PSU, microATX, Black, Mini Tower Case

Re-defining balance.

he Define 7 Mini offers the same stylish appeal and many of the life-improving features of its larger siblings, in a streamlined form factor. Its compact yet spacious interior can accommodate mATX and Mini ITX motherboards, and the option to use a GPU up to 331 mm with a 240 mm radiator in the top.

  • Compact yet spacious interior accommodates mATX and Mini ITX motherboards
  • Room for GPUs up to 331 mm with a 240 mm radiator in the top, or 306 mm with 25 mm thick fans in the fronts
  • Support for 2x 2.5”/3.5” drives and up to 4x 2.5” drives (2x 2.5” brackets included)
  • Top panel effortlessly swaps from closed steel panel to filtered ventilation
  • Removable top fan bracket design opens up to fully expose the case interior for effortless installation and cable routing
  • Silence-optimized construction with industrial sound-damped front, top, and side panels
  • Brushed aluminum front and top-latching side panels offer a clean sophisticated look
  • Install up to 7x 120 mm or 4x 140 mm fans (1x 120 mm and 1x 140 mm Dynamic X2 fans included)
  • Five front USB ports including one USB-C with fast-charging support and speeds up to 10Gbps
  • Bridgeless expansion slots ensure obstruction-free connections for easier installation and hookup
  • Ventilated PSU shroud with two-part removable cover for optimal coverage and front radiator support
  • Easy-to-clean high airflow nylon filters on the front, top and base with full PSU coverage and convenient front access
  • Integrated cable guides with cable straps further simplify cable management behind the board
Specifications
3.5"/2.5" drive mounts 2 (included)
Dedicated 2.5" drive mounts 4 (2 included – note the 8 mm height limit on two of the positions)
Expansion slots 4
Front interface 1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, 2x USB 2.0, Audio
Total fan mounts 7x 120 mm or 4x 140 mm
Front fan 3x 120/ 2x 140 mm (1x Dynamic X2 GP-14 included)
Top fan 2x 120/140 mm
Rear fan 1x 120 mm (1x Dynamic X2 GP-12 included)
Bottom fan 1x 120 mm (requires HDD Cage to be removed)
Dust filters Top, Front, Bottom and PSU
Cable routing space 15-25 mm
Cable routing grommets Yes
Fixed cable ties Yes
Tool-less push-to-lock Top, front and side panels
Captive thumbscrews HDD, SSD and PSU brackets
Left side panel Industrial sound-damped steel or tempered glass
Right side panel Industrial sound-damped steel
Compatibility
Motherboard compatibility mATX / Mini-DTX / Mini ITX
Power supply type ATX
Front radiator 120/240, 140/280 (361 mm max height, 146 mm max width)
Top radiator 120/240 mm (max 37 mm RAM with 121 mm wide radiator)
Rear radiator 120 mm
Bottom radiator 120 mm (requires HDD Cage to be removed)
PSU max length 165 mm recommended with HDD Cage (200 mm without Hard Drive Cage)
GPU max length 331 mm, 306 mm with front fan
CPU cooler max height 167 mm
Dimensions
Case dimensions (LxWxH) 399 x 205 x 406 mm
Net weight Solid: 7.49 kg TG: 6.84 kg
Package dimensions (LxWxH) 462 x 277 x 471 mm
Gross weight Solid: 9.05 kg TG: 8.4 kg
Other
Package contents Define 7 Mini, User manual, Accessory box, Ventilated top panel
SKU Black Solid: FD-C-DEF7M-01, Black TG Light Tint: FD-C-DEF7M-02
EAN Black Solid: 7340172702818, Black TG Light Tint: 7340172702825
UPC Black Solid: 843276102814, Black TG Light Tint: 843276102821
JAN Black Solid: 4537694282291, Black TG Light Tint: 4537694282307
Warranty 2 Years
