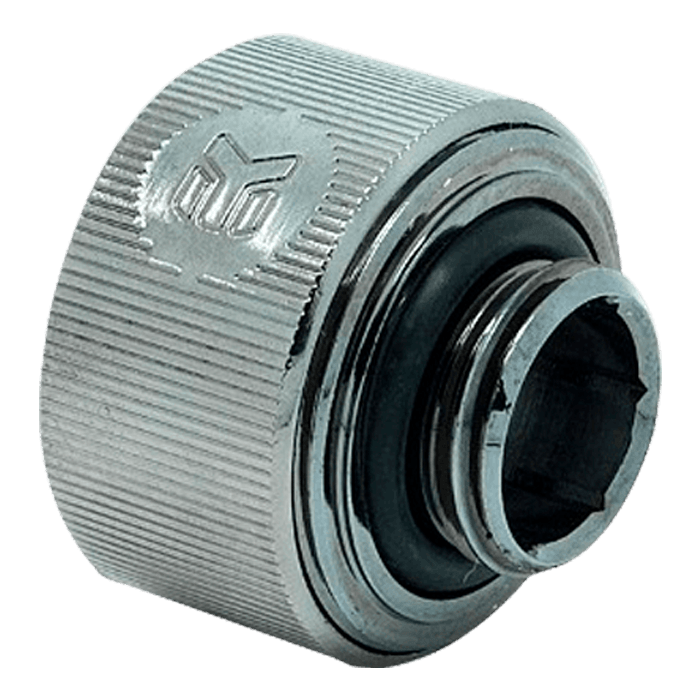

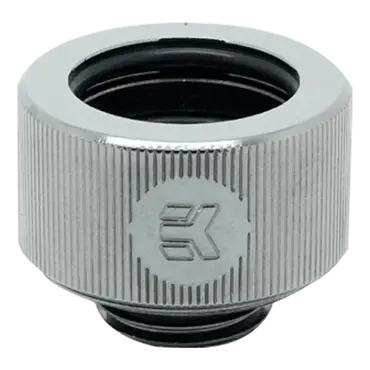

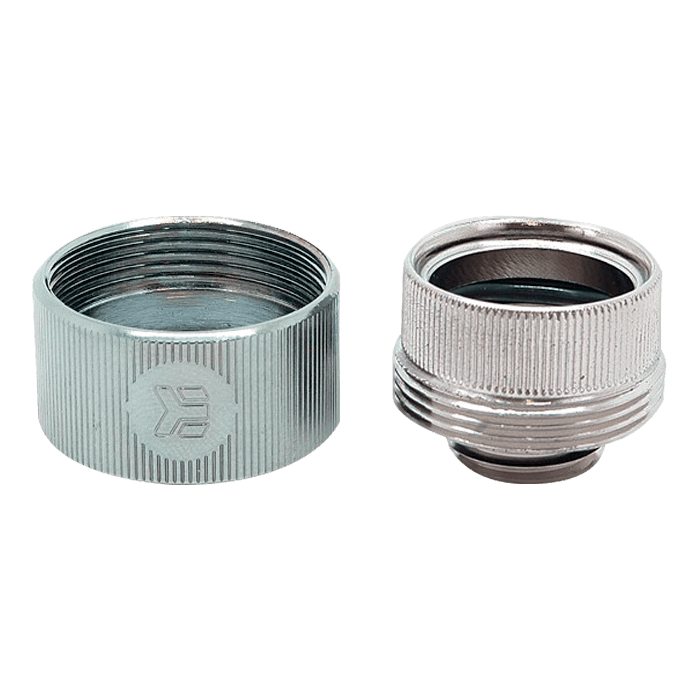

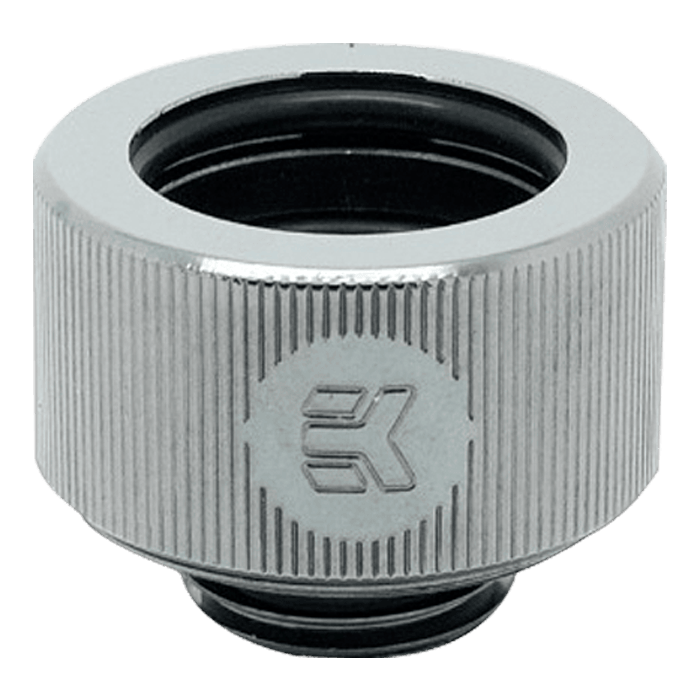

EK-HDC Fitting 16mm G1/4 - Black Nickel is a solid-tube compression fitting, designed for use with solid tubing such as Acrylic, Copper, Stainless Steel or any other type of compatible hard tube.
- thread: G1/4" BSP; 4.5mm male thread lenght
- supported tube: 16mm (OD)
- outer diameter of a fitting: 23.8mm
- installed height: 14.5mm
- compatible tubing: solid Acrylic-, Copper-, Brass- or Stainless Steel tube
Made in Slovenia - Europe!
- Please wet the gasket (o-ring) using drops of water prior to installing solid tube.
- Do not use excessive force when inserting solid tube!
- It is mandatory to chamfer the edges of freshly cut solid tube in order to prevent gasket (o-ring) damage. EK recommends a 0.5mm x 45° chamfer.
|Fitting Type||Rigid Compression|
|Fitting Finish||Black Chrome|
