ET600-MG, 80 PLUS Gold 600W, Fully Modular, ATX Power Supply

SKU: 13771987

Manufacturer: SILVERSTONE

MPN: SST-ET600-MG

Availability: Unknown


Price: $108.10
or as low as $3/month
Quantity:

SilverStone ET600-MG (SST-ET600-MG). Powerful single +12V rail design, perfect for future high-end component upgrades or overclocking.

  • High efficiency with 80 PLUS Gold certification
  • 24/7 continuous power output with 40°C operating temperature
  • Class-leading single +12V rail

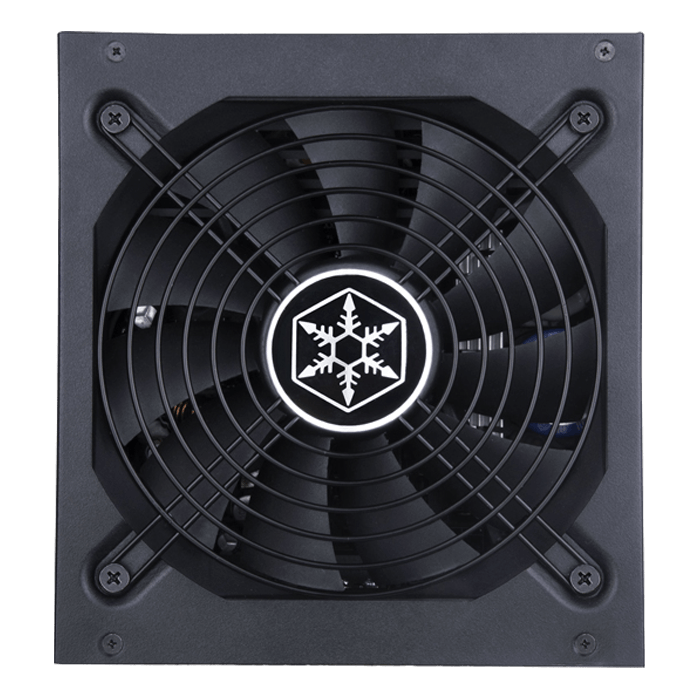

  • Silent running 135mm fan with 18 dBA
  • PCI-E 8pin and PCI-E 6pin connectors support
  • All black flat cables design
  • Multiple protection circuitry
Model No. SST-ET600-MG
Max. DC Output 600W
Power density 282W per liter
Color
Black(Lead-Free Paint)
Combined +3.3V & +5V
100W
Combined +12V 600W
Input Voltage
100V ~ 264V
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC (PF>0.9 at full load)
Efficiency
87% ~ 90% at 20% ~ 100% loading
MTBF
100,000 hours
Operating temperature
0°C ~ 40°C
Protection
Over power protection

Over current protection

Over voltage protection

Short circuit protection

Under voltage protection

Over Temperature protection

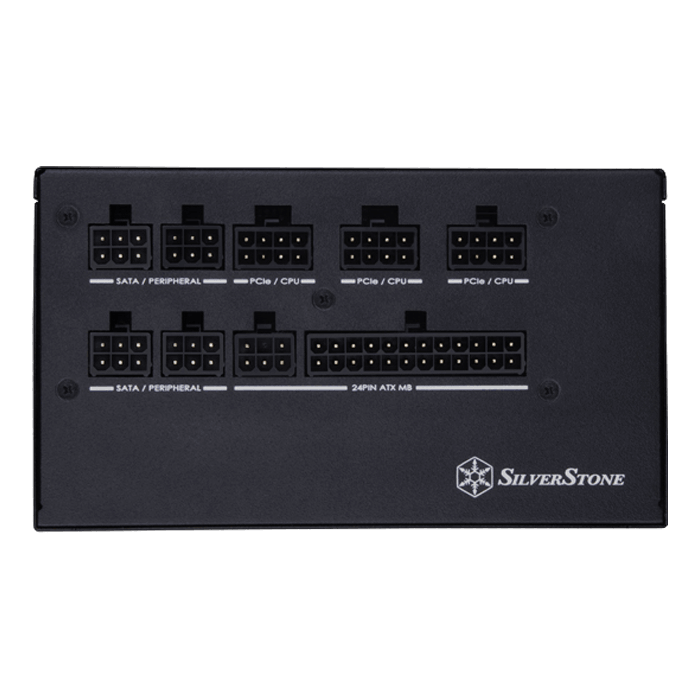

Connectors
1 x 24-Pin motherboard connector("600mm")

1 x 8 / 4-Pin EPS / ATX 12V connector("750mm")

2 x 8 / 6-Pin PCIE connector("700mm/150mm")

8 x SATA connector("600mm /150mm / 150mm / 150mm")

3 x 4-Pin Peripheral connector ("600mm / 150mm / 150mm")
Cooling System
Single 135mm silent fan
Form factor
ATX
Noise Level
18 dBA minimum
Dimension
150mm (W) x 86mm (H) x 165mm (D)
5.91" (W) x 3.39" (H) x 6.5" (D)
Weight 1.45 Kg
Certification
80 PLUS Gold
Other
GPU Support list
Compatible with ATX12V v2.4
Load Range
  +3.3V +5V +12V +5VSB -12V
Max.(Amps)
18A 18A 50A 2.5A 0.3A
Peak (Amps)
/ / / / /
Min.(Amps)
0A 0A 0A 0A 0A
Range (%)
±5% ±5% ±5% ±5% ±10%
Line Reg.(%)
±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p)
50mV 50mV 120mV 50mV 120mV
