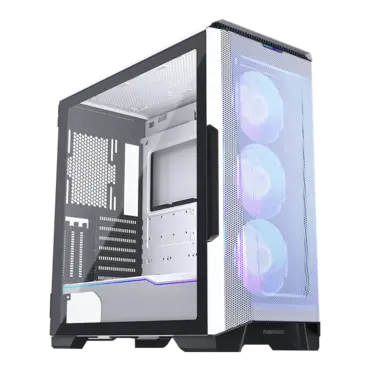

Eclipse Series P500A D-RGB Tempered Glass, No PSU, E-ATX, White, Mid Tower Case

  • SKU: 13776788
  • Manufacturer: PHANTEKS
Starting At
Brand Phanteks
Series Eclipse P500A
Type  ATX Mid Tower
Color White
Case Material Steel / Tempered Glass
With Power Supply No
Power Supply Mounted  Bottom
Motherboard Compatibility  Micro ATX / ATX / Mini ITX / E-ATX
Side Panel Window  Yes
Internal 3.5" Drive Bays 10 (2x included, also supports 2.5" drives)
Internal 2.5" Drive Bays 3 (3x included)
Expansion Slots  7 + 3 vertical
Front Ports 2 x USB 3.0 / USB 3.1 Gen2 Type-C / Audio / LED Mode Button / LED Color Button
Fan Options Front: 3 x 120mm or 3 x 140mm fan (3 x 140mm D-RGB fan included)

Top: 3 x 120mm or 3 x 140mm fan

Rear: 1 x 120mm or 1 x 140mm fan
Radiator Options Front: 360mm, 420mm

Top: 280mm, 360mm

Rear: 120mm, 140mm
Max GPU Length 435 mm
Max CPU Cooler Height 190 mm
Max PSU Length 195mm (if all 4 bottom HDD positions used)
250mm (if 2 bottom HDD used)
Dimensions (H x W x D) 20.10" x 9.45" x 20.00"
Weight 17.60 lbs.
Features Ultra-fine Performance Mesh front panel for the best optimal cooling performance; Tempered glass side panel to showcase your build

Spacious open interior: supports dual system (with PH-ITXKT_R01), vertical GPU mounting support (with PH-VGPUKT_02), up to 420mm front/280mm top radiator,

Easy accessibility to I/O featuring USB-C GEN2, 2x USB 3.0, Microphone/Headphone, Power button, D-RGB Mode button, D-RGB Color button

Integrated Digital-RGB controller that can sync with compatible motherboards and Phanteks DRGB products to create stunning lighting effects and comes with 3x DRGB Phanteks fans

Extensive Storage options: Support massive Storage capacity (10x HDD and 3x SSDs)
