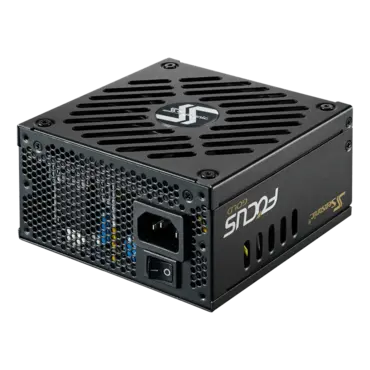

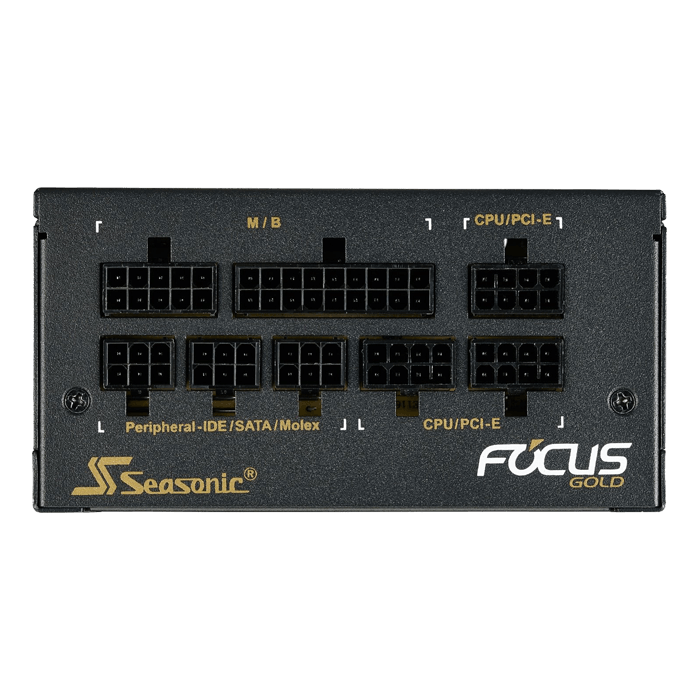

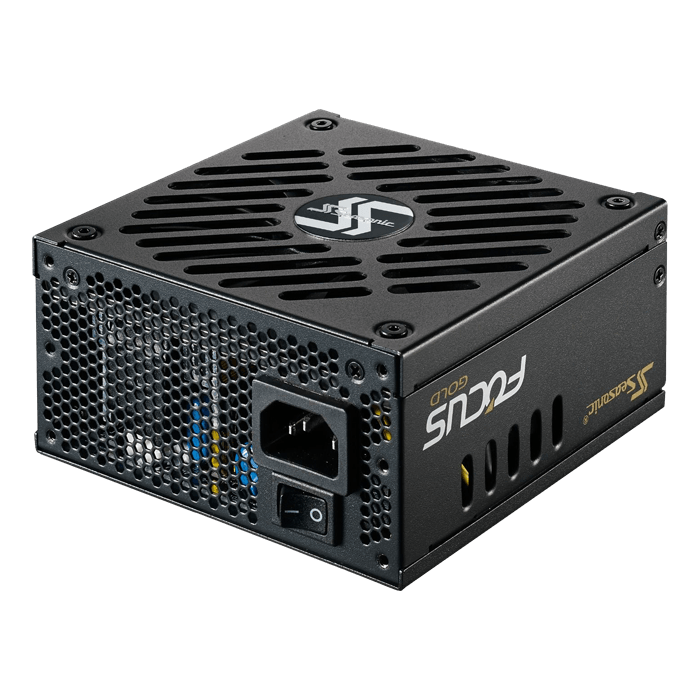

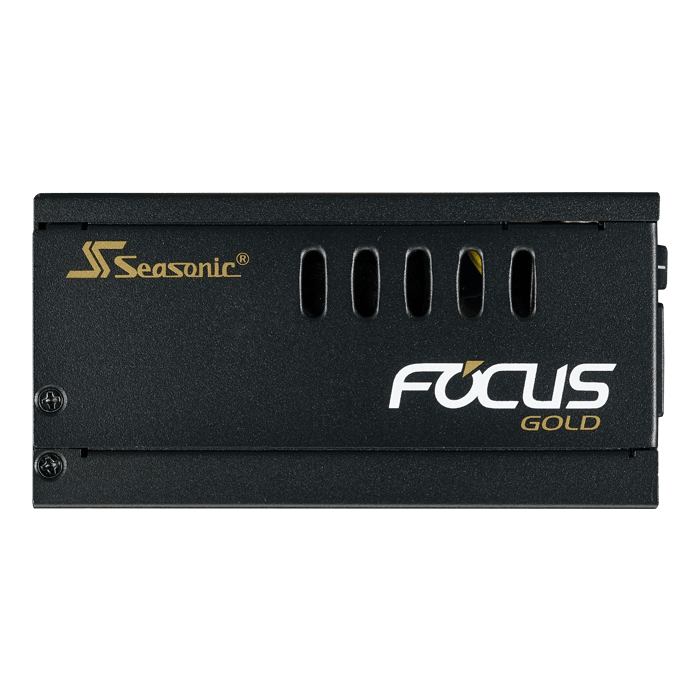

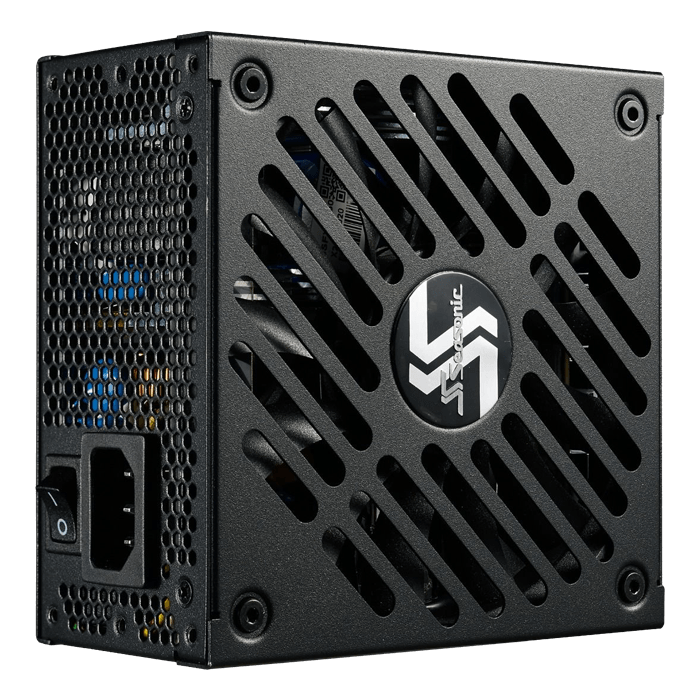

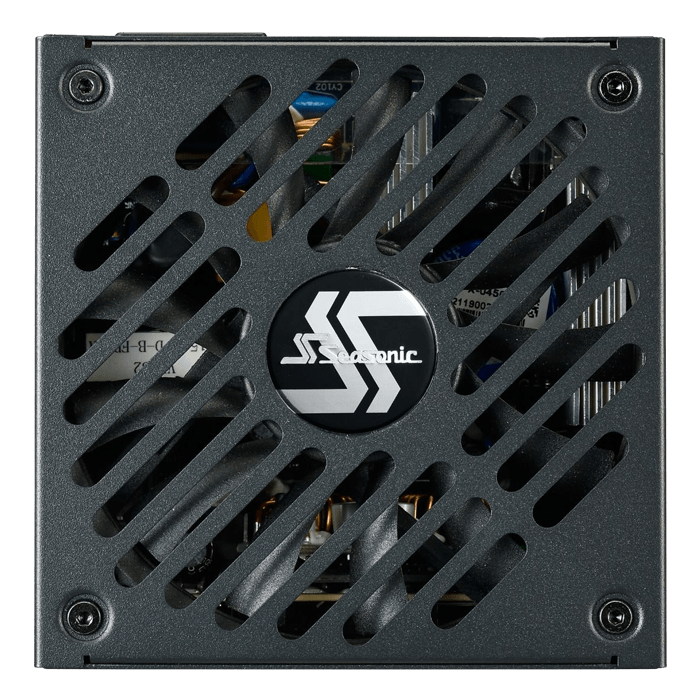

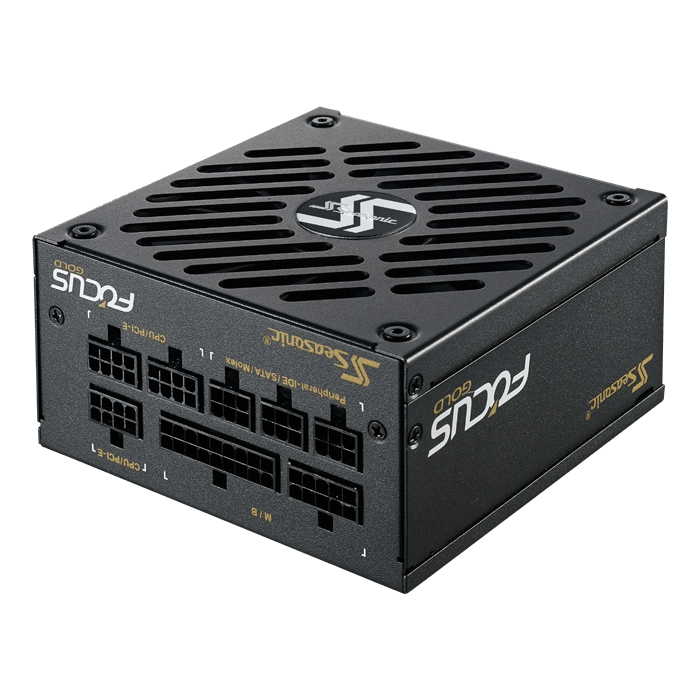

FOCUS SGX-650, 80 PLUS Gold 650W, Fully Modular, SFX-L Power Supply
Quantity:
- SKU: 12397613
- Manufacturer: SEASONIC
- MPN: SSR-650SGX
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$166.52
| Technical Specifications | ||||||
|---|---|---|---|---|---|---|
| 80PLUS® | Gold | |||||
| Cybenetics Efficiency Level | TBA | |||||
| Cybenetics Noise Level | TBA | |||||
| Form Factor | Intel SFX 12 V / ATX 12 V | |||||
| Dimensions | 125 mm (W) x 125 mm (L) x 63.5 mm (H) | |||||
| Fan Information | Fan Size | 120 mm | ||||
| Fan Control | Premium Hybrid Fan Control | |||||
| Fan Bearing | Fluid Dynamic Bearing | |||||
| Life Expectancy | 50,000 hours at 40 °C, 15 % - 65 % RH | |||||
| Cable Information | Modularity | Fully Modular | ||||
| Cable type | Flat black cables | |||||
| Electrical Features | Operating Temperature | 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C) | ||||
| MTBF @ 25 °C, excl. fan | 100,000 hours | |||||
| AC Input | Full Range | |||||
| Protection | OPP, OVP, UVP, OCP, OTP, SCP | |||||
| Safety and Environmental | Safety and EMC | cTUVus, TUV, CB, CCC, BSMI, EAC, CE | ||||
| Environmental Compliance | Energy Star, RoHS, WEEE, ErP Lot 6, REACH | |||||
| Warranty | 10 Years | |||||
| Power Output | ||||||
| AC Input | Voltage: 100 V - 240 V | |||||
| Current: 6 - 3 A | ||||||
| Frequency: 50 Hz - 60 Hz | ||||||
| DC Output | Rail | +3.3 V | +5 V | +12 V | -12 V | +5 VSB |
| Maximum Power | 20 A | 20 A | 54 A | 0.3 A | 3 A | |
| 100 W | 648 W | 3.6 W | 15 W | |||
| Total continuous power | 650 W | |||||
