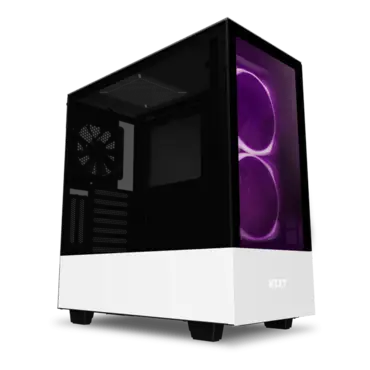

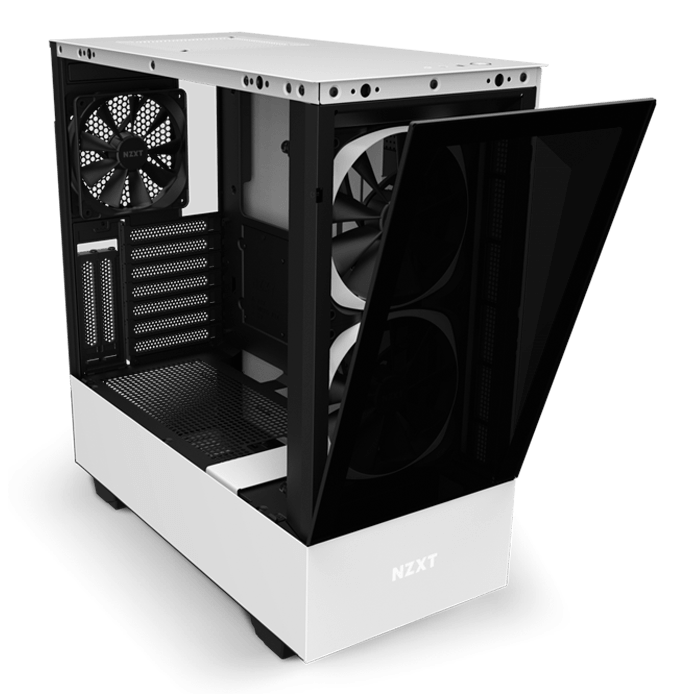

Two tempered glass panels top off your build, perfectly showcasing your RGB build. We’ve included two Aer RGB 2 fans and an RGB LED strip to get you started.

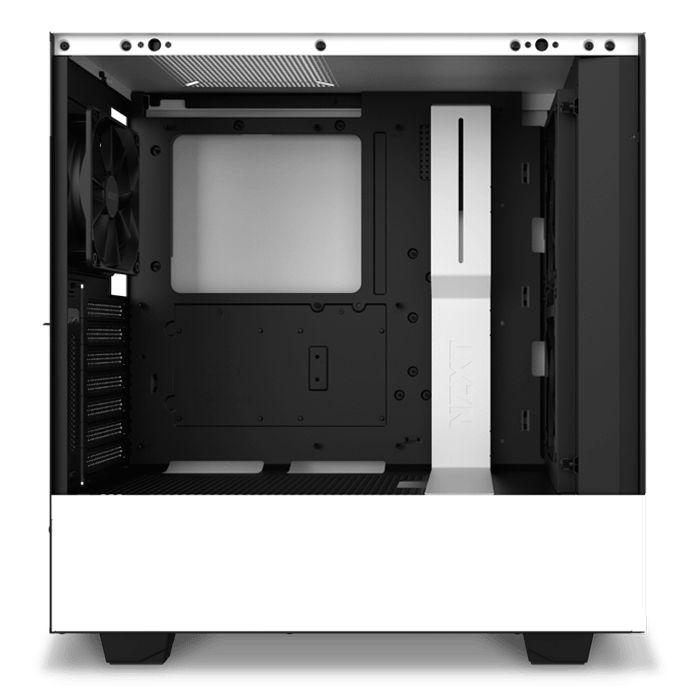

The H510 Elite features a removable radiator mounting bracket, simple-to-use SSD trays, and a patented cable management system for a smarter, easier build experience. The new Smart Device 2 includes two HUE 2 RGB lighting channels, and three fan channels that support 0dB modes for voltage-regulated or PWM fans.

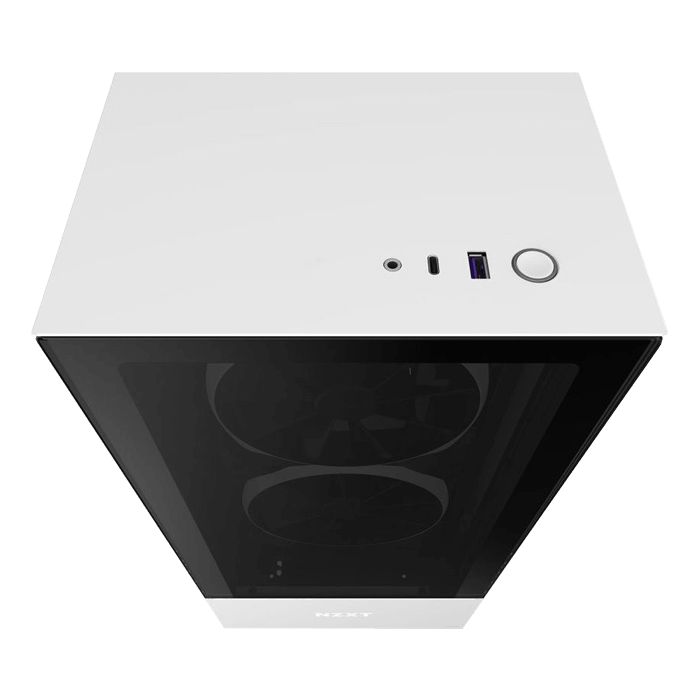

The USB 3.1 Gen 2-compatible USB-C connector on the front panel makes it easier than ever to connect smartphones, high-speed external storage, and the latest peripherals to your PC.

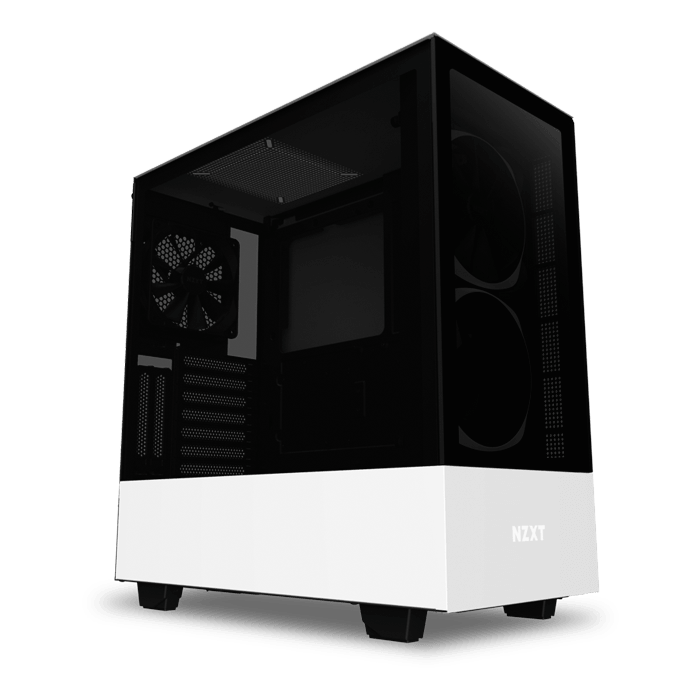

The clean, modern design, iconic cable management bar, and uninterrupted tempered-glass panels all showcase your stunning build.
Use the intuitive NZXT CAM application to monitor and control your build, choosing from presets or custom controls for your RGB lighting and fans to create your dream PC.
|Dimensions||W: 210mm H: 435mm D: 428mm (without feet)
W: 210mm H: 460mm D: 428mm (with feet)
|Material(s)||SGCC Steel, Tempered Glass|

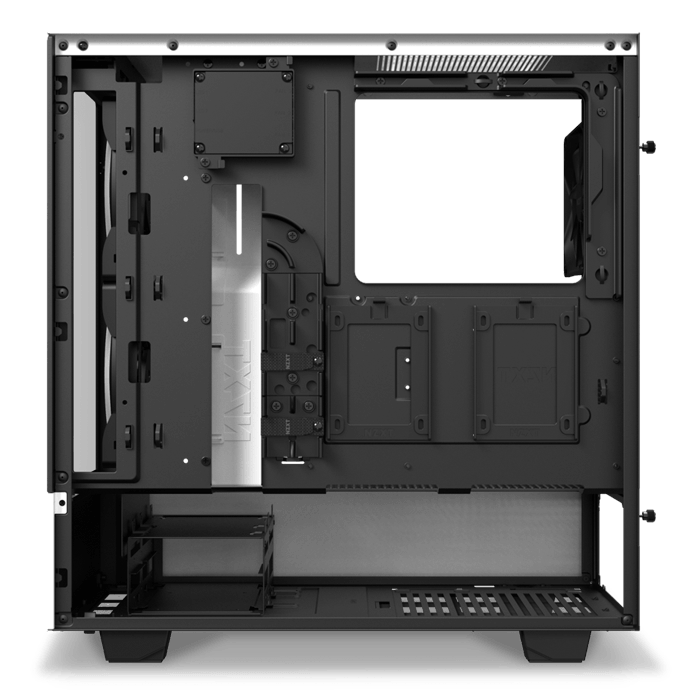

|Clearance||Cable Management: 19-23mm
GPU Clearance: Up to 368.5mm
CPU Cooler: Up to 165mm
Front Radiator: 60mm
Rear Radiator: 60mm
Reservoir & Pump: Up to 180mm (Along cable bar), Up to 86mm (Along bottom panel)
|Motherboard Support||Mini-ITX, MicroATX, ATX|
|Front I/O Ports||1x USB 3.1 Gen 2 Type-C
1x USB 3.1 Gen 1 Type-A
1x Headset Audio Jack
Front I/O internal header
1x USB 3.1 Gen 2 Internal Header
1x USB 3.1 Gen 1 Internal Header
1x USB 2.0 Internal Header
1x HD Audio Header
|Filters||All Air Intakes|
|Smart Device V2||3x Fan channels with Max 10W per channel output*
2x RGB LED channels, each support up to 4x HUE 2 addressable LED strips or 5x Aer RGB 2 fans
Built-in noise detection module
*Note : If a splitter is used, fan control is regulated depending on the fan connected to the 4-pin port . Do not use low-noise adapters.
|RGB LED Lighting||2x Integrated Aer RGB 2 140mm Fans
1x Integrated addressable LED Strip
|Vertical GPU Mount||2 Slots|
|Drive Bays||2.5": 2+1
|Radiator Support||Front: 2x 140 or 2x 120mm with Pull
Rear: 1x 120mm
|Fan Support||Front: 2x 120/ 2x 140mm (2x AER RGB 2 140mm included)
Top: 1x 120mm/ 1x 140mm (1x AER F140 Case Version Included)
Rear: 1x 120mm (1x AER F120 Case Version Included)
|Fan Specs||Aer RGB 2 (140mm)
Speed: 500-1,500 RPM
Airflow: 30.39 - 91.19 CFM
Noise: 22 - 33 dBA
Air Pressure: 0.17 – 1.52mm-H2O
Bearing: Fluid Dynamic Bearing
Fan Connector 4-Pin PWM
