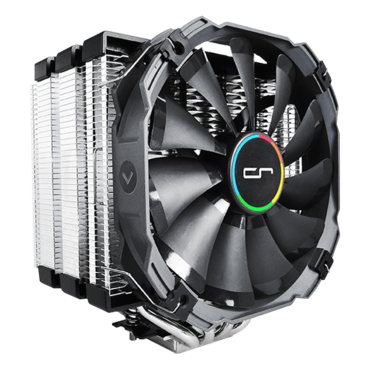

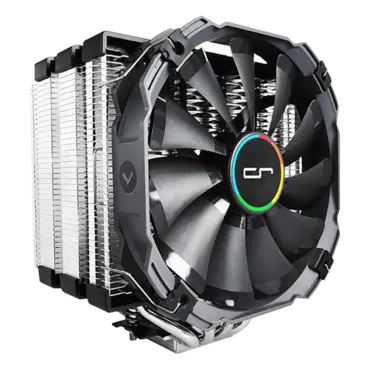

H5 Ultimate, 168.3mm Height, 160W TDP, Copper/Nickel CPU Cooler

Quantity:
  • SKU: 13591721
  • Manufacturer: CRYORIG
  • MPN: CR-H5 ULTIMATE
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$77.75
Quantity:
H5 Ultimate, 168.3mm Height, 160W TDP, Copper/Nickel CPU Cooler

CRYORIG H5 Ultimate (CR-H5 ULTIMATE). Breaking Design Molds. Efficiency by Innovation. CRYORIG H Series coolers feature our proprietary Hive Fin™ structure. This design allows for a combination of Jet Fin Acceleration™ and Turbulence Reduction, as well as strengthening structural strength of the fin stacks. Combined together, the Hive Fin™ design brings cool innovation.

Heatsink Specification
Dimension ( with fan ) L110.9 x W143 x H160 ~ 168.3mm (Fan position adjustable)
Weight ( with fan ) 920 g
Weight ( without fan ) 764 g
Heat pipes 6mm heatpipe x 4 units
Fin T = 0.4 mm ; Gap = 2.8 mm
Fin Pcs 38 pcs
Copper Base C1100 Pure copper nickel plated
RAM Height Limit 30 ~ 35 mm ( Fan position adjustable )
TDP 160 W
Fan Specification
Model XF140
Dimension L140 mm x W140 mm x H25.4 mm
Weight 156 g
Rated Speed 700 ~ 1300 RPM ±10 %
Noise Level 19 ~ 23 dBA
Air Flow 76 CFM
Air Pressure 1.44 mmH2O
Ampere 0.16 A
Motherboard Compatibility
Intel 2066, 2011(-3), 1150, 1151, 1155, 1156, 1200
AMD FM1, FM2/+, AM2/+, AM3/+, AM4
What's In The Box H5 Ultimate x 1
MultiSeg™ Backplate for Intel x 1
AM4 Screw Pillar x 4
Intel Mounting Bar x 2
AM4 Mounting Plate x 1
Thumb Screw Caps x 4
Screw Pillars x 4
LGA 2011 Screw Pillars x 4
Acoustic Vibration Absorbers x 4
CP-7 x 1
L-Screwdriver x 1
Installation Guide x 1
