Package contents

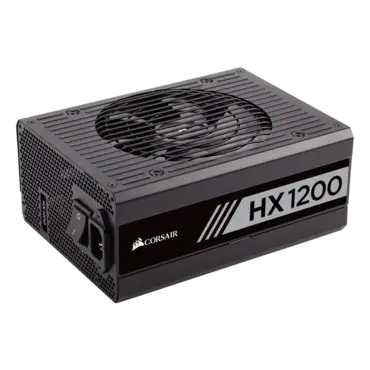

- HX Series 1200W ATX Power Supply
- Power cord
- Mounting screws
- Cable ties
- Corsair case badge
- User manual
Compatibility
- 6th generation Intel® Core™ processor Ready (Intel Skylake and Z170 motherboards)
- ATX12V v2.4 and EPS 2.92 standards and is backward compatible with ATX12V 2.2, 2.31 and ATX12V 2.01 systems
Features
- 80 PLUS® Platinum efficiency, delivering 90% energy efficiency at real world load conditions.
- ZeroRPM mode for fanless operation at low loads and outstanding noise reduction.
- 135mm thermally controlled, fluid dynamic bearing fan only spins up as needed.
- Fully modular cables for easy installation, less clutter, and helps maximize airflow through your computer’s chassis.
- Engineered to meet maximum power output at a server-grade 50°C temperature rating.
- Over-voltage protection, under-voltage protection, short circuit protection, over power protection, and over temperature protection provide maximum safety to your critical system components.
- Safety and Agency Approvals: FCC, ICES, CE, UL / CUL, CSA, C-Tick/RCM, TUV, CB, CU, KC Mark, RoHS, WEEE, RoHS (China), REACH
Warranty
|
Ten years |
Weight | 2.3kg |
80 PLUS Certification Level | Platinum |
Power | 1200 Watts |
Zero RPM Fan Mode | Yes |
Fan Bearing Technology | Fluid Dynamic Bearing |
Fan size | 135mm |
Corsair Link Support | No |
Continuous Output Rated Temperature (°C) | 50°C |
Dimensions | 150mm x 86mm x 200mm |
Modular | Fully |
Cable Type | Low-Profile, All Black |
ATX Connector | 1 |
EPS Connector | 2 |
Floppy Connector | 1 |
4-Pin Peripheral Connector | 8 |
PCIe Connector | 8 |
SATA Connector | 8 |
Plug Type | NA |
Corsair HX1200 DC Output Ratings in Single +12V Rail Mode | |||||
DC output | +3.3V | +5V | +12V | -12V | +5VSB |
Max Load | 30A | 30A | 100A | 0.8A | 3.5A |
Maximum Combined Wattage | 150W | 1200W | 9.6W | 17.5W | |
Total Power: 1200W |
Corsair HX1200 DC Output Ratings in Multiple +12V Rail Mode | ||||||||||||
DC Output | +3.3V | +5V | +12V1 | +12V2 | +12V3 | +12V4 | +12V5 | +12V6 | +12V7 | +12V8 | -12V | +5VSB |
Max Load | 30A | 30A | 40A | 40A | 40A | 40A | 40A | 40A | 40A | 40A | 0.8A | 3A |
Maximum Combined | 150W | 1200W | 9.6W | 15W | ||||||||
Total Power | 1200W |
