MasterBox NR200P, No PSU, Mini-ITX, Sunset Orange, Mini Tower Case

  • SKU: 14702506
  • Manufacturer: COOLER MASTER
  • MPN: MCB-NR200P-OCNN-S00
Starting At

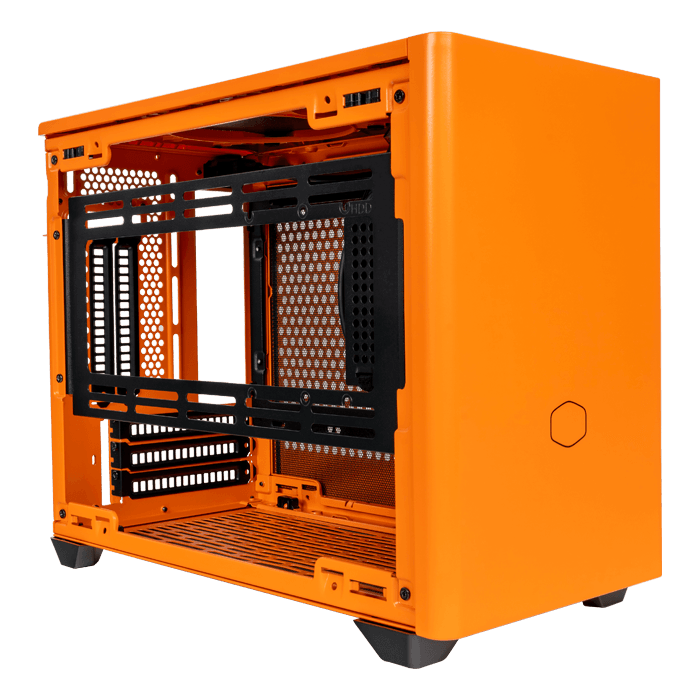

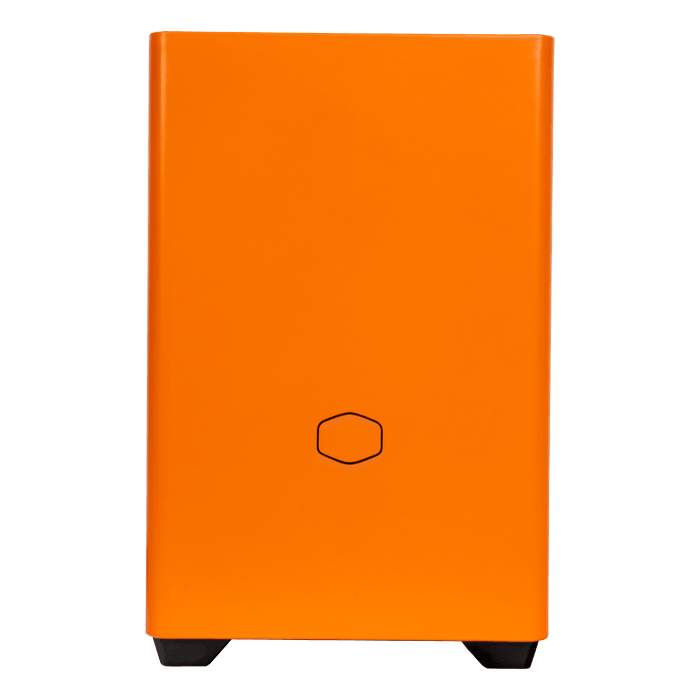

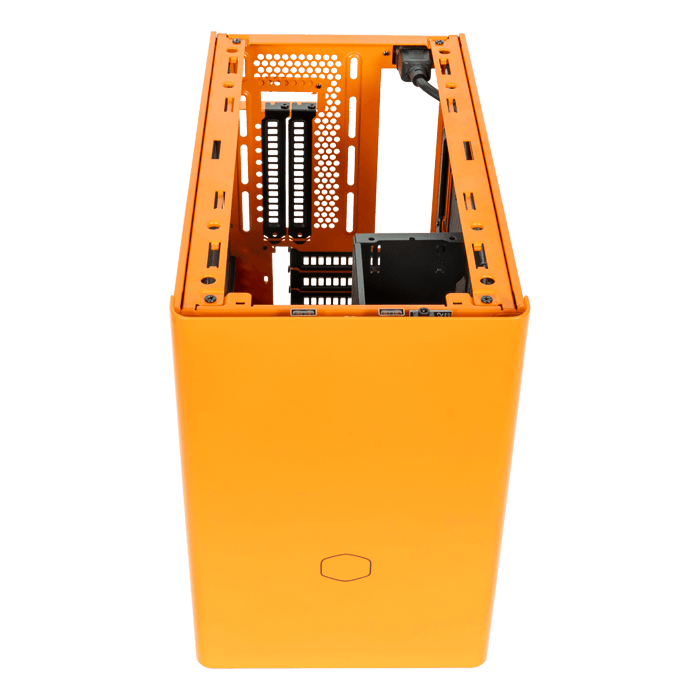

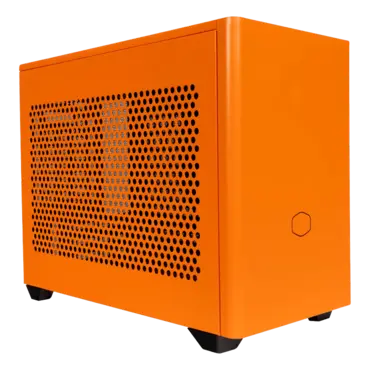

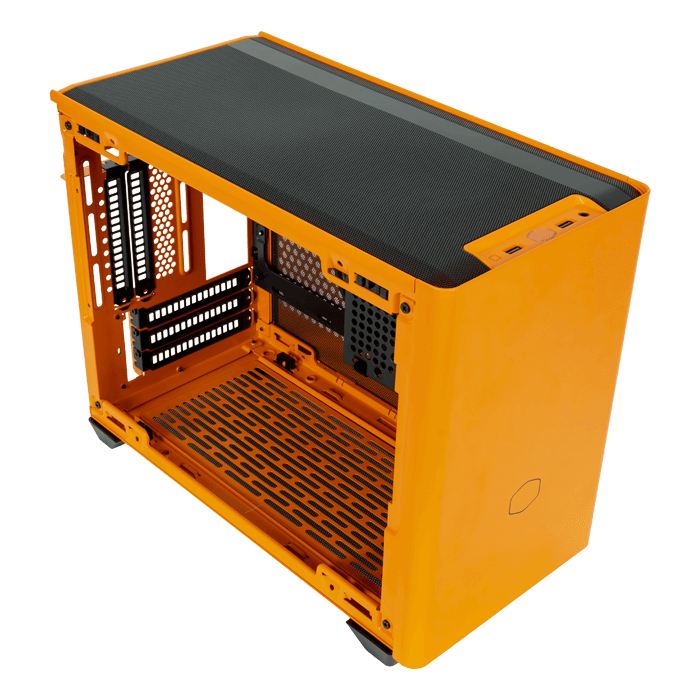

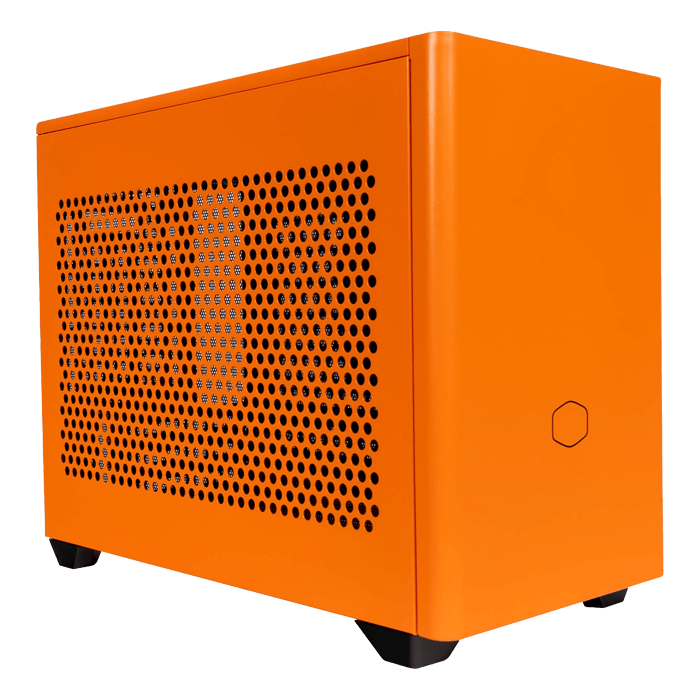

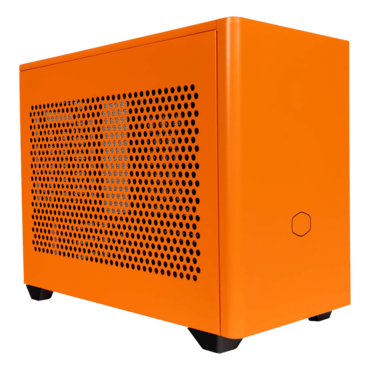

MasterBox NR200P, No PSU, Mini-ITX, Sunset Orange, Mini Tower Case


The NR200P boasts larger ATX chassis features while retaining a space-efficient form factor.
The NR200P comes with a choice of side panels: vented steel for unrestricted airflow, or crystal-clear tempered glass to reveal the beauty of a computing beast.
A PCI Riser is included for vertical GPU installation, ideal for showcasing or feeding it fresh air from the side with the vented panel.

Model Number MCB-NR200P-OCNN-S00 (Sunset Orange)
Materials Steel, Plastic, Mesh, Tempered Glass
Dimensions (L x W x H) 376 x 185 x 292mm incl. Protrusions, 360 x 185 x 274mm excl. Protrusions
Volume 18.25L (exlc. Protrusions)
Motherboard Support Mini DTX, Mini ITX, Max MB size: 244 x 226mm (L x H)
Expansion Slots 3
5.25" Drive Bays 0
3.5" Drive Bays 1 (Max. 2)
2.5" / 3.5" Drive Bays (combo) 1
2.5" Drive Bays 2 (Max. 3)
I/O Panel 2x USB 3.2 Gen 1 Type-A, 1x 3.5mm Headset Jack (Audio+Mic)
Pre-installed Fans - Top 2x 120mm 650-1800RPM PWM (SickleFlow)
Pre-installed Fans - Front N/A
Pre-installed Fans - Rear N/A
Pre-installed Fans - Bottom N/A
Fan Support - Top 2x 120mm
Fan Support - Rear 1x 92mm
Fan Support - Bottom 2x 120mm (recommended slim fans for GPUs wider than 2.5 PCI slots)
Fan Support - Side 2x 120/140mm
Radiator Support - Top N/A
Radiator Support - Rear 92mm (not compatible with vertical GPU installation)
Radiator Support - Bottom 120mm, 240mm, (recommended for custom loops only)
Radiator Support - Side 120mm, 140mm, 240mm, 280mm, (not compatible with vertical GPU installation)
Clearance - CPU Cooler 76mm (GPU in vertical position), 153mm (tempered glass side panel), 155mm (vented steel side panel)
Clearance - PSU 130mm
Clearance - GFX L: 330mm (incl. power connector), H: 156mm (incl. power connector), W: 60mm (triple slot)
Dust Filters Top, Bottom, Left side, Right side
Power Supply Support SFX, SFX-L
Warranty 2 years
Weight 5.93 kg
Accessories 1x PCIe 3.0 x16 riser cable
Note Single slot water-cooler GPUs or vertically mounted GPUs are recommended when using bottom radiator position
Series MasterBox Series
Size Mini ITX
