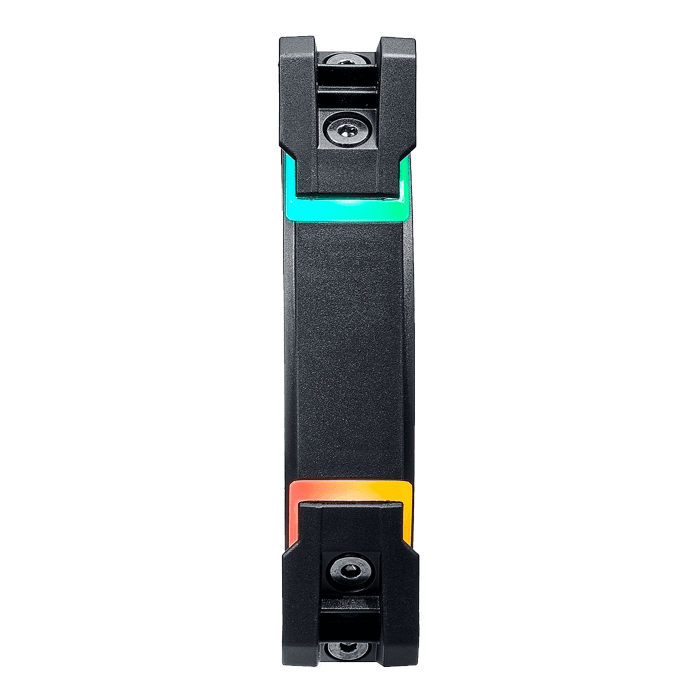

Cooler Master MasterFan SF120M ARGB (MFZ-B2DN-20NPA-R1). Designed with sophistication and innovation, Cooler Master has developed the MasterFan SF120M ARGB as a first-class entry to our lineup of fans. Featuring our patented anti-vibration motor and damping frame structure, the industrial grade materials and machining delivers efficiency, durability, and stability. The dual ball-bearing design reduces friction for superior performance and extended longevity, with silent operation even at max loads. The uniform 18 Addressable RGB LEDs are arranged with 6 inner ring LEDs and 12 outer frame LEDs for a stunning and vibrant luminescent effect.
PRODUCT NUMBER | MFZ-B2DN-20NPA-R1 |
DIMENSIONS (L X W X H) | 120 x 120 x 25 mm / 4.7 x 4.7 x 1 inch |
FAN BEARING TYPE | Ball Bearing |
FAN MTTF | 280,000 Hours |
FAN POWER CONNECTOR | 4-Pin (PWM) |
FAN RATED VOLTAGE | 12VDC |
FAN RATED CURRENT | 0.12A |
FAN SAFETY CURRENT | 0.3A |
FAN POWER CONSUMPTION | 1.44W |
FAN SPEED | H: 650-2000 RPM ± 10%, M: 650-1600 RPM ± 10%, L: 650-1200 RPM ± 10% |
FAN AIRFLOW | H: 62 CFM (Max), M: 46 CFM (Max), L: 35 CFM (Max) |
FAN AIR PRESSURE | H: 2.40 mmH2O (Max), L: 0.93 mmH2O (Max), M: 1.63 mmH2O (Max) |
FAN NOISE LEVEL | H: 5.5-22 dBA, M: 5.5-20 dBA, L: 5.5-12 dBA |
FAN WEIGHT | 205g / 0.45lbs |
WARRANTY | 5 years |
SERIES | MasterFan |
COOLER TYPE | Case Fan |
FAN SIZE | 120 |
FAN - LED LIGHTING | ARGB |
