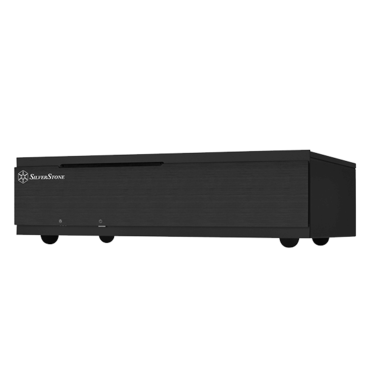

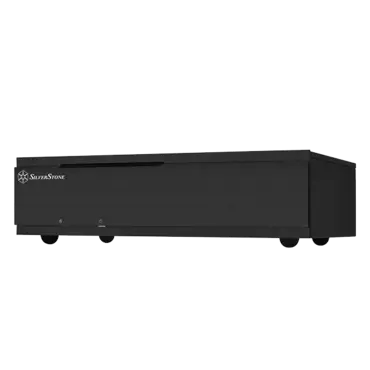

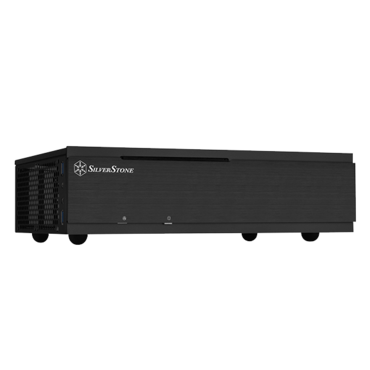

The ML06-E is an evolution and variation of the premium Mini-ITX HTPC case, the Milo ML06. With external dimension unchanged at 7 liters, the ML06-E’s rearranged internal layout provides a crucial second expansion slot for support of more powerful low-profile discrete graphics card or expansion card that are two slots wide. For users that wish to build with a more robust GPU or tuner card in console/DVR-like form factor to game or for multimedia content recording, the ML06-E is a great starting point.
Model No. | SST-ML06B-E (black) |
Material | 7mm aluminum front panel, 0.8mm steel body |
Motherboard | Mini-DTX, Mini-ITX |
Multimedia | -- |
Drive Bay | |
External | 9.5mm/12.7mm slim slot-loading optical drive x 1 (replaceable with 3.5” HDD x 1 or 2.5” HDD x 2 or 120mm fan x 1) |
Internal | 2.5” x 4 |
Cooling System | |
Front | -- |
Rear | -- |
Side | 2 x 80mm fan slot |
Top | 1 x 120mm fan, 1500rpm, 18dBA |
Bottom | -- |
Internal | -- |
Expansion Slot | 2 |
Front I/O Port | USB 3.0 x 2 audio x 1 MIC x 1 |
Power Supply | 1 x Optional standard SFX |
Operating system support | -- |
Expansion Card | Single or dual slot low profile up to 6.9”, width restriction-2.95" |
Limitation of CPU cooler | 37~70mm (variable based on use of multipurpose bracket) |
Limitation of PSU | -- |
Net Weight | 2.68kg |
Dimension | 350mm (W) x 99 mm (H) x 205 mm (D), 7 liters |
Extra | support Kensington lock |
Support VESA Mount | -- |
