| Product Number |
MFZ-M2NN-32NPK-R1 |
| Fan Dimensions (L x W x H) |
120 x 120 x 27 mm / 4.7 x 4.7 x 1 inch |
| Fan Profiles |
Non-LED |
| Fan Speed |
L: 1050-1500 ± 200 RPM, M: 1050-2400 ± 250 RPM, H: 1050-3200 ± 10% RPM |
| Fan Airflow |
L: 40.2 CFM, M: 65.5 CFM, H: 88.1 CFM |
| Fan Noise Level |
L: 17.4 dBA, M: 31.1 dBA, H: 39.3 dBA |
| Fan Bearing Type |
Two Ball Bearing |
| Fan Pressure |
L: 1.19 mmH2O, M: 2.76 mmH2O, H: 4.75 mmH2O |
| Fan MTTF |
>200,000 Hours |

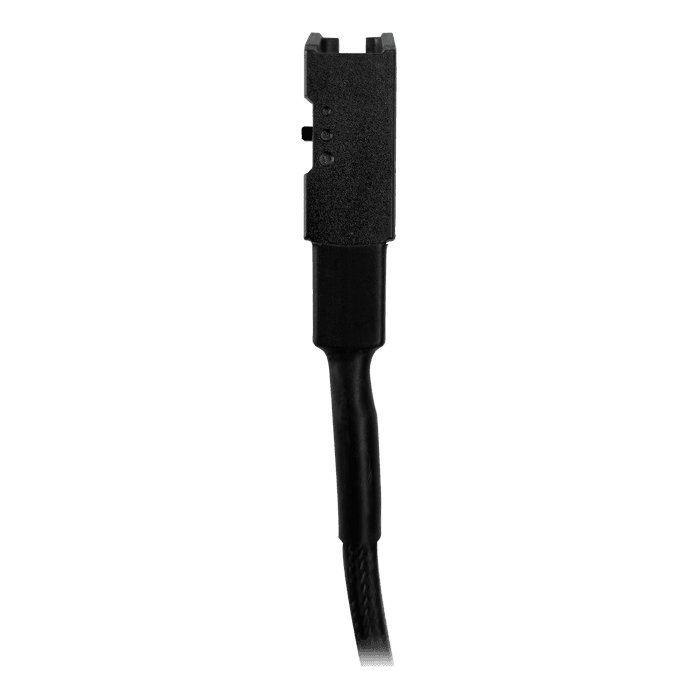

| Fan Connector |
4-Pin PWM (with speed control line) |
| Fan Rated Voltage |
12 VDC |
| Fan Rated Current |
L: 0.10A, M: 0.20A, H: 0.35A |
| Fan Safety Current |
0.5A |
| Fan Power Consumption |
L: 1.20W, M: 2.40W, H: 4.20W |
| Fan Weight |
220g / 0.48 lbs |
| Series |
Mobius Series |
| Cooler Type |
Case Fan |
