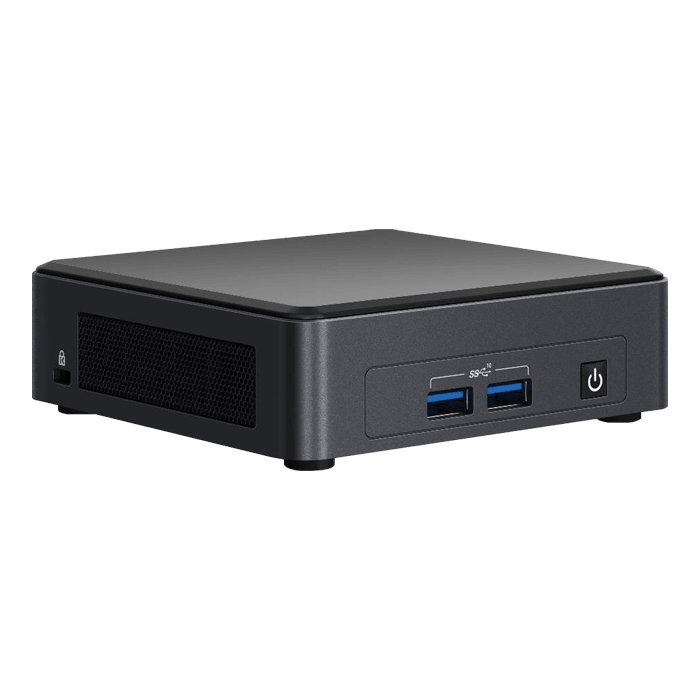

NUC 11 Pro Kit NUC11TNKi5, Intel® Core™ i5-1135G7, 2x DDR4 SO-DIMM, M.2, Intel® Iris® Xe Graphics, No Cord, Mini PC Barebone
Quantity:
- SKU: 13802477
- Manufacturer: INTEL
- MPN: BNUC11TNKi50000
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$549.17
| Essentials | |
|---|---|
| Product Collection | Intel® NUC Kit with 11th Generation Intel® Core™ Processors |
| Code Name | Products formerly Tiger Canyon |
| Status | Launched |
| Launch Date | Q1'21 |
| Expected Discontinuance | 1H'24 |
| Supported Operating Systems | Windows 10, 64-bit*, Windows 10 IoT Enterprise*, Windows Server 2019*, Red Hat Linux*, Ubuntu 20.04 LTS* |
| Board Number | NUC11TNBi5 |
| Board Form Factor | UCFF (4" x 4") |
| Socket | Soldered-down BGA |
| Internal Drive Form Factor | M.2 SSD |
| # of Internal Drives Supported | 2 |
| TDP | 28 W |
| DC Input Voltage Supported | 12-24 VDC |
| Processor Included | Intel® Core™ i5-1135G7 Processor (8M Cache, up to 4.20 GHz) |
| # of Cores | 4 |
| # of Threads | 8 |
| Max Turbo Frequency | 4.20 GHz |
| Supplemental Information | |
| Embedded Options Available | No |
| Memory & Storage | |
| Max Memory Size (dependent on memory type) | 64 GB |
| Memory Types | DDR4-3200 1.2V SO-DIMMs |
| Max # of Memory Channels | 2 |
| Max # of DIMMs | 2 |
| ECC Memory Supported | No |
| Processor Graphics | |
| Processor Graphics | Intel® Iris® Xe Graphics |
| Integrated Graphics | Yes |
| Graphics Output | Dual HDMI 2.0b w/HDMI CEC, Dual DP 1.4a via Type C |
| # of Displays Supported | 4 |
| Expansion Options | |
| PCI Express Revision | Gen 4 (m.2 22x80 slot); Gen 3 (otherwise) |
| PCI Express Configurations | PCIe x4 Gen 4: M.2 22x80 (key M) PCIe x1 Gen 3: M.2 22x42 (key B) PCIe x1: M.2 22x30 (key E) |
| M.2 Card Slot (wireless) | 22x30 (E) |
| M.2 Card Slot (storage) | 22x80 NVMe (M); 22x42 SATA (B) |
| I/O Specifications | |
| # of USB Ports | 4 |
| USB Configuration | Front: 2x USB 3.2 Rear: 2x USB 4 (type C), 1x USB 3.2, 1x USB 2.0 Internal: 1x USB 3.2 on m.2 22x42 (pins), 2x USB 2.0 (headers) |
| Serial Port via Internal Header | Yes |
| Integrated LAN | Intel® Ethernet Controller i225-LM |
| Integrated Wireless | Intel® Wi-Fi 6 AX201 |
| Integrated Bluetooth | Yes |
| Additional Headers | Front_panel (PWR, RST, 5V, 5Vsby, 3.3Vsby); Internal 2x2 power connector |
| # of Thunderbolt™ Ports | 1x Thunderbolt™ 4, 1x Thunderbolt™ 3 |
| Package Specifications | |
| Chassis Dimensions | 117 x 112 x 37 [mm] (LxWxH) |
| Advanced Technologies | |
| Intel® Optane™ Memory Supported | No |
| Intel® Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® ME Firmware Version | 15 |
| Intel® Virtualization Technology (VT-x) | Yes |
| Intel® Platform Trust Technology (Intel® PTT) | Yes |
| Security & Reliability | |
| Intel® AES New Instructions | Yes |
