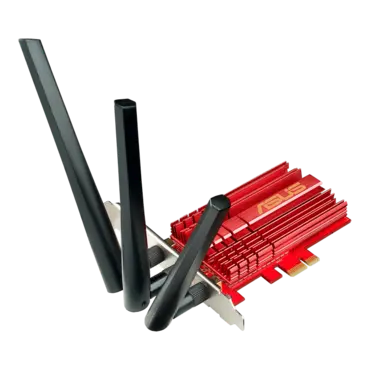

PCE-AC68, AC1900, Dual-Band, Wi-Fi 5, PCIe Wireless Adapter
Quantity:
- SKU: 8000570
- Manufacturer: ASUS
- MPN: PCE-AC68
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$40.52
PCE-AC68, AC1900, Dual-Band, Wi-Fi 5, PCIe Wireless Adapter
ASUS AiRadar intelligently strengthens wireless device connectivity using precise directional signal amplification for extended coverage, increased data-throughput speed, and enhanced stability. Wi-Fi-connection strength varies based on your environment, so the PCE-AC68 intelligently detects wireless router locations and ‘shapes’ data transmissions using three external antennas and high-powered beam-packing — assuring the fastest stable connection.
- 5th generation 802.11ac chipset gives you dual-band,2.4GHz/5GHz for up to super-fast 1.30Gbps
- Flexible extended antenna placement helps you pinpoint the best reception in your environment.
- Instant Wi-Fi upgrade for your desktop: no more messy Ethernet cables needed.
- High-power design clears up dead zones with 150% greater coverage
- Custom heatsink dissipates heat for more stable and reliable non-stop operation
| Network Standard | IEEE 802.11a/b/g/n/ac |
| Interface | PCI Express |
| Antenna | 3 x R SMA Antenna |
| Operating Frequency | 2.4GHz/5GHz |
| Operation Channel | 11 for N. America, 13 Europe (ETSI) |
| Product Segment | AC1900 ultimate AC performance: 600+1300Mbps |
| Data Rate | 802.11 b/g/n/ac : downlink up to 1300Mbps, uplink up to 1300Mbps (20/40/80MHz) |
| Output Power | ac mode : 18 ~22 dBm b mode : 22 dBm g mode : 19 ~22 dBm n mode : 18 ~22 dBm |
| Modulation | 64QAM, 16QAM, CCK, DQPSK, DBPSK, OFDM |
| Management | Wireless configuration connection management connection profile setup |
| Security | 64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK |
| Certificates | CE, FCC, IC |
| Dimensions | 103.3 x 68.9 x 21 mm (WxDxH) |
| Weight | 125 g (Device Only) |
| Environmental | Operating Temperature: 0 °C to 40 °C ( °F to ºF) Storage Temperature: -20 ° to 65 ° C ( °F to °F) Operating Humidity: 10 % to 90 % (Non-condensing) Storage Humidity: 10 % to 90 % (Non-condensing) |
| OS Support | Windows® 8.1 , 32bit/64bit Windows® 8 , 32bit/64bit Windows® 7 , 32bit/64bit Windows® Vista , 32bit/64bit Windows® XP , 32bit/64bit |
| Package Content | Dipole Antenna x 3 External magnetic antenna base Low Profile Bracket Support CD Warranty card Wireless LAN Adapter |
