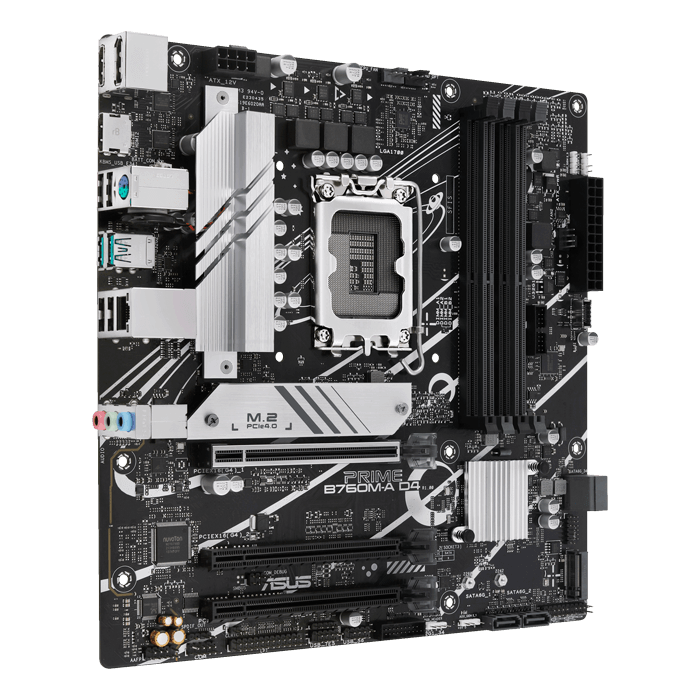

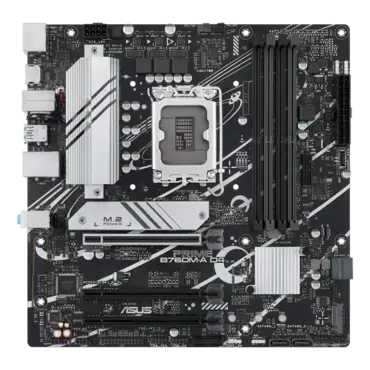

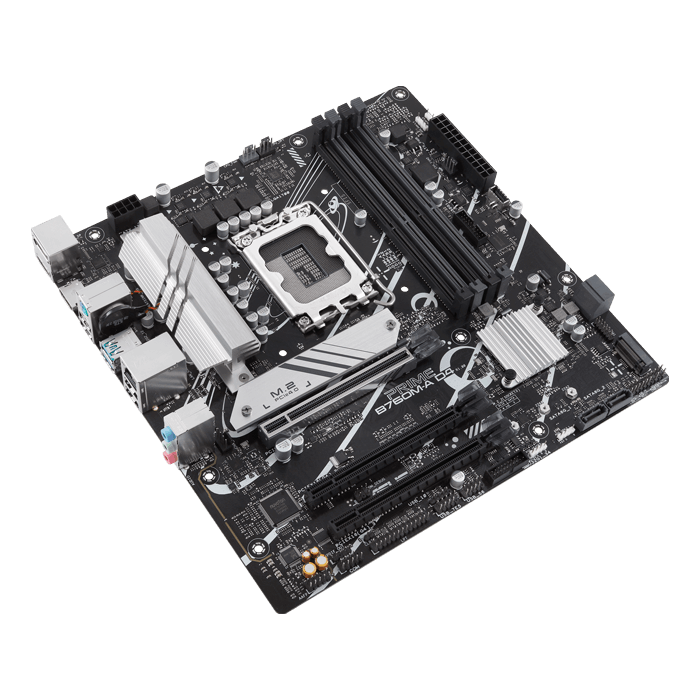

PRIME B760M-A D4, Intel® B760 Chipset, LGA 1700, microATX Motherboard
ASUS PRIME B760M-A D4 (90MB1D00-M0AAY0). The ASUS PRIME B760M-A D4 is built for productivity, with robust power design, comprehensive connectivity and intelligent tuning options to unleash the full potential of 13th Gen Intel® Core™ processors. equipped with outstanding features, including PCIe 4.0 support, two M.2 slots, Realtek 2.5Gb Ethernet, rear USB 3.2 Gen 2 ports, front USB 3.2 Gen 1 Type-C®, DisplayPort/Dual HDMI®, Addressable Gen 2 headers, Aura RGB header, Aura Sync, Q-LED Core, ASUS OptiMem II, Fan Xpert 2+, Power Saving, Armoury Crate, ASUS 5X PROTECTION III, SafeSlot Core+.
- Intel® LGA 1700 socket: Ready for 13th Gen Intel® Core™ processors & 12th Gen Intel Core™, Pentium® Gold and Celeron® Processors
- Ultrafast Connectivity: PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C®
- Comprehensive Cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
- Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
CPU | Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* |
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** | |
* Refer to www.asus.com for CPU support list. | |
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. | |
Chipset | Intel® B760 Chipset |
Memory | 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* |
Dual Channel Memory Architecture | |
Supports Intel® Extreme Memory Profile (XMP) | |
OptiMem II | |
* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. | |
Graphics | 1 x DisplayPort** |
2 x HDMI® ports*** | |
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. | |
** Supports max. 4K@60Hz as specified in DisplayPort 1.4. | |
***Supports 4K@60Hz as specified in HDMI® 2.1. | |
Expansion Slots | Intel® 13th & 12th Gen Processors |
1 x PCIe 4.0 x16 slot | |
Intel® B760 Chipset | |
1 x PCIe 4.0 x16 slot (supports x4 mode) | |
1 x PCIe 4.0 x16 slot (supports x1 mode) | |
Note: To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. | |
Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* |
Intel® 13th & 12th Gen Processors | |
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | |
Intel® B760 Chipset | |
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | |
4 x SATA 6Gb/s ports | |
* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. | |
Ethernet | 1 x Realtek 2.5Gb Ethernet |
USB | Rear USB (Total 6 ports) |
2 x USB 3.2 Gen 2 ports (2 x Type-A ) | |
4 x USB 2.0 ports (4 x Type-A) | |
Front USB (Total 10 ports) | |
2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports | |
1 x USB 3.2 Gen 1 connector (supports USB Type-C®) | |
2 x USB 2.0 headers support 4 additional USB 2.0 ports | |
1 x USB 2.0 header supports 1 additional USB 2.0 port | |
Audio |
Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback |
Audio Features | |
- Audio Shielding | |
- Premium audio capacitors | |
- Dedicated audio PCB layers | |
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. | |
Back Panel I/O Ports | 2 x USB 3.2 Gen 2 ports (2 x Type-A ) |
4 x USB 2.0 ports (4 x Type-A) | |
1 x DisplayPort | |
2 x HDMI® ports | |
1 x Realtek 2.5Gb Ethernet port | |
3 x Audio jacks | |
1 x PS/2 Keyboard/Mouse combo port | |
Internal I/O Connectors | Fan and Cooling related |
1 x 4-pin CPU Fan header | |
1 x 4-pin CPU OPT Fan header | |
2 x 4-pin Chassis Fan headers | |
Power related | |
1 x 24-pin Main Power connector | |
1 x 8-pin +12V Power connector | |
Storage related | |
2 x M.2 slots (Key M) | |
4 x SATA 6Gb/s ports | |
USB | |
2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports | |
1 x USB 3.2 Gen 1 connector (supports USB Type-C®) | |
2 x USB 2.0 headers support 4 additional USB 2.0 ports | |
1 x USB 2.0 header supports 1 additional USB 2.0 port | |
Miscellaneous | |
3 x Addressable Gen 2 headers | |
1 x Aura RGB header | |
1 x Clear CMOS header | |
1 x COM Port header | |
1 x Front Panel Audio header (AAFP) | |
1 x LPT header | |
1 x S/PDIF Out header | |
1 x SPI TPM header (14-1pin) | |
1 x 20-3 pin System Panel header with Chassis intrude function | |
Special Features | ASUS 5X PROTECTION III |
- DIGI+ VRM | |
- LANGuard | |
- Overvoltage Protection | |
- SafeSlot Core+ | |
- Stainless-Steel Back I/O | |
ASUS Q-Design | |
- Q-DIMM | |
- Q-LED Core | |
- Q-Slot | |
ASUS Thermal Solution | |
- M.2 heatsink | |
- VRM heatsink design | |
ASUS EZ DIY | |
- ProCool | |
Aura Sync | |
- Aura RGB header | |
- Addressable Gen 2 RGB headers | |
Software Features | ASUS Exclusive Software |
Armoury Crate | |
- Aura Creator | |
- Aura Sync | |
- Fan Xpert 2+ | |
- Power Saving | |
AI Suite 3 | |
- Digi+ VRM | |
- PC Cleaner | |
ASUS CPU-Z | |
Norton Deluxe (60 Days Free Trial) | |
WinRAR | |
UEFI BIOS | |
ASUS EZ DIY | |
- ASUS CrashFree BIOS 3 | |
- ASUS EZ Flash 3 | |
- ASUS UEFI BIOS EZ Mode | |
BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
Manageability | WOL by PME, PXE |
Accessories | Cables |
2 x SATA 6Gb/s cables | |
Miscellaneous | |
1 x I/O Shield | |
1 x M.2 Rubber Package | |
1 x M.2 SSD screw package | |
Documentation | |
1 x User guide | |
Operating System | Windows® 11, Windows® 10 64-bit |
Form Factor | mATX Form Factor |
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |
