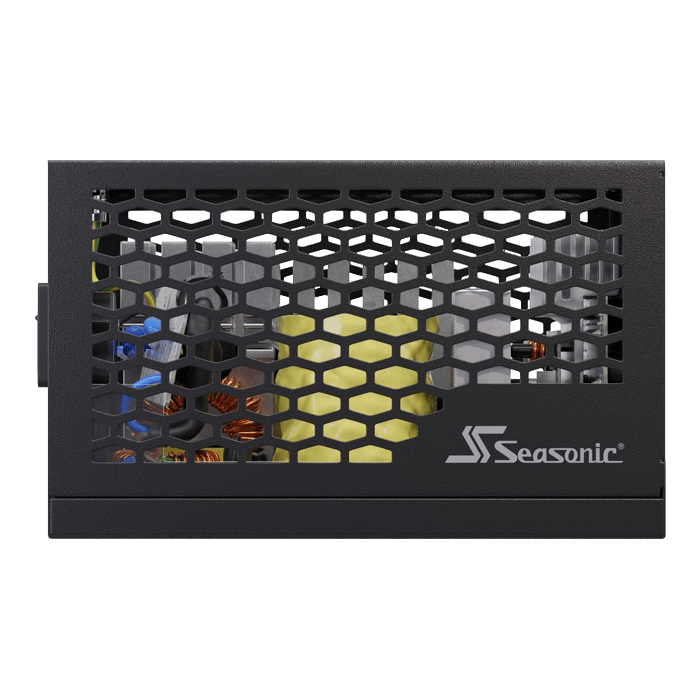

Seasonic PRIME-FANLESS-PX-500. The PRIME Fanless PX series utilizes the fanless technology, which eliminates the fan noise completely, ensuring truly quiet operation. The unit not only is rated to be 80PLUS Platinum efficient, but it also has the highest power output on the fanless power supply market at the moment. The power supply is ideal any situations that demand silence from the equipment. The high quality components inside and the innovative circuit design result in clean and stable power output. The fully modular cables allow for better cable management in the computer case.
Technical Specifications | ||||||
80PLUS® | Platinum | |||||
Cybenetics Efficiency Level | TBA | |||||
Cybenetics Noise Level | TBA | |||||
Form Factor | Intel ATX 12 V | |||||
Dimensions | 140 mm (L) x 150 mm (W) x 86 mm (H) | |||||
Fan Information | Fan Size | N/A | ||||
Fan Control | N/A | |||||
Fan Bearing | N/A | |||||
Life Expectancy | N/A | |||||
Cable Information | Modularity | Fully Modular | ||||
Cable type |
Webbed cables (MB, CPU, PCIe) Flat black cables |
|||||
Electrical Features | Operating Temperature | 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C) | ||||
MTBF @ 25 °C, excl. fan | 150,000 hours | |||||
AC Input | Full Range | |||||
Protection | OPP, OVP, UVP, OCP, OTP, SCP | |||||
Safety and Environmental | Safety and EMC | cTUVus, TUV, CB, CCC, BSMI, EAC, CE | ||||
Environmental Compliance | Energy Star, RoHS, WEEE, ErP Lot 6, REACH | |||||
Warranty | 12 Years | |||||
Power Output | ||||||
AC Input | Voltage: 100 V - 240 V | |||||
Current: 7-4 A | ||||||
Frequency: 50 Hz - 60 Hz | ||||||
DC Output | Rail | +3.3 V | +5 V | +12 V | -12 V | +5 VSB |
Maximum Power | 20 A | 20 A | 41 A | 0.3 A | 3 A | |
100 W | 492 W | 3.6 W | 15 W | |||
Total continuous power | 500 W |
