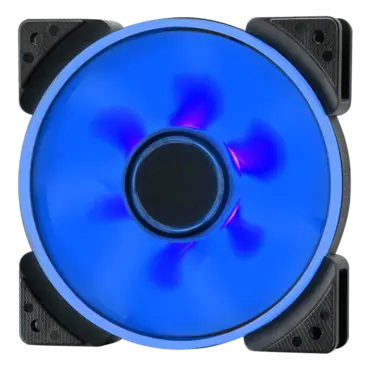

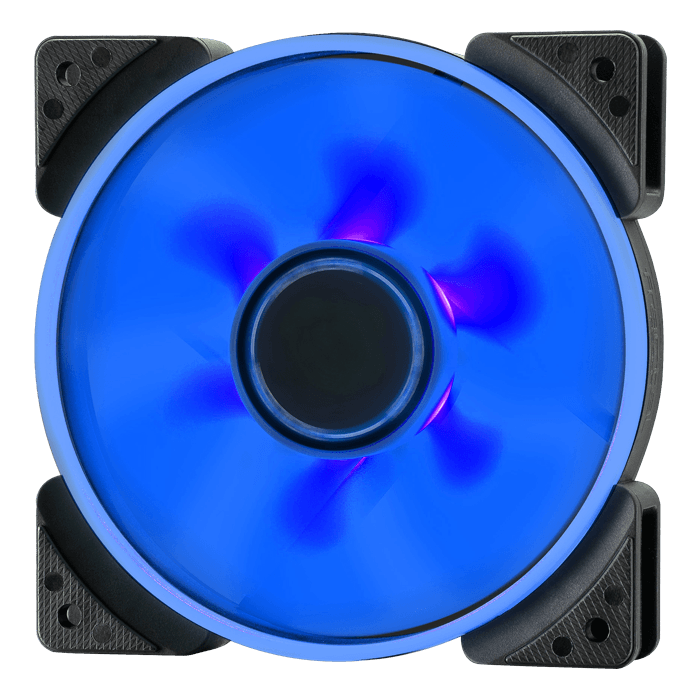

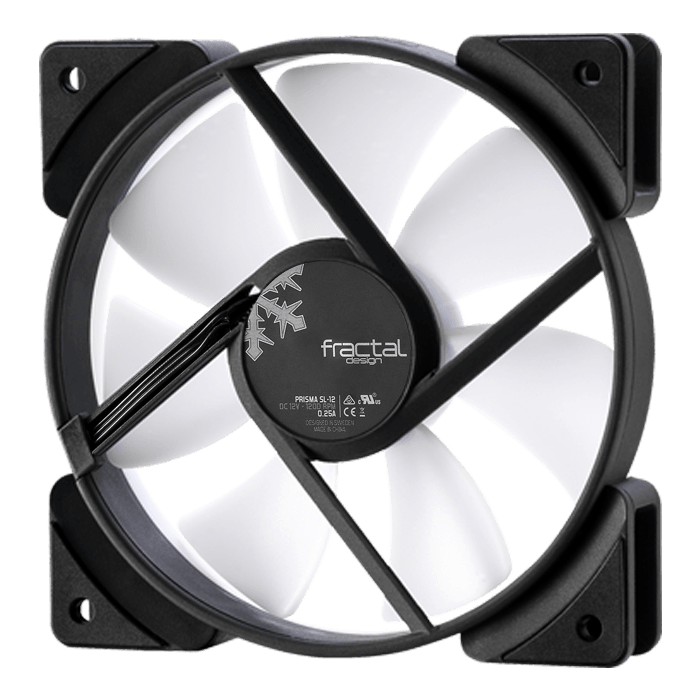

Prisma SL-12 120mm, Blue LEDs, 1200 RPM, 50.63 CFM, 19.5 dBA, Cooling Fan

Quantity:
  • SKU: 12635634
  • Manufacturer: Fractal Design
  • MPN: FD-FAN-PRI-SL12-BU
  • Availability: TEMPORARILY OUT OF STOCK
Starting At
$15.63
Quantity:
Size 120 x 120 x 25 mm
Blade color Semi-opaque white
Frame color Black
LED type Single color
Screw hole pattern 105 x 105 mm
Power connector 3-pin
Bearing LLS
Number of blades 7
Rotational speed 1200 RPM
Noise level 19.5 dB(A)
Airflow (CFM) 50.63 CFM
Airflow (m3/h) 86.02 m3/h
Static pressure 1.27 mmH2O
Fan input power 3.0W
Fan max input current 0.25A
Fan input voltage 12V
Fan starting voltage 6V
LED input power 1.80W
LED max input current 0.15A
LED input voltage 12V
MTBF 100,000 hrs.
Fan weight 138 g
Package weight 162 g
Cable length 500 mm ±10 mm
Cable type Black ribbon cable
Packaging dimensions (Including hanging tab) 182 x 122 x 26 mm
Packaging dimensions (Excluding hanging tab) 147 x 122 x 26 mm
