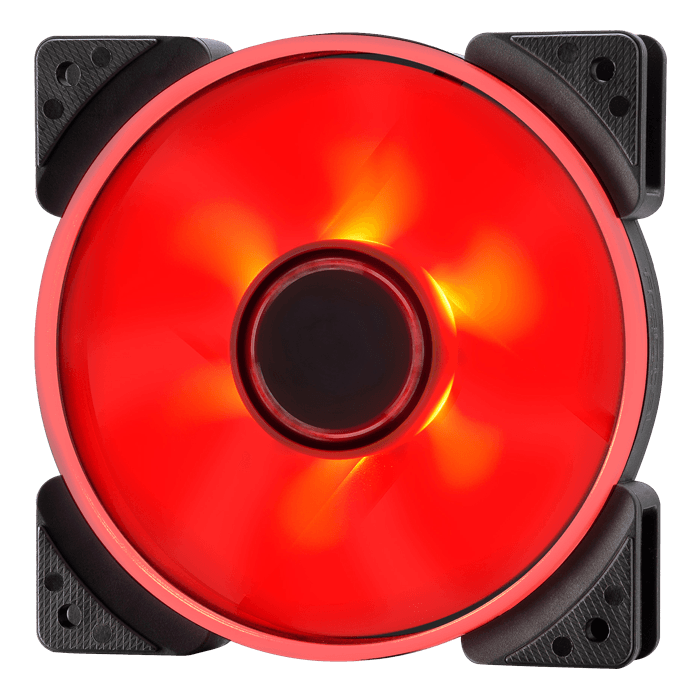

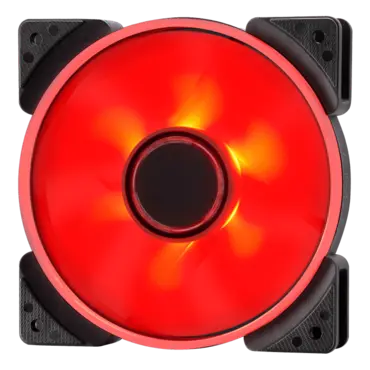

Prisma SL-14 140mm, Red LEDs, 1000 RPM, 63.33 CFM, 19.4 dBA, Cooling Fan

SKU: 12635813

Manufacturer: Fractal Design

MPN: FD-FAN-PRI-SL14-RD

Availability: Available


Price: $17.97
or as low as $1/month
Quantity:
Size 140 x 140 x 25 mm
Blade color Semi-opaque white
Frame color Black
LED type Single color
Screw hole pattern 125 x 125 mm
Power connector 3-pin
Bearing LLS
Number of blades 7
Rotational speed 1000 RPM
Noise level 19.4 dB(A)
Airflow (CFM) 63.33 CFM
Airflow (m3/h) 107.60 m3/h
Static pressure 1.07 mmH2O
Fan input power 3.0W
Fan max input current 0.25A
Fan input voltage 12V
Fan starting voltage 6V
LED input power 1.80W
LED max input current 0.15A
LED input voltage 12V
MTBF 100,000 hrs
Fan weight 168 g
Package weight 194 g
Cable length 500 mm ±10 mm
Cable type Black ribbon cable
Packaging dimensions (Including hanging tab) 202 x 142 x 26 mm
Packaging dimensions (Excluding hanging tab) 167 x 142 x 26 mm
