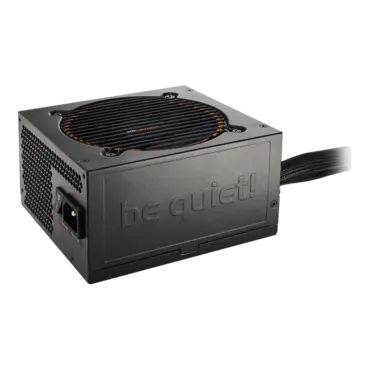

Pure Power 11 CM, 80 PLUS Gold 700W, Semi Modular, ATX Power Supply

SKU: 12631533

Manufacturer: Be Quiet!

MPN: BN630

Availability: Available


Price: $111.84
or as low as $4/month
Quantity:

PURE POWER 11 700W CM

EXCEPTIONALLY QUIET, SUPERIOR RELIABILITY, GREAT VALUE

Pure Power 11 700W CM offers peerless dependability and best-in-class features. Whether you’re assembling a very quiet system, upgrading an existing PC, or building a multi-GPU gaming system, your build will benefit from this PSU that simply has the best combination of features at a very popular price.

  • 80 PLUS® Gold efficiency (up to 92%)
  • Two strong 12V-rails
  • Stable operation thanks to Active Clamp and Synchronous Rectifier (SR) technology
  • DC-to-DC conversion for even tighter voltage regulation under heavy cross-loading conditions
  • Silence-optimized 120mm be quiet! fan
  • Full suite of top safety features
  • 5-year manufacturer’s warranty
General data
Model Pure Power 11 | 700W CM
Continuous power (W) 700
Peak power (W) 750
Form factor ATX 12V Version 2.4
Form factor EPS 12V Version 2.92
Modular cable management
Topology Active Clamp + SR + DC/DC
Wire-free design (DC-side) -
Voltage (Vac) 100 - 240
Frequency (Hz) 50 - 60
Input current (A) 10 / 5
PFC active
Power factor at 100% load >0.99
Compliant to Intel C6/C7
Power consumption in standby (W) 0.13
Average life time (h / 25°C) 100000
Operating temperature up to (°C) 40
Output
12V rails (multi-rail operation) 2
12V single rail operation -
Overclocking key -
+3.3V (A) 25
+5V (A) 20
+12V1 (A) 36
+12V2 (A) 30
+12V3 (A) -
+12V4 (A) -
+12V5 (A) -
+12V6 (A) -
-12V (A) 0.3
+5Vsb (A) 3
Max. combined power 12V (W) 672
Max. combined power 3.3V + 5V (W) 150
Hold-up time (ms @ 100%) 24
Fan / Cooling technology
Fan type Silence-optimized be quiet! fan
+SilentWings -
Motor technology 4-pole fan motor
Bearing technology Rifle
Fan size (mm) 120
Max. fan speed (rpm), temperature-dependent 1.380
Temperature control for case fans -
dB(A) at 20% load 11.2
dB(A) at 50% load 11.5
dB(A) at 100% load 24.6
Protection
OCP (over current protection)
OVP (over voltage protection)
UVP (under voltage protection)
SCP (short circuit protection)
OTP (over temperature protection)
OPP (over power protection)
Safety certification
CE
CB
TÜV
Nemko (N) -
Semko (S) -
Fimko (FI) -
Demko (D) -
FCC
cRUus -
cTUVus
RCM (Australia)
BSMI
CU (Russia)
CCC
Eco / Efficiency
80PLUS certification Gold
Efficiency (%) at 230V, 20% load 89.8
Efficiency (%) at 230V, 50% load 92.0
Efficiency (%) at 230V, 100% load 90.4
Environmental directives
ENERGY STAR 6.1
ErP
WEEE
RoHS
Cable management / Connectors
Multi-GPU ready
Modular cable management
Fully modular -
Sleeved cables
Flat cables PCIe, drives
Cable length to mainboard (cm) 55
Cable length to first connector (cm) 50
Maximum cable length (cm) 95
All-in-one cable (SATA/PATA/FDD)
No. of cables 7
ATX-Motherboard (20+4-pin) 1
P8 (CPU) -
P4+4 (CPU) 1
P4 (CPU) -
PCI-E 6-pin (GPU) -
PCI-E 6+2-pin (GPU) 4
PATA 4-pin 3
SATA 15-pin (HDD, Drives) 6
FDD (Floppy) 1
External fan connectors -
Casing
Dimensions without cable (L x W x D), (mm) 160 x 150 x 86
Weight (kg) 2.10
Color Black
Accessories
Thumb screws -
Screws
Cable ties
Velcro cable ties -
Box/Bag for PSU/Cables -
User manual languages EN, DE, FR, PL, ES, RU
OCK slot bracket with switch / OCK jumper -
SFX-to-ATX adapter bracket -
Service
Warranty (Years) 5
Express replacement service in first year -
International hotline / free of charge ✓ / DE, FR
