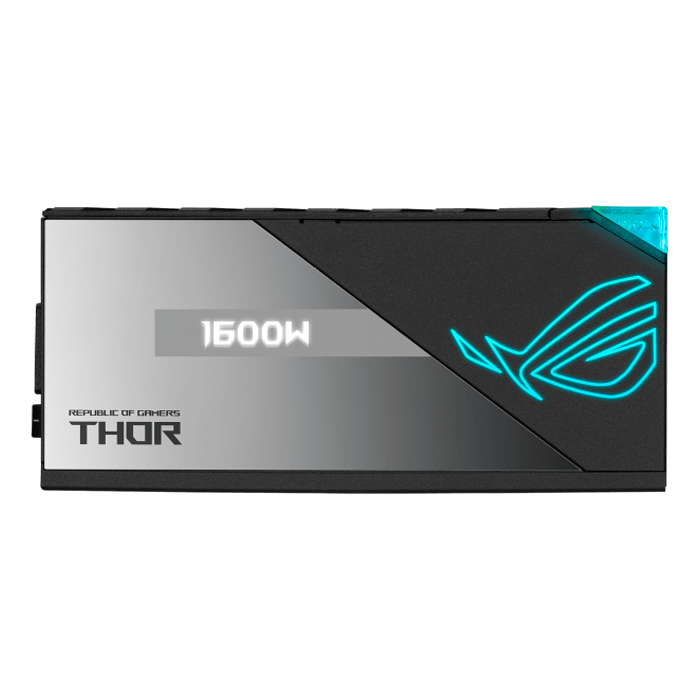

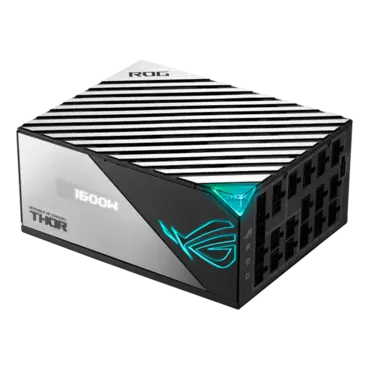

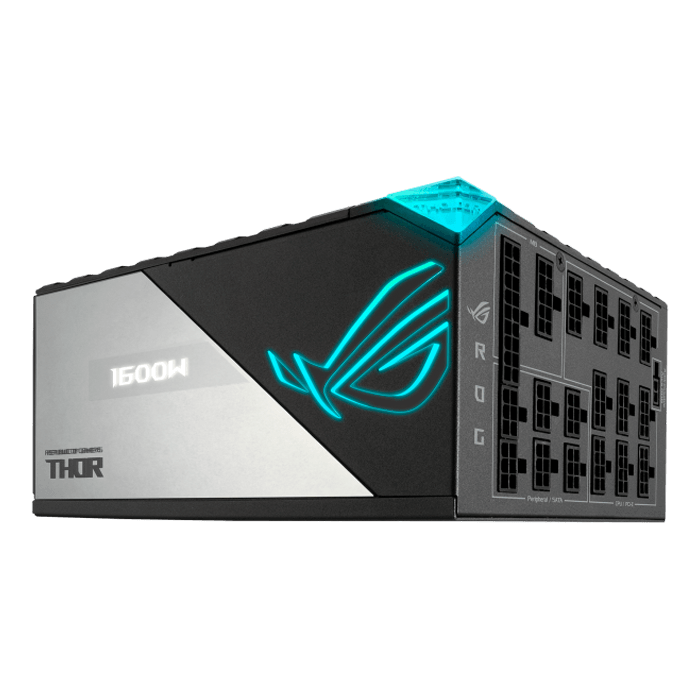

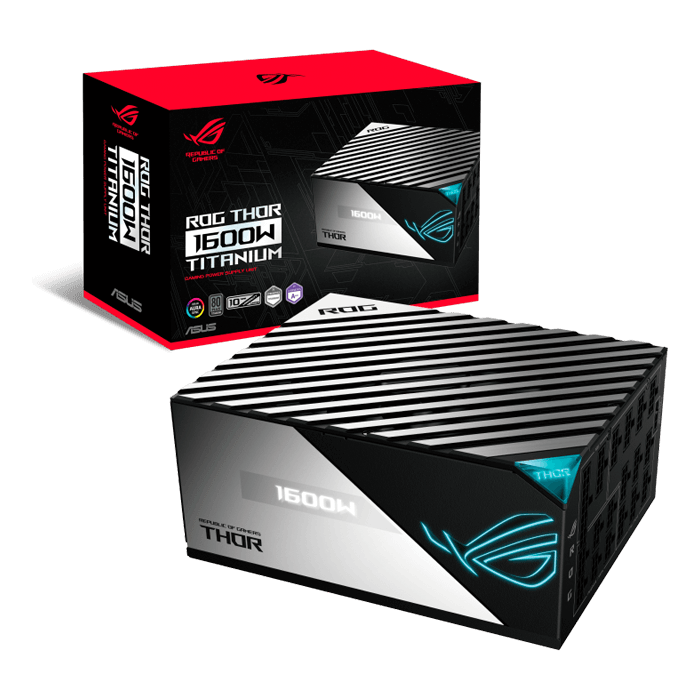

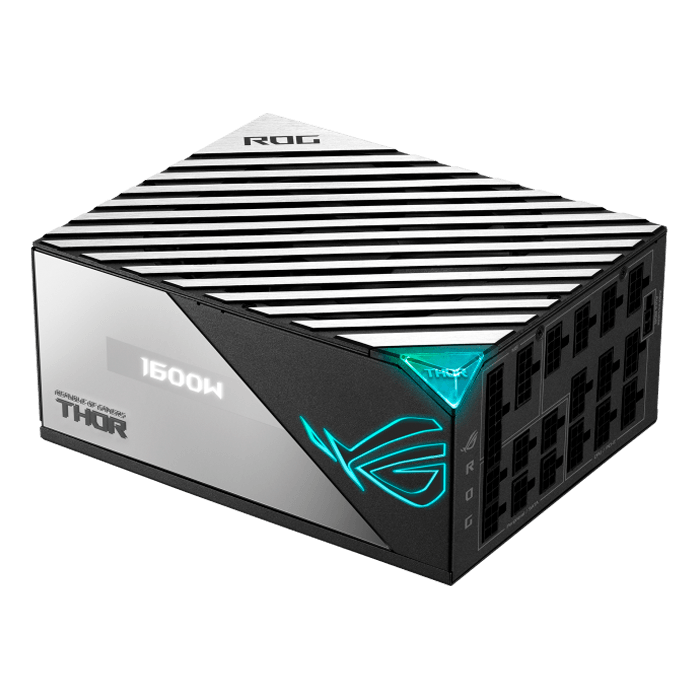

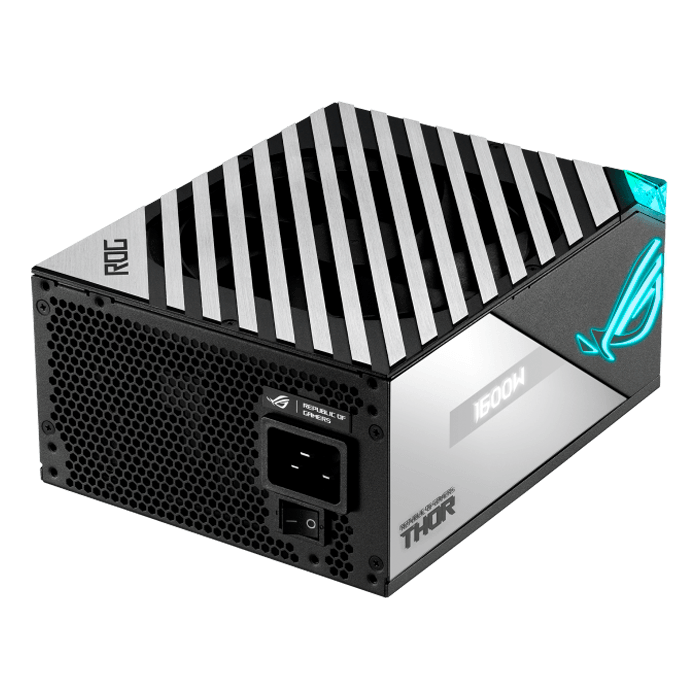

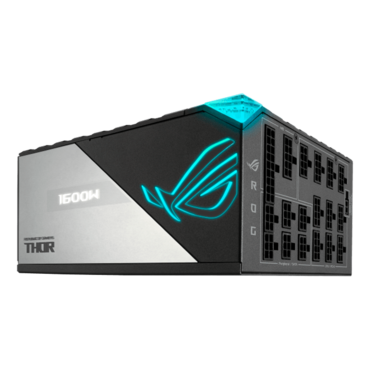

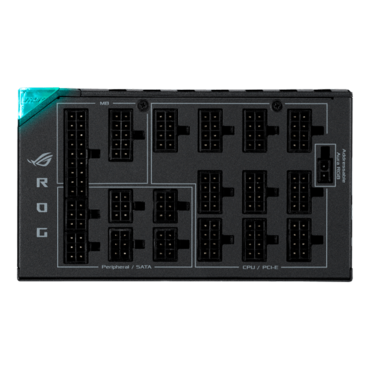

ROG-THOR-1600T-GAMING, 80 PLUS Titanium 1600W, Fully Modular, ATX Power Supply
Quantity:
- SKU: 15607247
- Manufacturer: ASUS
- MPN: ROG-THOR-1600T-GAMING
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$721.14
ROG-THOR-1600T-GAMING, 80 PLUS Titanium 1600W, Fully Modular, ATX Power Supply
ASUS ROG-THOR-1600T-GAMING (90YE00K0-B0AA00). The ultimate expression of Thor wields a redesigned core that brings higher power efficiency, improved cooling, and lower noise to monstrous rigs that slay everything in their path.
- Built with 100% Japanese capacitors and other premium components to achieve 80 Plus Titanium Certification.
- ROG heatsinks cover critical components, delivering lower temperatures and reduced noise.
- A 135mm Axial-tech fan with PWM control delivers lower noise and keeps thermals in check.
- OLED display monitors power draw in real time.
- Gallium nitride MOSFETs boast lower switching losses and improved efficiency compared to conventional silicon transistors
| Dimensions | 190 x 150 x 86 mm |
| Efficiency | 80Plus Titanium |
| Protection Features | OPP/OVP/UVP/SCP/OCP/OTP |
| Hazardous Materials | ROHS |
| AC Input Range | 100-240Vac |
| Thermal Features | ROG Thermal Solution |
| DC Output Voltage | +3.3V +5V +12V -12V +5Vsb |
| Maximum Load | 20A 20A 133.3A 0.3A 3A |
| Combined Load | 100W 100W 1600W 3.6W 15W |
| Total Output | 1600W |

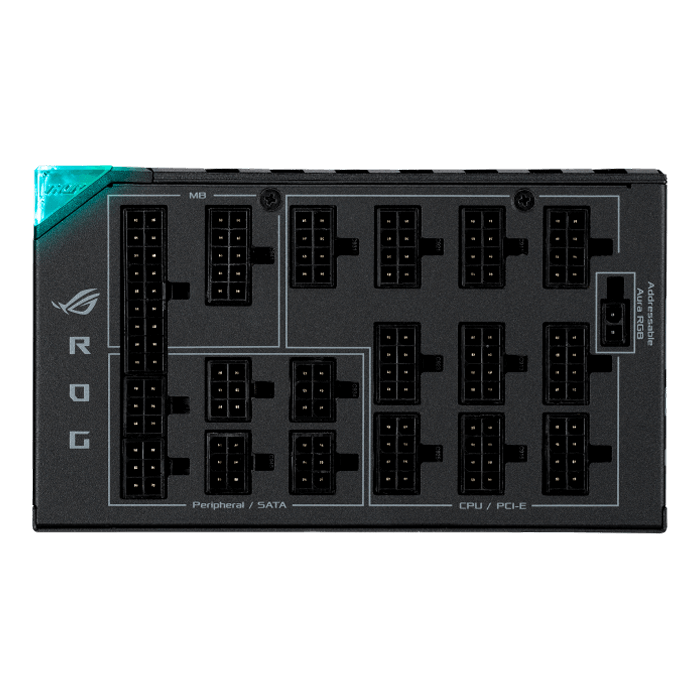

| Connectors | MB 24/20-pin x 1 CPU 4+4-pin x 2 PCI-E 16-pin x 1 PCI-E 6+2-pin x 10 SATA x 12 PERIPHERAL x 6 |
| Package Contents | ower Cord x 1 Motherboard Power Cable x 1 (600mm) CPU Cable x 2 (650mm) 16-pin PCI-E Cable x 1 (675mm) PCI-E 1-to-1 Cable x 6 (675mm) PCI-E 1-to-2 Cable x 2 (675+75mm) SATA 1-to-4 Cable x 3 (400+120+120+120mm) Peripheral 1-to-2 Cable x3 (450+120mm) Addressable RGB Cable x 1 (800mm) ROG sticker x 1 ROG cable tie x 6 Chassis Screws Package x 1 Cable Tie x 12 User Manual x 1 |
| Weight | 2.69kg (single PSU) |
| AURA SYNC | ARGB |
| 0dB Fan Button | No |
| Cybenetics Noise Level Certification | A++ |
