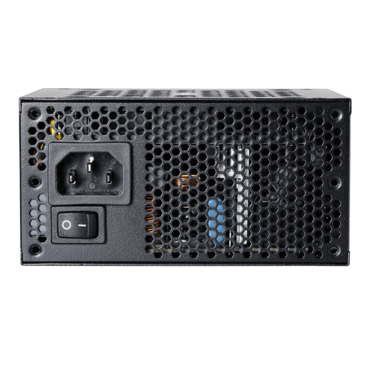

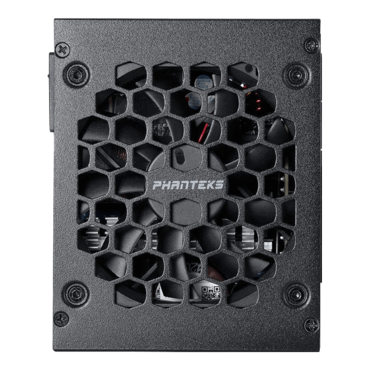

Revolt, 80 PLUS Gold 750W, Fully Modular, SFX Power Supply

  • SKU: 15147351
  • Manufacturer: PHANTEKS
  • MPN: PH-P750GSF
Starting At
80PLUS Gold
Power 750W
Dimension (LxWxH) 125 x 100 x 63.5 mm / 3.9 x 5.9 x 3.4 in
Color Black
Output Protection OPP (Over Power Protection)
OVP (Over Voltage Protection)
UVP (Undervoltage protection)
SCP (Short CircuitProtection)
OCP (Over Current Protectiion)
OTP (Over Temperature Protection)
No-Load protection
Reset Protection
Back Plate Fully modular
MTBF >100.000 hrs at 25°C, excluding DC Fan
Storage Temperature -40°C to 85°C
Storage Humidity To 95% relative humidity (non-condensing)
Operating Humidity To 85% relative humidity (non-condensing)
Environmental Operating Temp. 0 to 50 OC (The rated powerwilldeviate from 100% to 80% from 400Cto 500C Linearly)
Package Dimension (LxWxH) 310 x 180 x 115 mm / 12.2 x 7.1 x 4.5 in
Package Content

1x PH-P750GSF 80+ Gold fully modular Power Supply
1x Power cord
1x SFX to ATX bracket

1x 18Pin+10Pin MB 24P (350mm)
2x 8pin CPU 4+4P (400mm)
2x8pin PCI-E 6+2P/6+2P (400mm/100mm)
2x 6pin 4SATA 90° (450mm-150/100/100/100mm)
1x 6pin 3SATA 90° + 1Molex 180" (450mm-150/100/100/100mm)

1x User's manual
1x Installation guide
1x PSU Bag
1x Cable Bag
1x Zip tie bag
1x Screw Pack
1x Velcro Pack

Warranty 10 years limited* ( )
Model No. PH-P750GSF
UPC code 886523500926
PSU Output Connector 1x 18+10pin > MB 24pin
4x 8pin > CPU 8pin/PCI-E 8pin
3x 6pin > SATA/Molex
DC Output 750W
AC Input 100-240Vac/10-5A, 50-60GHz
Output Voltage 12V 5V 3.3V -12V 5VSB
Max Current 62A 20A 20A 0.3A 3A
Max Capacity 744W 130W 36W 15W
