Ridge, No PSU, Mini-ITX, Black, Slim Case

Quantity:
  • SKU: 15310646
  • Manufacturer: Fractal Design
  • MPN: FD-C-RID1N-01
  • Availability: TEMPORARILY OUT OF STOCK
Starting At
$156.83
Quantity:
Ridge, No PSU, Mini-ITX, Black, Slim Case

An uncluttered, small form factor case designed to integrate seamlessly into your living space and daily rituals. An evolution of the slimline format, Ridge was developed in collaboration with gaming and entertainment enthusiasts to subtly improve their homes and enhance the small form factor PC experience.

Specifications
Dedicated 2.5" drive mounts 4x included, 4x positions total
Expansion slots 3-slot
Front interface 1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, 1x Combo jack – Audio/Microphone, power button, power LED
Total fan mounts 2x 120/140 mm and 3x 80 mm

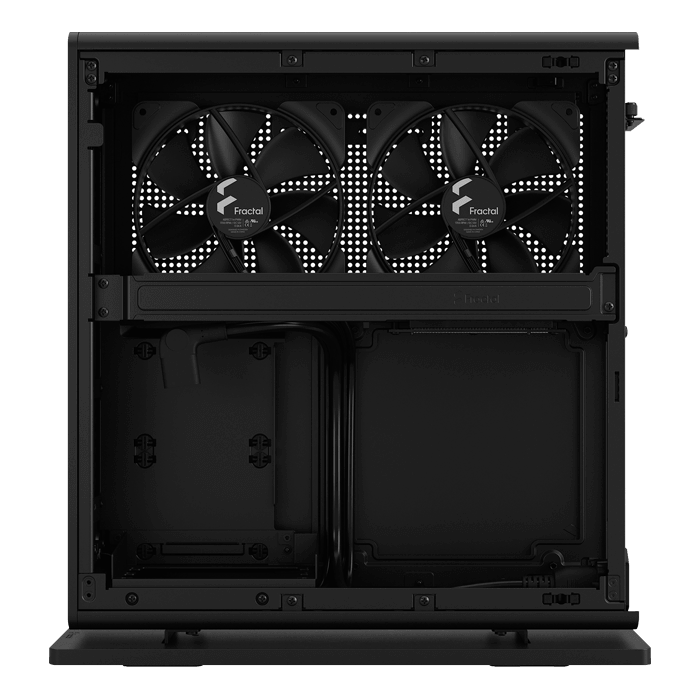

Side fan 2x 120/140 mm (2x PWM Aspect fan 140 mm included)
Top fan 3x 80 mm (not included)
Cable routing space 13,8 mm (behind PSU)
Tool-less slide with thumbscrew lock Side panels
Captive thumbscrews Side panels
Left side panel Steel
Right side panel Steel
Compatibility
Motherboard compatibility Mini ITX
Power supply type SFX, SFX-L
Side radiator 120 mm when ≤175mm long GPUs are installed (280 mm without GPU)
PSU max length SFX-L
GPU max length 325 mm with SSD installed. 335 mm without SSD installed.
GPU max height 125 mm with top fan(s) installed, 137 mm without top fans
GPU max thickness 57 mm with 2x 140 mm fans installed, 82 mm without side fans
CPU cooler max height 70 mm
Dimensions
Case dimensions (LxWxH) Vertical: 74 x 395,4 x 110 mm Horizontal: 360 x 115 x 375 mm
Case dimensions w/o feet/protrusions/screws 355 x 375 x 94,6 mm
Net weight 4.3 kg
Package dimensions (LxWxH) 426 x 167 x 431 mm
Gross weight 5.5 kg
Volume 12.6 liter
Other
Package contents Case, Accessory box, Manual
SKU Black: FD-C-RID1N-01
EAN Black: 7340172703969
UPC Black: 843276103965
JAN Black: 4537694302494
Warranty 2 Years
