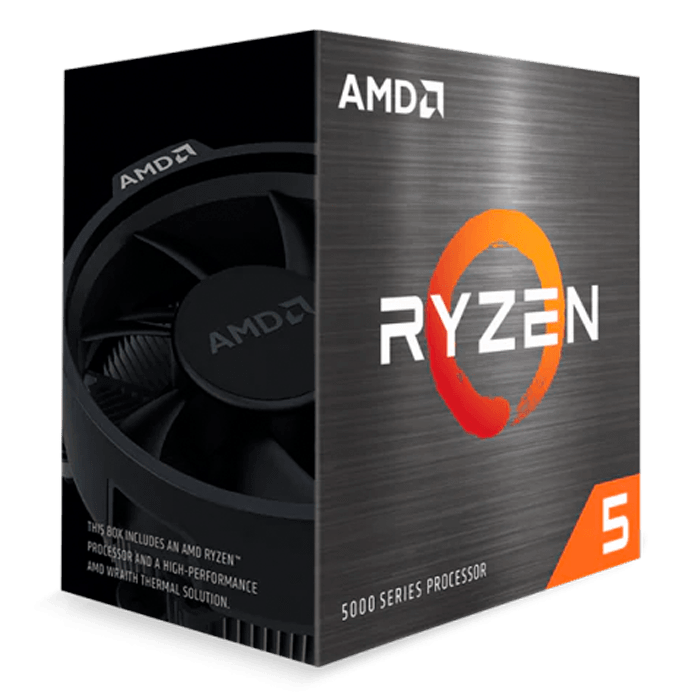

Ryzen™ 5 5500GT 6-Core 3.6 - 4.4GHz Turbo, Radeon™ Graphics, AM4, 65W TDP, Retail Processor

Quantity:
  • SKU: 17321505
  • Manufacturer: AMD
  • MPN: 100-100001489BOX
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$148.83
Quantity:
General Specifications
Platform Boxed Processor
Market Segment Mainstream Desktop
Product Family AMD Ryzen™ Processors
Product Line AMD Ryzen™ 5 5000 G-Series Desktop Processors with Radeon™ Graphics
Consumer Use Yes
Commercial Use No
Regional Availability Global, China, NA, EMEA, APJ, LATAM
Former Codename "Cezanne"
Architecture "Zen 3"
# of CPU Cores 6
Multithreading (SMT) Yes
# of Threads 12
Max. Boost Clock Up to 4.4GHz
Base Clock 3.6GHz
L1 Cache 384KB
L2 Cache 3MB
L3 Cache 16MB
Default TDP 65W
AMD Configurable TDP (cTDP) 45-65W
Processor Technology for CPU Cores TSMC 7nm FinFET
CPU Compute Die (CCD) Size 180mm²
Package Die Count 1
Unlocked for Overclocking Yes
CPU Socket AM4
Thermal Solution (PIB) AMD Wraith Stealth
Thermal Solution (MPK) AMD Wraith Stealth
Max. Operating Temperature (Tjmax) 95°C
Launch Date
*OS Support Windows 11 - 64-Bit Edition
Windows 10 - 64-Bit Edition
RHEL x86 64-Bit
Ubuntu x86 64-Bit
*Operating System (OS) support will vary by manufacturer.
Connectivity
PCI Express® Version PCIe® 3.0
NVMe Support Boot, RAID0, RAID1, RAID10
System Memory Type DDR4
Memory Channels 2
Max. Memory 128GB
System Memory Subtype UDIMM
Max Memory Speed 2x1R

DDR4-3200


2x2R

2x2R DDR4-3200


4x1R

DDR4-2933


4x2R

DDR4-2667

Graphics Capabilities
Integrated Graphics Yes
Graphics Model Radeon™ Graphics
Graphics Core Count 7
Graphics Frequency 1900 MHz
Product IDs
Product ID Boxed 100-100001489BOX
Product ID Tray 100-000001489
Product ID MPK 100-100001489MPK
