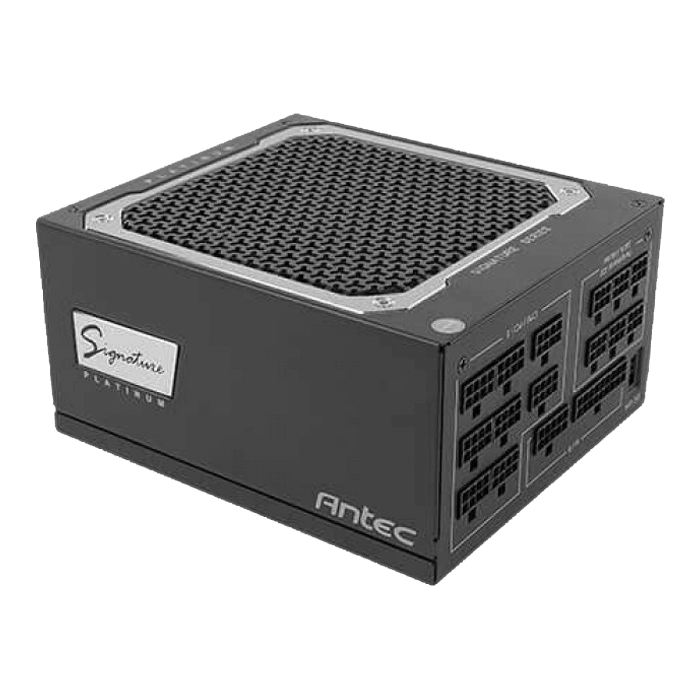

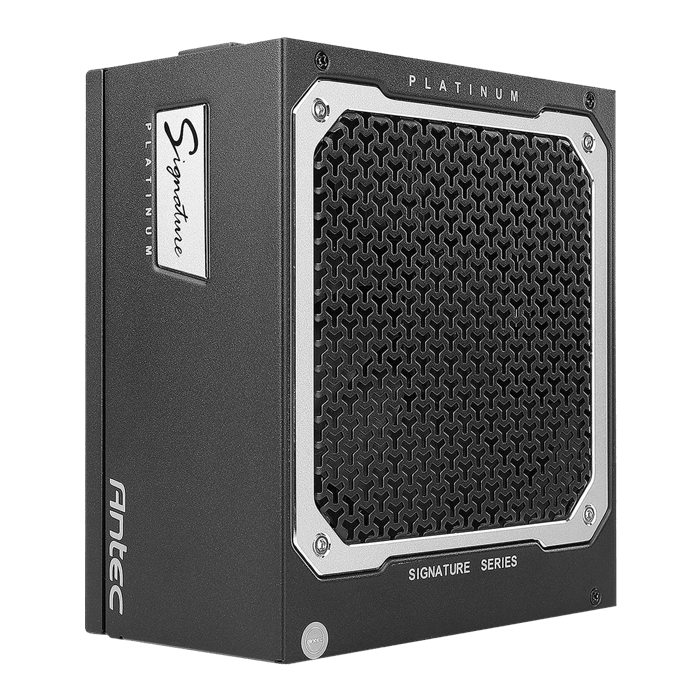

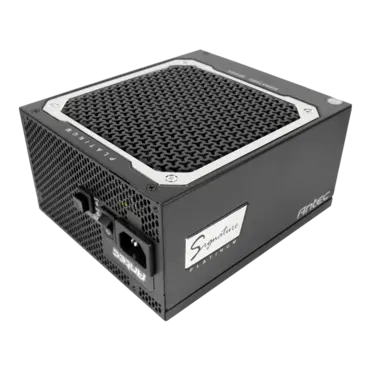

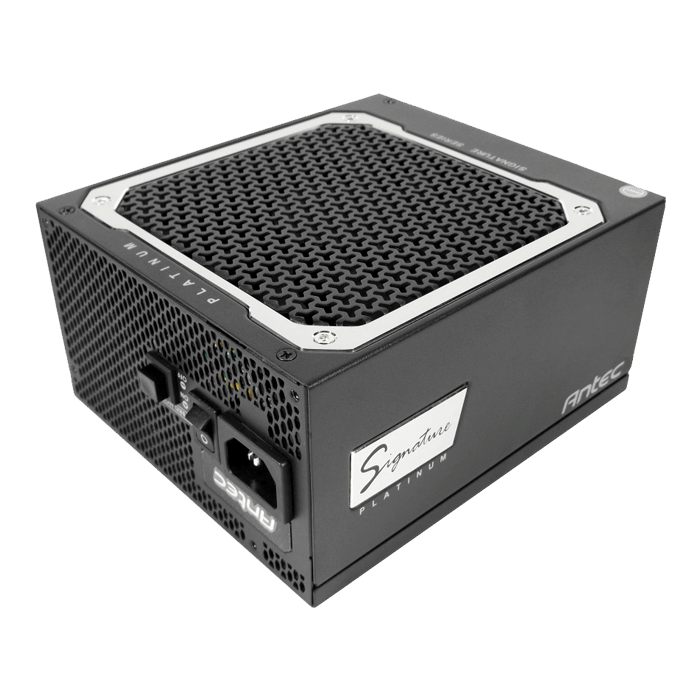

SP1300, 80 PLUS Platinum 1300W, Fully Modular, ATX Power Supply
Quantity:
- SKU: 13515393
- Manufacturer: ANTEC
- MPN: X8000A506-18
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$331.05
| Model | X8000A506-18 |
| Type | ATX |
| Modular | Fully |
| Dimension (W x L x H) | 150 x 170 x 86mm |
| Warranty | 10 years |
| Input Voltage | 100-240 |
| Input Current | 15A ~ 7.5A |
| Input Frequency Range | 47Hz ~ 63Hz |
| PFC |
APFC PFC at half / full load: >0.95 at AC 110v 60Hz(typical) >0.90 at AC 230v 50Hz(typical) |
| Power Good Signal | 100 ~ 500mS |
| Efficiency |
At 20% / 50% / 100% load AC 115V internal, the power efficiency should be at least 90% / 92% / 89%. |
| Protection | OCP / OVP / UVP / SCP / OPP / OTP / SIP / NLO |
| Output Capacity | 1300W |
| Operation Temperature | 0 ~ 40°C |
| Regulatory | CB, CE, FCC, BSMI, TUV, cTUVus, 3C, KC, RCM |
| Fan | 135 x 135 x 25(mm) FDB Silent Fan |
| Certifications | 80 Plus Platinum |
| Connector | 1 x MB 24(20+4) Pin |
| 2 x 8(4+4) Pin EPS 12V | |
| 12 x 8(6+2) Pin PCI-E | |
| 14 x SATA | |
| 5 x Molex | |
| 1 x FDD | |
| UPC# |
0-761345-11705-0 SP1300 0-761345-11706-7 SP1300 AU 0-761345-11707-4 SP1300 EC 0-761345-11708-1 SP1300 GB 0-761345-11709-8 SP1300 JP |
| Net Weight | 2.12 Kgs |
| Gross Weight | 4.05 Kgs |
