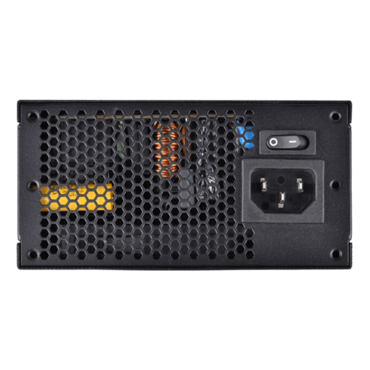

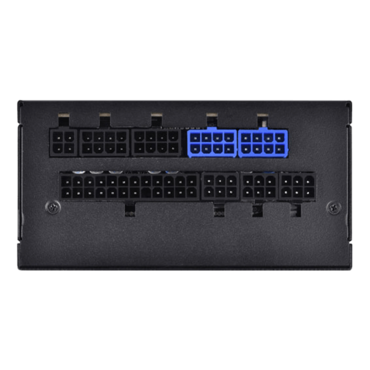

SX700-PT, 80 PLUS Platinum 700W, Fully Modular, SFX Power Supply
Quantity:
- SKU: 13352839
- Manufacturer: SILVERSTONE
- MPN: SX700-PT
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$175.95
- Support standard SFX form factor
- Silent running 92mm FDB fan with 18 dBA minimum
- All Japanese capacitors
- High efficiency with 80 PLUS Platinum certification
- Class-leading single +12V rail
- Strict ±3% voltage regulation and low ripple & noise
- 100% modular cables
- All cable with flexible flat arrays
| Model No. | SST-SX700-PT |
| Max. DC Output | 700W |
| Power density | 882W per liter |
| Color | Black(Lead-Free Paint) |
| Combined +3.3V & +5V | 110W |
| Combined +12V | 700W |
| Input Voltage | 90V ~ 264V |
| Input Frequency Range | 47Hz ~ 63Hz |
| PFC | Active PFC(PF>0.9 at full load) |
| Efficiency | 87% ~ 90% at 20% ~ 100% loading |
| MTBF | 100,000 hours |
| Operating temperature | 0°C ~ 40°C |
| Protection | Over current protection
Over power protection Over voltage protection Short circuit protection Under voltage protection Over temperature protection |

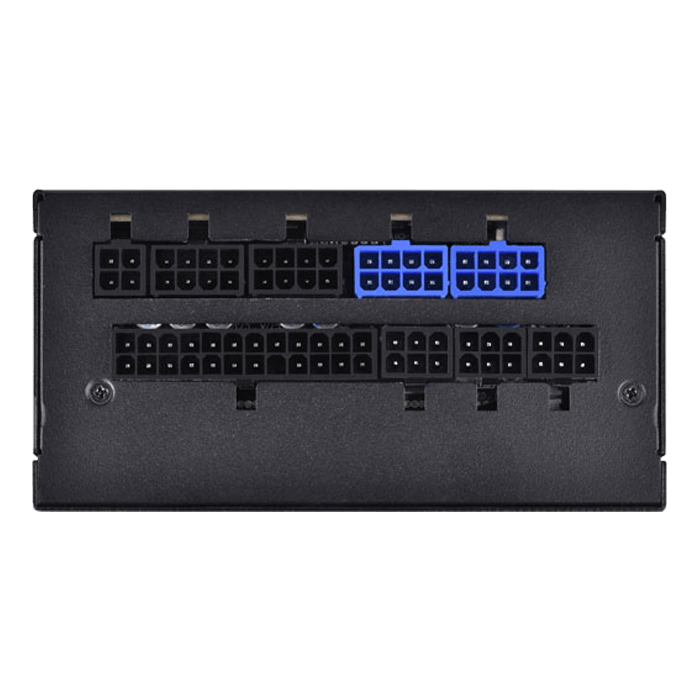

| Connectors | 1 x 24 / 20-Pin motherboard connector (300mm)
1 x 8 / 4-Pin EPS / ATX 12V connector (400mm) 1 x 8 / 4-Pin EPS / ATX 12V connector (550mm) 2 x 8 / 6-Pin PCIE connector (400mm / 150mm) 2 x 8 / 6-Pin PCIE connector (550mm / 150mm) 6 x SATA connector ("300mm / 220mm / 100mm" x 2) 3 x 4-Pin Peripheral connector (300mm / 200mm / 200mm) 1 x 4-Pin Floppy connector (100mm) |
| Cooling System | Single 92mm FDB fan |
| Form factor | SFX |
| Noise Level | 18 dBA minimum |
| Dimension | 125 mm (W) x 63.5 mm (H) x 100 mm (D)
4.92" (W) x 2.5" (H) x 3.94" (D) |
| Weight | 0.96 Kg |
| Certification | 80 PLUS Platinum |
| Other | GPU Support list
Compatible with ATX12V v2.4 |
| Load Range | ||||||||||||||||||||||||||||||||||||||||||
|
