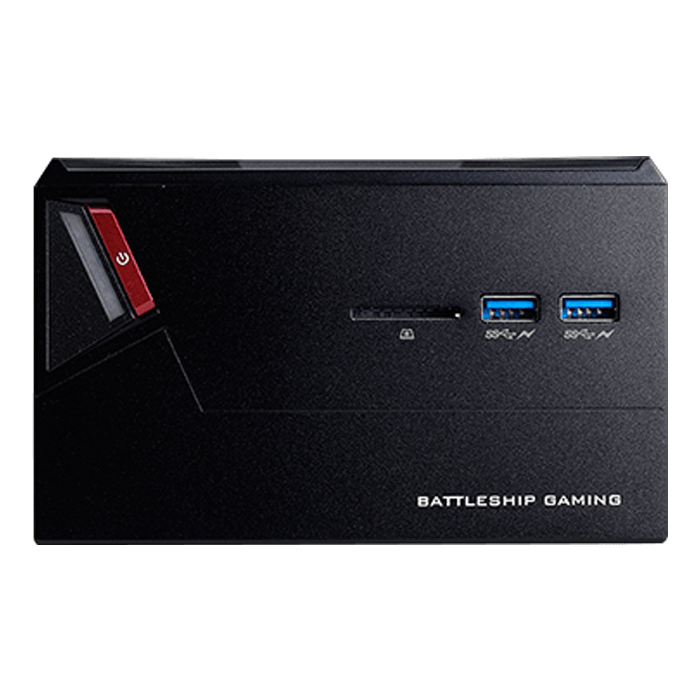

Shuttle X1 (DKA1GH7), Intel Core i7-7700HQ, 2x DDR4 SO-DIMM (2 x 8GB pre-installed), M.2 (256GB pre-installed), 2.5" HDD/SSD, NVIDIA® GeForce GTX 1060 3GB, Mini PC Barebone

SKU: 11501142

Manufacturer: SHUTTLE

MPN: DKA1GH7

Availability: Low Stock


Price: $1,497.56
or as low as $132/month
Quantity:
FORM FACTOR Shuttle Small Form Factor
PROCESSOR Intel® Core® i7-7700HQ
CHIPSET HM175
MEMORY DDR4-2400 MHz SODIMM x2
16GB per DIMM (MAX. 32GB)
VIDEO OUTPUT (1) DisplayPort+(3)HDMI+(1)Type-C Supports five displays
AUDIO Realtek ALC269Q 2Channel HD
ETHERNET RTL8111G-CG
10Mb/s, 100Mb/s and 1000Mb/s operation
Supports Wake-On-LAN
Intel 3165 802.11 a/b/g/n/ac WLAN module
STORAGE INTERFACE 6.0Gb/s bandwidth SATA3
BACK PANEL (2) USB 3.0
(4) USB 2.0
(1) RJ-45 10/100/1000 Ethernet
(1) Type-C (support data transmission and display/audio function)
(3) HDMI 1.4
(1) DisplayPort
(1) DC in jack
(1) Kensington lock
(1) Combo Jack 3.5mm for external Microphone and Headphone
DRIVE BAYS (1) M.2 2280 M Key socket for SSD
(1) 2.5'HDD/SSD Bay
DIMENSIONS 143(L)x143(W)x87(H) mm
POWER Input : 100 - 240V AC
Output : 19.5V/9.23A 180W adapter
ACCESSORIES (1) Power cord
(1) Power adapter
(1) Driver DVD
(1) Quick start guide
(1) HDD cable and screws (optional)
EXPANSION SLOT (1) M.2 2230 A,E Key socket for WLAN module
OS SUPPORT Windows 10
